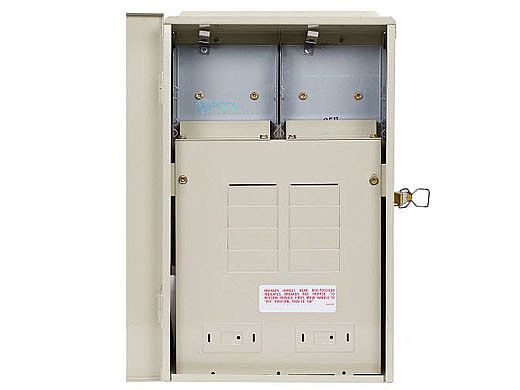

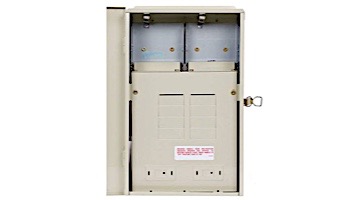

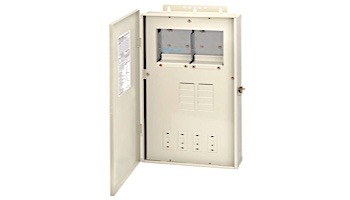

Can be used as a load center only, or add mechanisms or wiring devices for complete control systems.



Specifications PE30000T3
Load Center Ratings	80 A, 120 VAC, 80 A, 208 VAC Single Phase, 80 A, 240 VAC
Input Voltages Display	120-240 VAC, 50/60 Hz
Number of Circuits	3
Switch Type	3-SPST
Heater Protection Switch	No
Auxiliary Switch	2 A, 24 VAC
Motor	17 FLA, 120/240 VAC, 50/60 Hz 80 LRA, 120/240 VAC, 50/60 Hz
Resistive	17 A, 120/240 VAC, 50/60 Hz
Tungsten	5 A, 120/240 VAC, 50/60 Hz

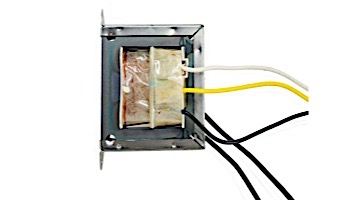

Transformer Input Voltage	120 VAC, 60 Hz
Transformer (W)	300
Number of Breaker Knockouts	8
Number of Receptacle/Switch Knockouts	4
Enclosure Rating	Outdoor Type 3R Plastic
Warranty	1-year

If within the warranty period specified, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it, at its sole option, free of charge. This warranty is extended to the original household purchaser only and is not transferable. This warranty does not apply to: (a) damage to units caused by accident, dropping or abuse in handling, acts of God or any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart or otherwise modified; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the product; (e) sealed lamps and/or lamp bulbs, LED’s and batteries; (f) the finish on any portion of the product, such as surface and/or weathering, as this is considered normal wear and tear; (g) transit damage, initial installation costs, removal costs, or reinstallation costs.
