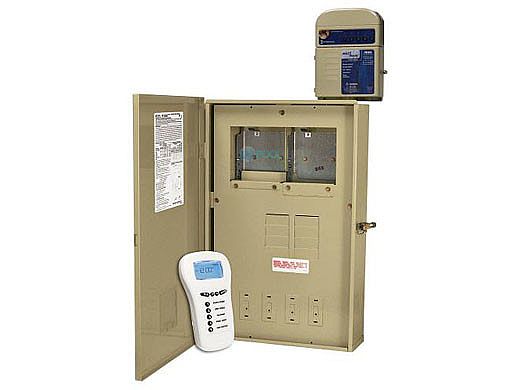

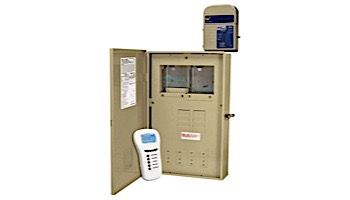

A wireless electronic controller for pool or spa automation. Retrofit existing mechanical timers or install with new construction. Has a 80 A load center and a built-in 300 W transformer.
Features
- Controls 5 circuits
- Controls pumps, lights, cleaners, and heaters
- Operates single, two, and Pentair® IntelliFlo® and IntelliPro® variable-speed pumps
- 24-hour timing with 3 ON/OFF events per circuit
- Includes receiver, wireless remote, water and air temperature sensors, (3) AA batteries, equipment labels, flathead screwdriver, raintight enclosure, raintight cap and mount for remote mounting antenna
- Type 3R metal indoor/outdoor enclosure
- See MultiWaveTM ECS and ECS Plus Systems on page 134 for additional control options
Applications
- Pool or Spa Equipment
- Single Body of Water
- No Valve Rotation
Specifications PE30065RCT3 |
Load Center Ratings |
80 A, 120 VAC, 80 A, 208 VAC Single Phase, 80 A, 240 VAC |
Input Voltages Display |
80 A, 120/240 VAC or 120/208 VAC single phase |
Number of Circuits |
5 |
Heater Protection Switch |
No |
Motor |
17 FLA, 120/240 VAC, 50/60 Hz 80 LRA, 120/240 VAC, 50/60 Hz |
Transformer Input Voltage |
120 VAC, 60 Hz |
Transformer (W) |
300 |
Number of Breaker Knockouts |
8 |
Number of Receptacle/Switch Knockouts |
4 |
Enclosure Rating |
Outdoor Type 3R Plastic |
Warranty |
2-year |
