Pool and spa automation that’s simple and affordable

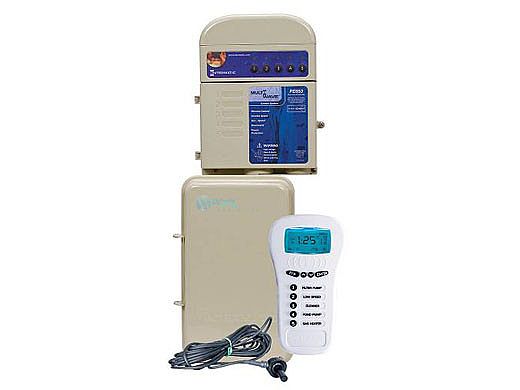

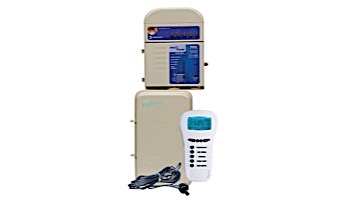

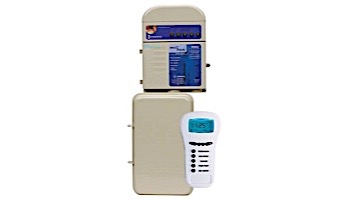

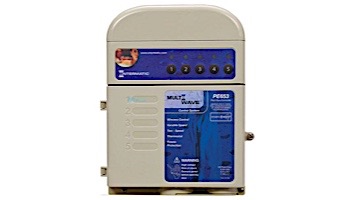

The MultiWave™ Wireless Control System from Intermatic is a straightforward and affordable way to automatically control pools, spas, lights, heaters, and more. Easy to configure, install, and operate, the expansion module provides the ultimate versatility for new construction or retrofit installations.

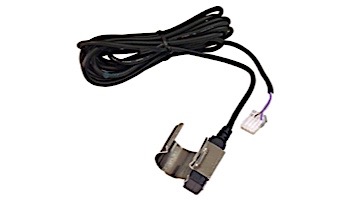

Ideal for adding to an existing enclosure installation. Works with PA122 water temperature sensor and 178PA28A freeze (air temperature) sensor. Communicates with variable-speed pumps, chlorinators, and water temperature sensors. Ideal for upgrading from any Intermatic mechanical timer.
Features
- Controls 5 circuits
- Controls pumps, lights, cleaners, and heaters
- Operates single, two, and Pentair® IntelliFlo® and IntelliPro® variable-speed pumps
- 24-hour timing with 3 ON/OFF events per circuit
- Includes receiver, wireless remote, water and air temperature sensors, (3) AA batteries, equipment labels, flathead screwdriver, raintight enclosure, raintight cap and mount for remote mounting antenna
- Type 3R metal indoor/outdoor enclosure
- See MultiWave™ ECS and ECS Plus Systems for additional control options
- Checkfrank™ - this Configurator will provide customized product recommendations, instructions and wiring diagrams for easy installation of the MultiWave™ wireless pool and spa controller.
Applications
- Pool or Spa Equipment
- Single Body of Water
- No Valve Rotation
Specifications PE653RC |
Input Voltages Display |
120-240 VAC, 50/60 Hz |
Number of Circuits |
5 |
Heater Protection Switch |
No |
Motor |
17 FLA, 120/240 VAC, 50/60 Hz
80 LRA, 120/240 VAC, 50/60 Hz |
Enclosure Rating |
Outdoor Type 3R Plastic |
Warranty |
2-year |
