Product description

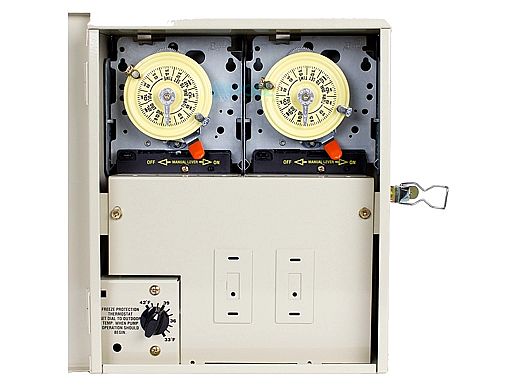

These heavy-duty Freeze Protection Controls are designed specifically for pools requiring one or two time switches and protect the pool and spa equipment and plumbing against freeze damage. They turn the pump and the heater ON when the outdoor temperature drops below the temperature set by the user-adjustable thermostat. In addition, they have a provision to install switches inside or GFCI receptacle on the side of enclosure.

Applications
Filter Pumps
Filter Pump Booster Pump
Fountains
Pool-Spa Combinations

Specifications
Case: 12" (30.5 cm) H x 12" (30.5 cm) W x 4-1/4" (10.8 cm) D, 0.048" steel with electrostatically applied light beige finish.
Knockouts: Five combination 1/2"-3/4" and two combination 3/4"-1" knockouts on the bottom. One combination 1/2"-3/4" on
the left side and one combination 3/4"-1" on the back. One knockout 1-3/4" x 2-3/4" on the right side for mounting switches or GFCI.
Center Rating: 92 Amp per leg, 168 Amp Max. 120-240 VAC or 120-240VAC single phase - 60Hz.
Electrical Rating: 240V
Thermostat Range: 44F - 32F with 5 degrees differential.
Shipping Weight: 10.0 lbs (4.5kg)

Features and details

• Designed to protect the pool and spa Equipment from freezing temperatures.

• For pools with cleaner, requiring two time switches.

• Thermostat ranging from 45 degrees Fahrenheit to 32 degrees Fahrenheit with a 5 degree differential.

• Turns the pump and the heater on when the outdoor temperature drops below the user set temperature.
