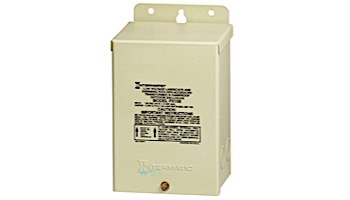

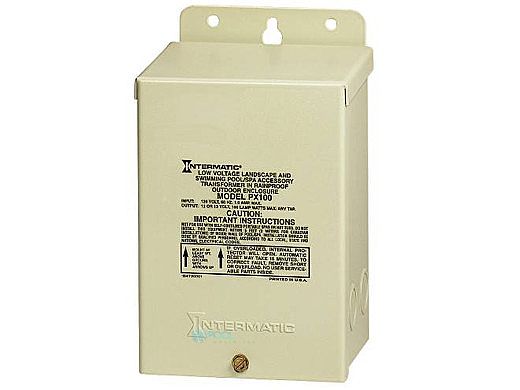

Intermatic 100W | 120V to 12V Transformer | PX100

Intermatic 100W | 120V to 12V Transformer | PX100 Intermatic 100W | 120V to 12V Transformer | PX100

  • 100W Transformer suitable for Pool/Spa Lights, Outdoor Lighting, Fountain Lighting
  • Input - 120V, 1 Amp
    Output - 12 or 13V

  • Steel with electrostatically applied light beige finish. Mounting brackets top and bottom.
  • Knockouts - (4) bottom, (2) right side, (1) left side, (1) back.
These safety transformers are specifically designed to operate in harsh environments, such as high humidity, combined with heat, and chemicals typically found around pools and spas.

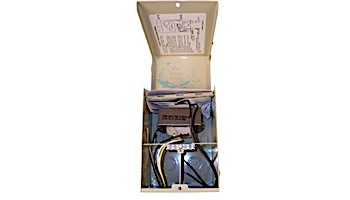

The two piece enclosure is made from galvanized steel and electrostatically coated with powder paint in order to weather the elements. With cover removed, the high and low voltage compartments are fully exposed and the knock-outs make wiring extremely convenient.

The transformer is made by the unique, two bobbin process and has a safety shield between the primary and secondary windings. In addition, the entire transformer is vacuum impregnated to resist moisture as well as for cooler, more efficient, and quieter operation. The output voltage of the secondary is selectable, depending on the input connections. All transformer models are safeguarded by an integral automatic-reset protector.

Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 3 questions Browse 3 questions and 2 answers
how many lights can you use on this transformer?
A shopper on Jun 7, 2017
BEST ANSWER: Unless you have a huge pool you will only need two. They are very bright. My pool is 24x36' and it looks great at night with two lights. Hope this helps. starstorm
Is this a magnetic or electronic transformer?
A shopper on Oct 23, 2018
4.5 / 5.0
2 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
Rated 5 out of 5
Great lights. First set did not work. They were replaced and second set is excellent. Very bright and about 12 pattern combinations.
June 7, 2017
over 5 years ago
Rated 4 out of 5
Intermatic 100W | 120V to 12V Transformer | PX100
Seem to do what it is supposed to. Installation was relatively easy, the only reason I didn't give it five stars is I don't know about longevity.
August 18, 2019
over 2 years ago
