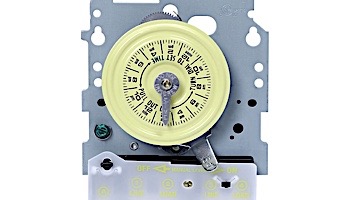

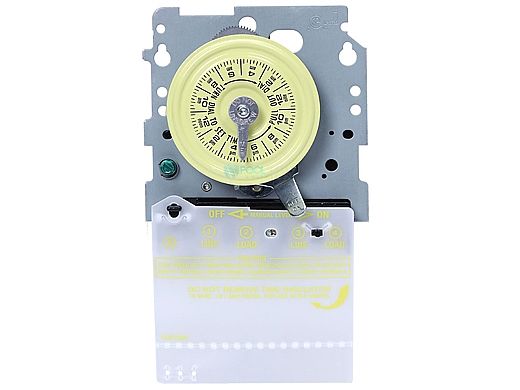

Intermatic T100M Series 24 Hour Dial Time Switch Mechanism Only | DPST 120V | T103M

$74.25
Intermatic T100M Series 24 Hour Dial Time Switch Mechanism Only | DPST 120V | T103M
Intermatic T100M Series 24 Hour Dial Time Switch Mechanism Only | DPST 120V | T103M
Intermatic T100M Series 24 Hour Dial Time Switch Mechanism Only | DPST 120V | T103M
T103M

These heavy duty Time Switch Mechanisms are designed for commercial, industrial and residential applications, and have the highest motor load ratings in the industry. They provide up to 12 ON/OFF operations each day with minimum ON/OFF time of 1 hour. All models are equipped with ON and OFF trippers and can be installed in almost all Intermatic enclosures.

Applications
  • Filter Pumps
  • Heat Pumps
  • Lighting

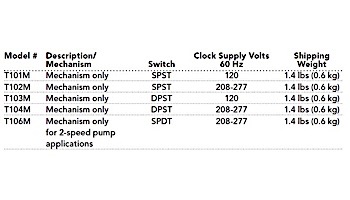

Specifications
  • 24 Hour Dial Time Switch Mechanism Only
  • Double Pole Single Throw (DPST)
  • Clock Supply VAC 60 Hz: 120
  • 40 AMP. Resistive, Inductive, Tungsten or 1000 VA Pilot Duty Each Pole 120/208.240 Volt AC
  • 2 HP (24 FLA)-120V AC; 5 HP (28 FLA)-240V AC.


Brand: INTERMATIC
