Product description

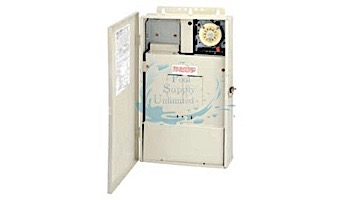

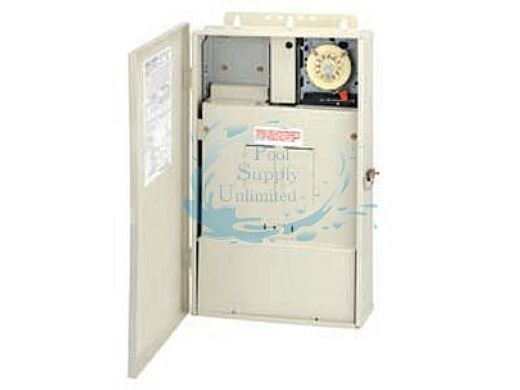

Pool Panels with Transformer

These Panels with Transformer offer an all-in-one, easy to wire and extremely cost effective electrical control center for any pool or spa installation. Inside the enclosure are the time switch, the transformer and other components needed for the completion of this installation. The T40000RT Series panels will accept additional Intermatic mechanisms and/or components.

Specifications

T10000RT Series

• Case: 12" (30.5 cm) H x 12" (30.5 cm) W x 4-1/4" (10.8 cm) D, 0.048" steel with electrostatically applied light beige finish
• Knockouts: Five combination 1/2"-3/4" and two combination 3/4"-1" knockouts on the bottom. One combination 1/2"-3/4" on the left side and one combination 3/4"-1" on the back. One knockout 1-3/4" x 2-3/4" on the right side for mounting switches or GFCI
• Center Rating: 92 Amp per leg, 168 Amp Max. 120-240 VAC or 120-208 VAC single phase -0Hz
• Shipping Weight: 20lbs

T40000RT Series

• Case: 20-3/4" (52.7 cm) high x 12-3/4" (32.4 cm) wide x 4-1/4" (10.8 cm) deep, 0.048" steel with electrostatically applied light beige finish
• Knockouts: Seven combination 1/2"-3/4" and three combination 3/4"-1" knockouts on the bottom. Five combination 1/2"-3/4" on the left side. One 1-3/4" x 2-3/4" knockout on the right side for mounting switches and GFCI
• Panel Rating: T40000RT Series - 100 Amp 120-240 VAC or 120-208 VAC single phase - 60 HZ
• Time Switch Rating: T40000R Series
• Transformer Rating: See table
• Shipping Weight: 20 lbs

Features and details

• Steel with electrostatically applied light beige finish

• Inside are the time switch, the transformer and other components needed for the completion of this installation

• Accepts additional Intermatic mechanisms
  and/or components

• Easy to wire and extremely cost effective

• Double pole single throw timer


Warranty

Register your product online at www.intermatic.com.
