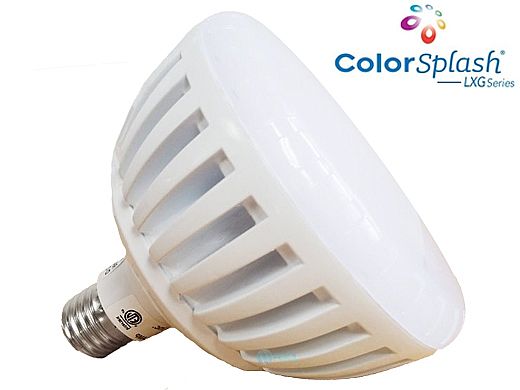

Home Pool Pool & Spa Lights J&J Electronics Pool & Spa Lights J&J Electronics ColorSplash LXG Series LED Pool Lamp | 120V | LPL-P2-RGB-120
NOTICE: The Texas weather emergency has caused nationwide stock-outs on most products. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product arrives, given that these back-orders are industry wide. There are long shipping delays on the few products we do have in stock. Please contact us to ask about availability. Phone calls are being answered as fast as we can or you can use the Live Chat for the quickest response.

J&J Electronics ColorSplash LXG Series LED Pool Lamp | 120V | LPL-P2-RGB-120

J&J Electronics ColorSplash LXG Series LED Pool Lamp | 120V | LPL-P2-RGB-120 J&J Electronics ColorSplash LXG Series LED Pool Lamp | 120V | LPL-P2-RGB-120 J&J Electronics ColorSplash LXG Series LED Pool Lamp | 120V | LPL-P2-RGB-120 J&J Electronics ColorSplash LXG Series LED Pool Lamp | 120V | LPL-P2-RGB-120 J&J Electronics ColorSplash LXG Series LED Pool Lamp | 120V | LPL-P2-RGB-120
$199.00

Quantity:
Shipping Free Shipping *
Platinum Preferred Manufacturer
  • Energy efficient lamps. Reduce consumption up to 90% compared to incandescent
  • LED Technology. Maximizes lifespan up to 50,000 hours
  • Can be controlled directly from Pentair or Jandy automation
  • Synchronizing. Multiple lamps operate in unison to harmonize your pool and spa lighting
  • Replaces: 3G 120V Pool Bulb: LPL-P1-RGB-120 and 2G 120V Pool Bulb: LPL-2030-110-2
RELATED ITEMS
  • J&J Electronics Bluetooth Enabled ColorSplash XG Controller | LPL-XG-CTRL-1
    J&J Electronics Bluetooth Enabled ColorSplash XG Controller | LPL-XG-CTRL-1

    $239.00
  • J&J Guardian Silicone Lens Gasket for American Products & Pentair Pool Lights | LPL-G-P
    J&J Guardian Silicone Lens Gasket for American Products & Pentair Pool Lights | LPL-G-P

    $32.21
  • J&J Guardian Silicone Lens Gasket for American Products & Pentair Spa Lights | LPL-M-G-P
    J&J Guardian Silicone Lens Gasket for American Products & Pentair Spa Lights | LPL-M-G-P

    $32.04
OVERVIEW
Transform your Backyard Into a Color Rich Paradise

J&J’s ColorSplash® LXG Replacement Multi-Color In-Ground Spa Lamp offer a variety of lighting modes that instantly transform any in-ground pool into a custom illuminated oasis. Whether the pool is used for playing, relaxing or entertaining, the advanced ColorSplash LXG Series with its multiple colors and light shows create the ideal spa ambiance.

The LXG pool lamp features our Zero Pixilation optical diffuser lens resulting in fuller, richer and more even color throughout the water. It can also be used side-by-side with existing XG Series light fixtures. This replacement for traditional light bulbs installs in minutes and provides immediate energy cost savings over incandescent lights.

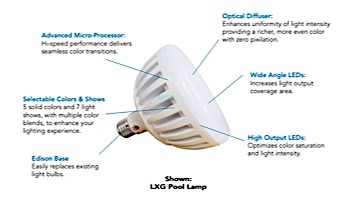

Product Features
  • Operates effectively with most automation systems*
  • Edison base light. Compatible with most manufacturers fixtures
  • Synchronizing. Multiple lamps operate in unison to harmonize your pool and spa lighting
  • Able to synchronize with J&J’s XG Series fixtures
  • Optical Diffuser Lens. Fuller, richer “zero” pixilation color throughout the water. (pool light only)
  • Color Lock and Show Lock functionality
  • LED Technology. Maximizes lifespan up to 50,000 hours
  • Energy efficient lamps. Reduce consumption up to 90% compared to incandescent
  • Industry leading 3-year warranty. Quality you can rely on for years
Technical Specifications
  • Front Diameter: 5.25" (133.25mm)
  • Depth*: 5.35" (135.50mm)
  • Power Consumption: 23 Watts
  • Input Current: .19 Amps
Recommended pool water temperature 33o F to 105o F (1o C to 40o C). Humidity 0-95% Non-condensing.
*Measured from lens to beginning of Edison Base

Fixture Compatibility
Hayward® Astrolite™ SP058 Series; Jacuzzy® Full Moon™; Jandy® Pro Series White; Pentair® Amerlite 784 Series; Sta-Rite® Swimquip™

Light Operation Basics
ColorSplash LXG’s multi-color features are selectable by turning the existing pool light switch off and on, known as power cycling.

Available Light Features
  • Color Lock - Select a solid color or color blend
  • Show Lock - Select a light show
  • Synchronize - Synchronize multiple lights
  • Memory - Store the last “locked” color or show
Refer to the Installation and Operation Guide for complete instructions.

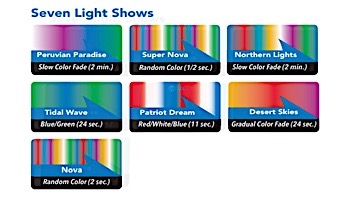

Seven Light Shows
Peruvian Paradise Super Nova Northern Lights
Tidal Wave Patriot Dream Desert Skies


Nova

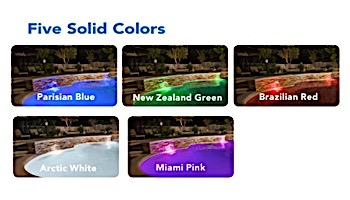

Five Solid Colors

Parisian Blue New Zeland Green Brazilian Red Arctic White Miami Pink

* Operates with Jandy® and Pentair® automation systems. Systems need to be programmable to operate Pentair® Intellibrite 5GTM LED Color. Refer to owners manual for more information


Brand: J&J ELECTRONICS
SPECIFICATIONS
Pool or Spa
Pool
Voltage
120V
Color or White
Color
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 5 questions Browse 5 questions and 5 answers
is this the next generation to the 3g?
Rich t on Jun 19, 2017
Having issues with new Color Splash LXG series Pool Lamp. Why is it strobing? This is not an option in settings
Eddie on Mar 30, 2020
BEST ANSWER: This light does not have any type of strobe option to my knowledge. Would recommend you check your electrical connections and verify you are receiving the proper power supply according to the lamp power rating. If these are both correct I would contact J&J Electronics and see what they recommend.
I had this light installed after my pool remodel. The box indicates a variety of colors and color shows to select from by turning the light on off on. But I don't see any changes just the slow color rotation. I can't even get a solid color. What gives?
Nestor P on Feb 6, 2017
BEST ANSWER: Change Light Show: power OFF for 3 seconds
Lock on solid color: power OFF and back ON within 2 seconds
Deactivate color lock: powerOFF and back ON within 2 seconds
Memory(return to solid color or show last displayed): power OFF for 10 seconds or more
Reset/Synchronize: power OFF and back ON within 1 second, 3 times (off/on, off/on, off/on) reset and synchronization indicated by flashing red four times
Does this light need to be in a wet niche or dry niche? Also does the niche for this light need grounded
Luke H on Aug 14, 2020
BEST ANSWER: This light is designed to be in a wet niche but would also work in a dry niche. If this is a wet application, it must be grounded with a gfci (ground fault circuit interrupter) in the loop.
Turn off the pool light ?
A shopper on Mar 16, 2020
REVIEWS
4.1 / 5.0
8 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
3
4
0
1
0
Rated 5 out of 5
Z
Awesome little guy just wish it was brighter
Awesome little guy just wish it was brighter
Awesome little guy just wish it was brighter
Awesome little guy just wish it was brighter
June 26, 2019
Purchased
over 3 years ago
Rated 4 out of 5
Very energy efficient!
I had an old halogen screw on bulb in my pool and in my spa. First I called asking for the same bulb I had but it was no longer available, so I ordered this LED retrofit bulbs and they are great very bright and I love the colors!
April 4, 2016
Rated 4 out of 5
Easy to install
This light is great and allows you to have LED color changing lights without the expense of a $550 complete light. I was able to replace the bulb with this regular screw in LED bulb for about half the price of getting a whole new light.
August 9, 2013
Rated 4 out of 5
Really nice and bright colors
We replace our 500w incandescent pool light with this LED color-changing light.It does everything promised including multiple type of shows, definitely recommended it, this is a GREAT buy!<br>
June 8, 2015
Rated 5 out of 5
Made all the difference in our pool at night. Beautiful & peaceful and making it so much more enjoyable sitting or swimming nightly
June 9, 2020
Purchased
9 months ago
Rated 5 out of 5
Great LED Light
We purchased these bulbs for our pool and spa instead of having to replace the entire fixtures. Would recommend this product.
October 10, 2014
Rated 2 out of 5
Not anywhere close 500 Watt lamp amount of light
If you are looking for a white light that is anything close to being as bright as a 500 Watt 120 volt AC lamp, then these will disappoint you. All the colors are interesting, but was expecting a much brighter white light than this turns out to be. I have two of these Color Splash lights on one circuit to the pool and they synchronize together to same color from each light but there is no where near as much light as the two 500 Watt 120 volt AC lamps.
July 28, 2017
Purchased
over 3 years ago
Rated 4 out of 5
Shadow spots on lens
Just got my new "color splash" light. and tested it out....well there seems to be two thumb size shadows on the outer rim. Called J&J who make the lamp and was informed that two capacitors inside are what the shadows are from. I said maybe you need to redesign the circuit board. He said it's not a problem when it's in the pool. I said I'll put it in the pool and do a second review later and you still need to redo the board. How that got through QC makes me wonder about the quality. I'll let you know if there is a later problem.
June 5, 2017
Purchased
over 3 years ago
