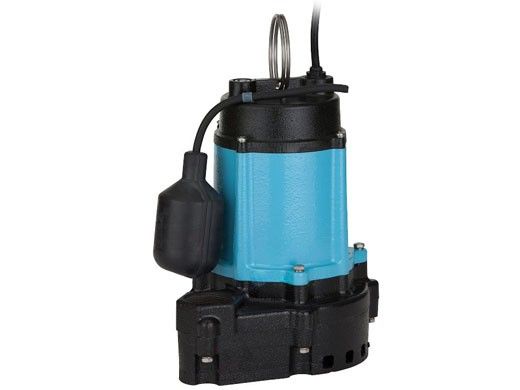

Constructed of epoxy-coated, heavy-duty cast iron and designed for continuous duty, the 10EC Series is a consistent performer for commercial sump and light effluent applications. Available with multiple switch options to fit according to basin size and depth or pump, the 10EC Series is the first line of defense against water damage in homes and businesses.
Features
- Heavy-duty cast iron construction
- Permanent split capacitor (PSC)
- Designed for continuous duty
- Energy-saving low amp draw
- 1.5" FNPT discharge (38 mm)
- Handles up to 1/2" (12.7 mm) solids
- Multiple switch options for automatic operation
- 140 °F (60 °C) liquid temperature rating
- cCSAus listed
Applications
Effluent wastewater removal, dewatering, water transfer
Series Specifications
Volts |
Hz |
Amps
FLA | Start |
Watts |
Performance
(GPM @ Height in Feet)
5' |10'|15'|20'|30' |
Shut Off
(ft) |
PSI |
115 |
60 |
5|14.5 |
750 |
67|57|52|47|28 |
36 |
15.6 |
Item No |
Model |
HP |
Volts |
Base Material |
Switch Type / Operation |
On Level |
Off Level |
Cord |
Weight |
510852 |
10EC-CIA-RF |
1/2 |
115 |
Cast Iron |
Piggyback Mechanical Float |
13" - 15"
(33.2 cm - 38.1 cm)
|
6" - 8"
(15.2 cm - 20.3 cm) |
20'
(6.1 m) |
36.5 lbs
(16.6 kg) |
