Product description

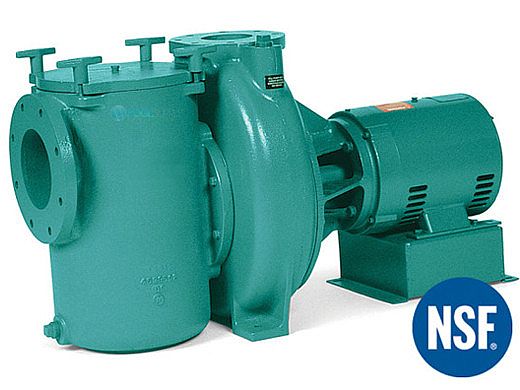

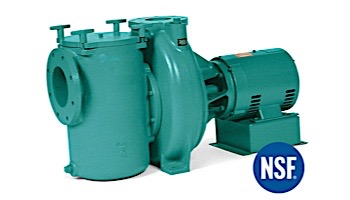

This line of 6” x 4” self-priming, centrifugal pumps is perfect for larger commercial pools, water features, fountains, and waterpark applications. Designed with an extra large, integral pump strainer (over 1,100 cubic inches of volume with a corrosion-proof, stainless steel basket), the 4SPC Series features an enclosed, bronze impeller for high efficiencies and low NPSH requirements. Available from stock in 10, 15 and 20 hp sizes with three phase motors and also with a 10 hp single phase motor. Utilizes 1,750 RPM motors for whisper-quiet operation and extended service life. Available with optional TEFC motors and epoxy coating.

• Rugged Cast Construction
• High Efficiency Bronze Impeller
• Multi-vane Cast Iron Replaceable Diffuser
• Cast Iron Casing with 6” Suction and 4” Discharge Female Flanged Pipe Connections – Integral Suction Strainer with Stainless Steel Basket
• Ease of Maintenance
• Self-lubricating Mechanical Seal
• Back Pull-out Design
• Nationally Known Brand JP Shaft Motor
• NSF Certified

• Voltage Rating: 200-230/460 V
• 48.3-42/21 A
• Frequency Rati6ng: 60 Hz
• GPM of Water @ 40 Ft. of Head: 700
• GPM of Water @ 50 Ft. of Head: 665

Features and details

• Self-priming centrifugal swimming pool pump

• 6" Suction and 4” Discharge Female Flanged Pipe Connections

• Integral Suction Strainer with Stainless Steel Basket

• Rugged Cast Construction


Specifications

Horse Power

15 HP

Speed

1 Speed

Voltage

200-230/460V

Pipe Size

4"

Color

Green

Phase

Three Phase

Resources

Brochure
Instruction Manual
Performance Specs
