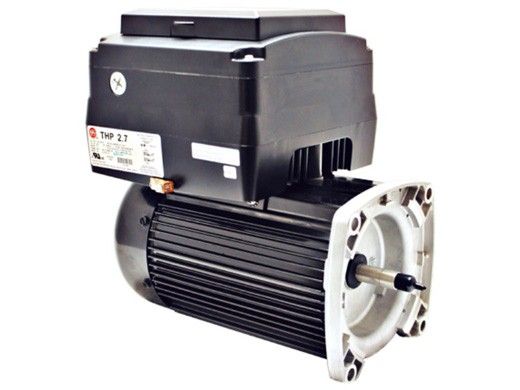

Home Replacement Square Flange Variable Speed Pool Pump Motor | Integrated Timer | 3.45THP 230V 48Y | Premium Energy Efficient | NPTQ345

Replacement Square Flange Variable Speed Pool Pump Motor | Integrated Timer | 3.45THP 230V 48Y | Premium Energy Efficient | NPTQ345

Name: Replacement Square Flange Variable Speed Pool Pump Motor | Integrated Timer | 3.45THP 230V 48Y | Premium Energy Efficient | NPTQ345
Brand: US MOTORS
SKU: 189413
Availability: InStock

$830.72

Replacement Square Flange Variable Speed Pool Pump Motor | Integrated Timer | 3.45THP 230V 48Y | Premium Energy Efficient | NPTQ345

Neptune - Variable Speed Pool Pump Motor

One does not need to replace the entire pool pump to gain all the energy savings associated with variable speed. Upgrade any pool by installing the Neptune Variable Speed Pool Pump Motor. The Neptune line is a totally enclosed finned aluminum product which provides greater environmental protection than open drip proof motors which can lead to a longer field life, high efficiency pool pump motor This professional-grade product has a premium efficient design that can help reduce utility expenses associated with operating a swimming pool pump by up to 80% when utilizing the preprogrammed settings on the onboard user interface.

Fully compliant with Title 20 regulations, CEC requirements and the proposed DOE Rule
Premium efficient Brushless Permanent Magnet (BPM) motor
Totally Enclosed Fan Cooled (TEFC) finned aluminum motor enclosure shields electrical components from moisture and debris
Preprogrammed variable speed drive and on-board user interface – no complex wiring required
Easy to install, direct replacement motor for any square flange or 56J mount pump motor -- no plumbing work required if keeping the current pump
Dual Voltage 1.25THP & 1.65 THP products
Right-size your variable speed replacement motor to the existing pump with 1.25THP, 1.65THP, 2.25THP, 2.70THP, and 3.45THP products available

Features

Capable of running at low speed setting resulting in ultra-quiet performance
Finned aluminum frame provides an IPX5 rated enclosure for the electrical components which helps prevent moisture and debris ingress
Simple top-down power connection wiring area
Low voltage connections to pool control systems
Active power factor correction reduces line current requirements to the motor
GFCI compatible
Premium powder coating paint to provide a long-lasting finish
Total Horsepower (THP) Rated simplifies the process of finding the correct replacement motor
UL1081 approvable, UL60730-1 approved, & CE conformance
Intuitive & easy to operate user interface
Built-in real-time clock with battery backup to ensure time settings are saved during most power outages
Factory programmed for out-of-the-box energy savings functionality. Just set the time of day
Up to seven program schedules per day allow for maximum functionality each day
One touch Clean button which runs the motor at full speed, 3450 RPM, for 30 minutes to help quickly clean the pool
Fully adjustable priming speed and priming time
Low temperature monitor with adjustable settings
Menu keypad lockout feature prevents tampering with optimized programming schedules
On board auxiliary load relay for use with external pool accessory chlorine generator, pool heater, of pool cleaner

Specifications

Frame 48Y
RPM: 600-3450
Mounting: Square Flange
Voltage: 230
Variable speed
Number Speeds: 1
Hertz: 50/60
Premium efficient, category "S"

Brand: US MOTORS

REVIEWS

Q&A

Replacement Square Flange Variable Speed Pool Pump Motor | Integrated Timer | 3.45THP 230V 48Y | Premium Energy Efficient | NPTQ345

$830.72

Quantity

Platinum Preferred Manufacturer

Product description

Neptune - Variable Speed Pool Pump Motor

Fully compliant with Title 20 regulations, CEC requirements and the proposed DOE Rule
Premium efficient Brushless Permanent Magnet (BPM) motor
Totally Enclosed Fan Cooled (TEFC) finned aluminum motor enclosure shields electrical components from moisture and debris
Preprogrammed variable speed drive and on-board user interface – no complex wiring required
Easy to install, direct replacement motor for any square flange or 56J mount pump motor -- no plumbing work required if keeping the current pump
Dual Voltage 1.25THP & 1.65 THP products
Right-size your variable speed replacement motor to the existing pump with 1.25THP, 1.65THP, 2.25THP, 2.70THP, and 3.45THP products available

Features

Capable of running at low speed setting resulting in ultra-quiet performance
Finned aluminum frame provides an IPX5 rated enclosure for the electrical components which helps prevent moisture and debris ingress
Simple top-down power connection wiring area
Low voltage connections to pool control systems
Active power factor correction reduces line current requirements to the motor
GFCI compatible
Premium powder coating paint to provide a long-lasting finish
Total Horsepower (THP) Rated simplifies the process of finding the correct replacement motor
UL1081 approvable, UL60730-1 approved, & CE conformance
Intuitive & easy to operate user interface
Built-in real-time clock with battery backup to ensure time settings are saved during most power outages
Factory programmed for out-of-the-box energy savings functionality. Just set the time of day
Up to seven program schedules per day allow for maximum functionality each day
One touch Clean button which runs the motor at full speed, 3450 RPM, for 30 minutes to help quickly clean the pool
Fully adjustable priming speed and priming time
Low temperature monitor with adjustable settings
Menu keypad lockout feature prevents tampering with optimized programming schedules
On board auxiliary load relay for use with external pool accessory chlorine generator, pool heater, of pool cleaner

Specifications

Frame 48Y
RPM: 600-3450
Mounting: Square Flange
Voltage: 230
Variable speed
Number Speeds: 1
Hertz: 50/60
Premium efficient, category "S"
