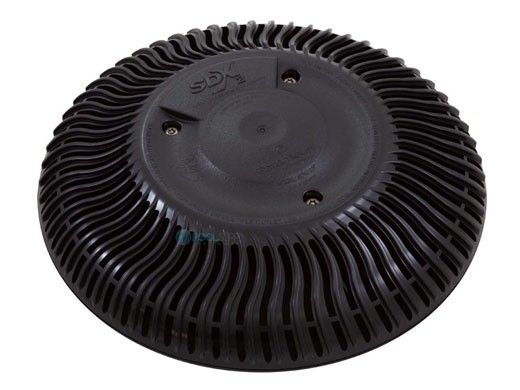

SDX2 - The High Performance Safety Drain Because Pool Safety is Always Paramount
SDX2 is a high flow suction outlet suitable for use as a wall fitting and also as a floor drain when debris removal is not a concern. A "Retro" version bring existing suction outlet covers VGB compliant. SDX2 Retro fits existing plaster rings up to 10" in diameter. SDX2 boasts a flow rating of 188 gpm on the floor and 154 gpm on the wall making it compatible with most residential pumps up to 3 hp. SDX2 has a 1.396 feet per second velocity at the opening at a maximum listed 188 gpm.
Features and Benefits
- Anti-vortex shield blocks contact with direct suction
- SDX2 retro can be installed as a single cover with an SVRS installed on the suction line
- "Retro" version fits existing suction outlets up to 10" in diameter for concrete
- NO SUMP REQUIRED - No need to chisel out a sump
- SDX2 has a 1,396 feet per second velocity at the opening at a maximum listed 188 gpm
- Patented "ribbed" design achieves high flow with sixty "mini" drains
- Dome shape to prevent a seal by a swimmer
Meets national Anti-Entrapment Requirements
- VGB 2008 Compliant. ANSI/APSP- 16 2011
- IAPMO tested and certifed; a nationally recognized testing laboratory (NRTL) accredited by ANSI
- USPC (uniform swimming pool, spa and hot tub code) compliant
- IRC (International Residential Code), section 106.2 suction fittings - compliant
