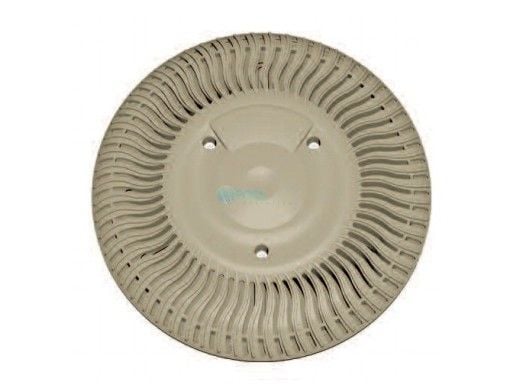

Home Paramount SDX2 Retro High Flow Safety Drain for Concrete Pools | Beige | 004-192-2231-07
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

Paramount SDX2 Retro High Flow Safety Drain for Concrete Pools | Beige | 004-192-2231-07

Paramount SDX2 Retro High Flow Safety Drain for Concrete Pools | Beige | 004-192-2231-07 Paramount SDX2 Retro High Flow Safety Drain for Concrete Pools | Beige | 004-192-2231-07
$47.45

Quantity:
  • High Flow Safety Drain
  • NO SUMP REQUIRED = TIME SAVED
  • Suitable for Use as a Wall Fitting, or as a Floor Fitting
  • Include Adaptable Backplate to Retrofit Suction Fittings up to 10"
OVERVIEW
Q & A
REVIEWS
FOR YOU
OVERVIEW
SDX2 - The High Performance Safety Drain Because Pool Safety is Always Paramount

SDX2 is a high flow suction outlet suitable for use as a wall fitting and also as a floor drain when debris removal is not a concern. A "Retro" version bring existing suction outlet covers VGB compliant. SDX2 Retro fits existing plaster rings up to 10" in diameter. SDX2 boasts a flow rating of 188 gpm on the floor and 154 gpm on the wall making it compatible with most residential pumps up to 3 hp. SDX2 has a 1.396 feet per second velocity at the opening at a maximum listed 188 gpm.

Features and Benefits
  • Anti-vortex shield blocks contact with direct suction
  •  SDX2 retro can be installed as a single cover with an SVRS installed on the suction line
  • "Retro" version fits existing suction outlets up to 10" in diameter for concrete
  • NO SUMP REQUIRED - No need to chisel out a sump
  • SDX2 has a 1,396 feet per second velocity at the opening at a maximum listed 188 gpm
  • Patented "ribbed" design achieves high flow with sixty "mini" drains
  • Dome shape to prevent a seal by a swimmer
Meets national Anti-Entrapment Requirements
  • VGB 2008 Compliant. ANSI/APSP- 16 2011
  • IAPMO tested and certifed; a nationally recognized testing laboratory (NRTL) accredited by ANSI
  • USPC (uniform swimming pool, spa and hot tub code) compliant
  • IRC (International Residential Code), section 106.2 suction fittings - compliant


Brand: PARAMOUNT
