Home … Pool Commercial Pool Supplies Commercial Pool Filtration Systems Pentair THS Series Horizontal Sand Filter | 34" x 61" | 143461

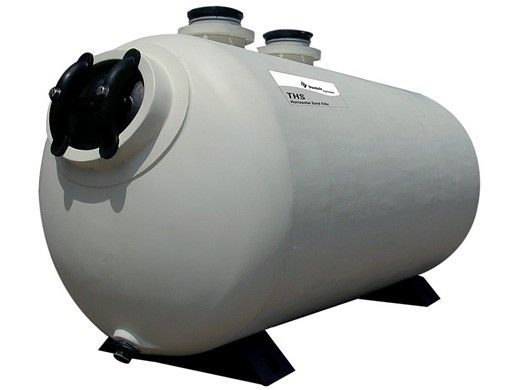

Pentair THS Series Horizontal Sand Filter | 34" x 61" | 143461

Name: Pentair THS Series Horizontal Sand Filter | 34" x 61" | 143461
Brand: Pentair
SKU: 68417
Availability: InStock

$14,120.66

Pentair THS Series Horizontal Sand Filter | 34" x 61" | 143461

THS Series - High Performance Horizontal Sand Filters

For commercial swimming pools and other water applications and filters up to 27 sq. ft. of filtration area. Various sizes and configurations to fit almost any body of water.

Pentair has a state-of-the-art horizontal sand filter unlike any other on the market. The THS Series filter is an NSF-approved 50 psi rated tank with flow rates up to 535 gpm in a single tank. The filter shell is manufactured from a long-lasting composite laminate that makes winding unnecessary. A special coating gives the THS Series filter a smooth and attractive finish. An interior coating protects wet surfaces.

Features:

Manway in front for easy access and smaller footprint
34" diameter tanks will fit through standard doorway
Optional manual, semi-automatic, or fully automatic backwash systems
Accessible drain
Influent manifold distribution to help prevent clogging
Single-bolt saddles for easy leveling
NSF Listed

Specification / Performance:

Flow Rate
- NSF Listed for 5 to 20 GPM per square foot of filter area
Maximum Limits
- Working pressure 50 PSI max. Continuous water temperature 125° F
Sand Media
- #20 white quartz silica sand. Effective size 0.45-0.55 mm
Safety provisions
- Each tank features an automatic and manual air release system fabricated of non-corrosive materials

Brand: Pentair

REVIEWS

Q&A

Pentair THS Series Horizontal Sand Filter | 34" x 61" | 143461

$14,120.66

Tank Dimensions:

34" x 61"

34" x 84"

42" x 72"

42" x 96"

Quantity

Platinum Preferred Manufacturer

Proposition 65 Warning

Purchase options

Product description

Features and details

Specifications

Resources

Warranty

You've always been able to count on the quality and long service life of Pentair products. Pentair uses state of the art workmanship, materials and manufacturing processes to create the most innovative pool and spa equipment anywhere. And now Pentair products can deliver even more value and peace of mind, because Pentair offers extended warranty coverage on select products that are installed by a qualified installer*.

While the majority of Pentair products are covered by a sixty- (60) day warranty, a select number of products qualify for extended warranty coverage.

Select Bundled Products: applies to purchases and qualified installation of a minimum of a pump and filter, and one or more of the following: heaters, heat pumps, control systems, automatic cleaners, lighting, salt chlorine generators or UV sterilizer**

*Note: Qualified Installer - Defined as a licensed professional who charges a fee for his services, and possesses a business license, contractor's license and/or resale permit. Common examples of a "qualified installer" include: Swimming Pool, Home Repair or Landscape Professional; Plumber or Electrician; General Contractor; Heating and Air Conditioning Specialist.

**Note: Bundled products - must be purchased on the same invoice and installed at the same time. If any product within a bundle is ineligible for the bundled warranty coverage then all products within the same bundle will be disqualified from receiving the three (3) year extended warranty coverage for bundled products.

TradeGrade products must be purchased from a retail store (brick & mortar), pool builder or pool service company to receive a one-year, two-year or three-year warranty. If purchased online will only receive a sixty-day limited warranty. View the list of TradeGrade Products.

Ecommerce (EC) products: Products purchased from an Authorized Pentair Online Reseller (products beginning with EC-) receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty.

Visit www.pentair.com to submit your product warranty registration.

This information was updated on 11/19/2021. For the most current information and full warranty policy please visit www.pentair.com/warranty.

Warranty Information
