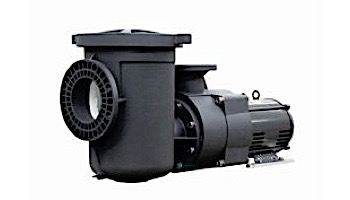

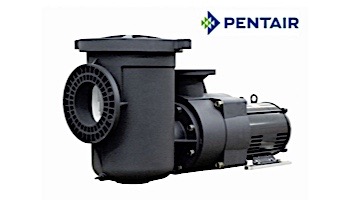

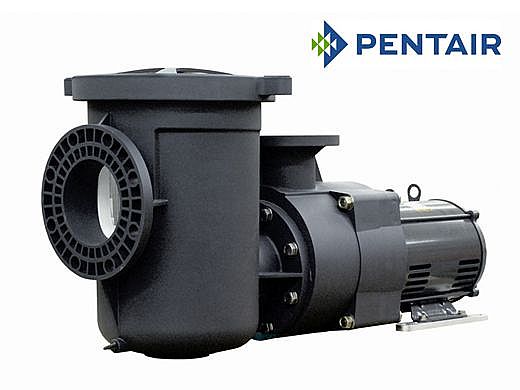

Pentair EQ500 Series Premium Efficiency Commercial Pool Pump with Strainer | NEMA Rated | Single Phase | 230V 5HP | 340030

Pentair EQ500 Series Premium Efficiency Commercial Pool Pump with Strainer | NEMA Rated | Single Phase | 230V 5HP | 340030 Pentair EQ500 Series Premium Efficiency Commercial Pool Pump with Strainer | NEMA Rated | Single Phase | 230V 5HP | 340030 Pentair EQ500 Series Premium Efficiency Commercial Pool Pump with Strainer | NEMA Rated | Single Phase | 230V 5HP | 340030 Pentair EQ500 Series Premium Efficiency Commercial Pool Pump with Strainer | NEMA Rated | Single Phase | 230V 5HP | 340030 Pentair EQ500 Series Premium Efficiency Commercial Pool Pump with Strainer | NEMA Rated | Single Phase | 230V 5HP | 340030
$4,820.06

Quantity:
Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Self-priming with Hair and Lint Strainer
  • Lightweight for easy, one-man installation
  • Available in single and 3-phase models
  • Cam and Ramp see thru lid
  • Commercial grade, non-corrosive Plastic Parts for durability and long life
OVERVIEW
EQ Series pumps are offered with many configurations. This model is Single Phase with Strainer.
EQ Series® high performance commercial pumps are designed for maximum efficiency and quiet operation in every detail. They are the only noncorrosive, all plastic pumps designed exclusively for the commercial pool and water applications market. EQ Series impellers are manufactured for true breakthrough performance, allowing for lower loads and longer motor life. Available with and without strainer pot.

Commercial Plastic pump built specifically for commercial and large residential pools. Pump features extraordinary electrical and hydraulic efficiency that pays premiums in low electrical costs, less wear and tear on critical moving parts, and quiet operation.

Features:
  • Closed impeller for long life and durability
  • Close coupled for quiet, stable flow operation
  • 6" suction and 4" discharge with strainer pot
  • Closed impeller for long life and durability
  • Available in single- and three-phase models
  • Great for use with Acu Drive™ XS Variable Frequency Drives
  • Self-priming under NSF standards; NSF listed
  • Nema Premium Grade Efficiency Motors
  • Drop-in replacement for C Series Pump
  • Compatible with Acu Drive XS VFD
  • Waterfall models great for low head, high flow applications
  • 50 hz model available - contact factory


Brand: Pentair

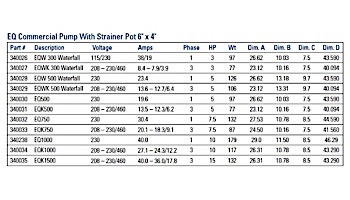

SPECIFICATIONS
Horse Power
5 HP
Voltage
230V
Pipe Size
6"
Color
Black
Phase
Single Phase
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 5 questions Browse 5 questions and 3 answers
does this unit require periodic lubrication, or is it factory sealed?
eric s on May 21, 2017
What is the service factor for this motor?
A shopper on May 7, 2022
BEST ANSWER: 1.15 is what i have on the nameplate of one im wiring.
Can a 9” inlet and 6” in outlet be adapted?
Moises on Apr 26, 2022
BEST ANSWER: 9” ??? Are you sure ??? Normally in pools is 6”, 4” or 2.5-2”for commercial or 2.5-1” for residential.
I was under the impression that single phase indicates 110/115 volts (eg. line coming from a single breaker at the circuit panel)
Whereas, a 220/230 volt system (coming off a dual breaker) would be known as split phase. Is this correct?
If so, why are the 220/230 volt systems listed as single phase motors?
AJ on May 17, 2017
BEST ANSWER: There are two types of power, single phase and three phase. This only refers to the phase. Within single phase you can have both 110 and 220 volt. Not the same thing as phase
i HAVE THIS UNIT IN my pool ((NIDEC motor number DJ5P1AZ). It runs very loud, and I need to know if that's normal, and wheter the loud noise is the motor (bearings?) or the tturbine. I would gladly replace the moter but dont want to replace turbine and strainer if not broken?? It pumps fine with pressure, just can't risk a failure
eric s on May 20, 2017
REVIEWS
5.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
0
0
0
0
Rated 5 out of 5
Wow!
I run the aquatic center for my company and we have always had the old brass C series pump. We finally upgraded and replaced it with the EQ Series and were able to decrease the HP and still have the flow we needed. The pump is MUCH more efficient and quiet and runs great. Should have done this sooner.
February 9, 2014
RESOURCES
Adobe Acrobat PDF Brochure
Adobe Acrobat PDF Owners Manual

Register your Pentair product online at www.pentair.com.

WARRANTY
You've always been able to count on the quality and long service life of Pentair products. Pentair uses state of the art workmanship, materials and manufacturing processes to create the most innovative pool and spa equipment anywhere. And now Pentair products can deliver even more value and peace of mind, because Pentair offers extended warranty coverage on select products that are installed by a qualified installer*.

While the majority of Pentair products are covered by a sixty- (60) day warranty, a select number of products qualify for extended warranty coverage.

Select Bundled Products: applies to purchases and qualified installation of a minimum of a pump and filter, and one or more of the following: heaters, heat pumps, control systems, automatic cleaners, lighting, salt chlorine generators or UV sterilizer**

*Note: Qualified Installer - Defined as a licensed professional who charges a fee for his services, and possesses a business license, contractor's license and/or resale permit. Common examples of a "qualified installer" include: Swimming Pool, Home Repair or Landscape Professional; Plumber or Electrician; General Contractor; Heating and Air Conditioning Specialist.

**Note: Bundled products - must be purchased on the same invoice and installed at the same time. If any product within a bundle is ineligible for the bundled warranty coverage then all products within the same bundle will be disqualified from receiving the three (3) year extended warranty coverage for bundled products.

TradeGrade products must be purchased from a retail store (brick & mortar), pool builder or pool service company to receive a one-year, two-year or three-year warranty. If purchased online will only receive a sixty-day limited warranty. View the list of TradeGrade Products.

Ecommerce (EC) products: Products purchased from an Authorized Pentair Online Reseller (products beginning with EC-) receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty.

Visit www.pentair.com to submit your product warranty registration.

This information was updated on 11/19/2021. For the most current information and full warranty policy please visit www.pentair.com/warranty.


 Adobe Acrobat PDF Warranty Information
