Home Pentair SuperFlo Energy Efficient 2 Speed Pool Pump | 230V 1.5HP | 340043
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

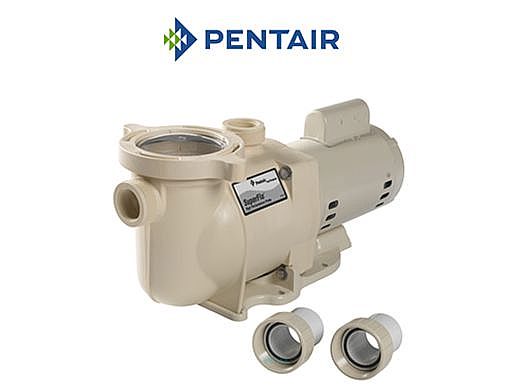

Pentair SuperFlo Energy Efficient 2 Speed Pool Pump | 230V 1.5HP | 340043

Pentair SuperFlo Energy Efficient 2 Speed Pool Pump | 230V 1.5HP | 340043 Pentair SuperFlo Energy Efficient 2 Speed Pool Pump | 230V 1.5HP | 340043 Pentair SuperFlo Energy Efficient 2 Speed Pool Pump | 230V 1.5HP | 340043
This item has been discontinued.

Shipping Flat Rate Shipping $24.95
Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Includes Hi/Lo toggle switch on motor
  • Heavy-duty, high service factor 56 square flange motor
  • Integral volute and pot reduce hydraulic noise
  • Self-priming for quick, easy start-up
Purchase Options
WE SUGGEST THE FOLLOWING ITEM(S) AS A SUITABLE ALTERNATIVE
Direct Replacement
Pentair SuperFlo VST Variable Speed Pump 1.5HP | Almond | 342002
Pentair SuperFlo VST Variable Speed Pump 1.5HP | Almond | 342002
OVERVIEW
The SuperFlo® High Performance Pump is a product of more than 40 years of innovative hydraulic engineering. The result is an ability to move more water more efficiently for lower operating cost and super-quiet operation. Plus, by performing with less effort, there's simply less wear and tear—and that means longer life for a higher return on your pump investment.

The SuperFlo® High Performance Pump meets all the criteria for a superior pool, spa or water feature pump. It’s super energy-efficient, super quiet and super easy to maintain. Plus, it’s designed with innovative materials that will stand up to the most demanding installations and conditions. Whether you’re choosing your first pump or replacing older technology, the SuperFlo pump is definitely a super choice.

Features:
  • With ½ HP–2½ HP, and single- and two-speed options, there’s a perfect match to your application and assurance of minimum energy consumption
  • Cam and Ramp™ lid locks in place with a quarter-turn
  • Heavy-duty, high service factor 56 square flange motor for longlife…commercial grade at a consumer price
  • Quiet operation due to superior internal flow design that reduces hydraulic noise
  • See-through lid permits easy inspection of strainer basket
  • The SuperFlo pump is a direct…and superior…replacement for the Hayward® Super Pump®
  • Self-priming for quick, easy start-up






Brand: Pentair
SPECIFICATIONS
Horsepower
1.5 HP
Speed
Two Speed
Voltage
230V
Pipe Size
1 1/2"
Color
Almond
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 7 questions Browse 7 questions and 8 answers
hi, according to my electrician i have a regular 110 line available for the pool pump, since i can't reach him right now and I'm shopping for pumps, I'm looking at a pentair superflo 1.5 hp, 2 speed, 230v, so i have to ask whats probably obvious my 110 will not cover the power needs of this pump? thanks
A shopper on Jan 17, 2016
BEST ANSWER: Enter aAlthough the motor is wired for 220, it can be wired for 120 if you need to run it at only one speed (either high or low) whenever it’s powered. I bought this motor so that I could run it at low speed for continual water circulation, filtration, and heating. The only time I run it at high speed is briefly for vacuuming, for which a lot of suction is required.

You could run it at high speed all the time with just a 120 circuit, but it’s overkill if you do and very noisy. High speed produces suction that’s dangerous if you’re not careful. It could literally rip the flesh from your hand if you put your hand over the end of the vacuum hose.

I wired mine myself, so I know how it’s wired. I dedicated a 20 amp, 220 Volt breaker to the motor. One hot lead from it powers the slow speed motor windings, and the other hot lead powers the high speed. A third lead, that’s common to both high and low, returns to neutral in the breaker box. To make it all work the way you want it to takes electrical expertise if you’re switching it remotely (as opposed to switching on the motor itself). I control mine from a switch box several feet away.

The motor is an extremely fine and rugged device. My last one lasted 17 years (24-7!) before it began to leak and couldn’t be repaired by changing the seals. My last one could be switched between high and low using a 120 breaker. But they no longer make that model. Note that with the new one you’re never drawing more than 110: the motor is never drawing 220. But to have both high and low alternately available, it must be a 220 circuit. There’s no way around it.
n answer to this question.
what is the motor Service Factor (SF)?
Mohammad A on Sep 23, 2015
BEST ANSWER: Enter an answer t1.15
This means that a 10-hp motor with a 1.15 SF could provide 11.5 hp when required for short-term use. Some fractional horsepower motors have higher service factors, such as 1.25, 1.35, and even 1.50. In general, it's not a good practice to size motors to operate continuously above rated load in the service factor area.o this question.
I have purchased a Pentair WhisperFlo 2-speed 1.5 HP 230V 60HZ motor. It works on high speed, but hums when switch to slow speed. I thought it is the capacitor problem, and replace with another one. It does the same thing. Any advice from anyone?
Chongjun J on Apr 11, 2020
BEST ANSWER: Does it still work but hums? Is the impeller moving water on low? Mine is very quiet on low and semi quiet on high. Wondering if the impeller might just stick when on low.
can switch on dual speed motor easily be bypassed for wiring to contactor ?
Rich G on Jan 16, 2018
BEST ANSWER: The pump speed is controlled by the toggle switch on the pump itself or may be connected a two speed time clock.
I have model 340039 now and needs replacing but is discontinued. Does this model 340043 fit the footprint of my model? Would I be able to drop it in and attach to existing lines?
Suzanne M on Aug 14, 2021
will this need an addtional switch at the timer box or is this drop in relacement for a pentair single speed pump number30039 with 2' lines does this qualify for edision rebate as well at low speed what is flow vs high speed gph?
A shopper on Feb 20, 2020
We have a SandPRO sand system, 3/4 hp--we need to replace the motor (pump) and would like something a little more powerfull, will this work and fit on our current system or do we need the entire system?
Steve on Mar 19, 2017
REVIEWS
5.0 / 5.0
6 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
6
0
0
0
0
Rated 5 out of 5
. Pentair SuperFlo 1.5HP Energy Efficient 2-Speed Pool Pump
Very quite and easy to install. The staff at Pool Supply Unlimited were very knowledgeable and courteous.
October 14, 2018
Purchased
over 3 years ago
Rated 5 out of 5
It’s lower profile than older units so it fits easier and I can’t wait till winter to use the slow speed to save money. It’s vary quiet so I would recommend this unit.
May 29, 2019
Purchased
over 3 years ago
Rated 5 out of 5
I am very pleased with this pump. Versatile and well worth a little extra money.
I am very happy with the Pentair SuperFlo 1.5 hp. There was a little difficulty attaching the two speed switch due to limited wiring space but the technician worked that out. The SuperFlo fit perfectly in the space of the old 1.0 Pentair pump. On low speed it is virtually silent. On high speed the pump really moves the water. I believe this pump will be perfect for the extra power required for adding a small solar panel system for winter use. I believe the electric savings and versatility of two speeds is perfect. Thànks for this option Pentair. Perfect.
February 8, 2021
Purchased
1 year ago
Rated 5 out of 5
Quick delivery and exactly as advertised. Will be doing business with pool supply unlimited in the future.
July 4, 2020
Purchased
1 year ago
Rated 5 out of 5
Quiet and trouble free
Quiet and trouble free. We also noticed our electrical bill decreased
September 22, 2020
Purchased
over 3 years ago
Rated 5 out of 5
Great Pump
Very quiet. Easy to install. Works great. I would recommend this pump. Easy to use.
July 16, 2021
Purchased
10 months ago
RESOURCES
Adobe Acrobat PDF Brochure
Adobe Acrobat PDF Owners Manual

Register your Pentair product online at www.pentair.com.

WARRANTY
You've always been able to count on the quality and long service life of Pentair products. Pentair uses state of the art workmanship, materials and manufacturing processes to create the most innovative pool and spa equipment anywhere. And now Pentair products can deliver even more value and peace of mind, because Pentair offers extended warranty coverage on select products that are installed by a qualified installer*.

While the majority of Pentair products are covered by a sixty- (60) day warranty, a select number of products qualify for extended warranty coverage.

Select Bundled Products: applies to purchases and qualified installation of a minimum of a pump and filter, and one or more of the following: heaters, heat pumps, control systems, automatic cleaners, lighting, salt chlorine generators or UV sterilizer**

*Note: Qualified Installer - Defined as a licensed professional who charges a fee for his services, and possesses a business license, contractor's license and/or resale permit. Common examples of a "qualified installer" include: Swimming Pool, Home Repair or Landscape Professional; Plumber or Electrician; General Contractor; Heating and Air Conditioning Specialist.

**Note: Bundled products - must be purchased on the same invoice and installed at the same time. If any product within a bundle is ineligible for the bundled warranty coverage then all products within the same bundle will be disqualified from receiving the three (3) year extended warranty coverage for bundled products.

TradeGrade products must be purchased from a retail store (brick & mortar), pool builder or pool service company to receive a one-year, two-year or three-year warranty. If purchased online will only receive a sixty-day limited warranty. View the list of TradeGrade Products.

Ecommerce (EC) products: Products purchased from an Authorized Pentair Online Reseller (products beginning with EC-) receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty.

Visit www.pentair.com to submit your product warranty registration.

This information was updated on 11/19/2021. For the most current information and full warranty policy please visit www.pentair.com/warranty.


 Adobe Acrobat PDF Warranty Information
