Home Pentair EQKT500 Commercial TEFC Pool Pump Without Strainer | NEMA Rated | 3 Phase | 208-230 460V 5HP | 340608
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into mid-2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

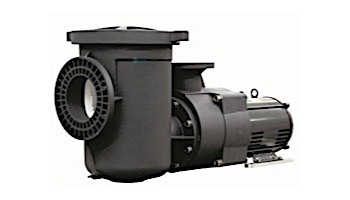

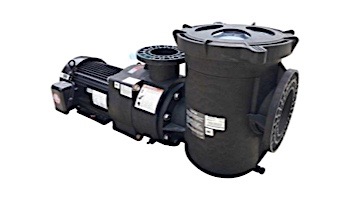

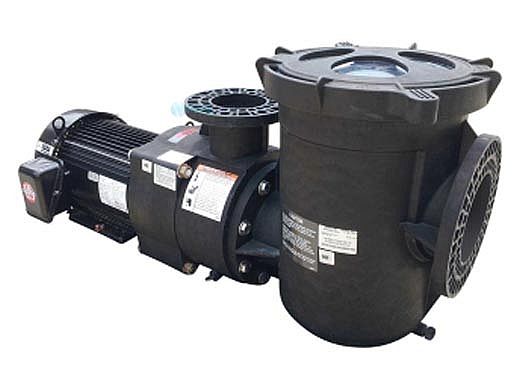

Pentair EQKT500 Commercial TEFC Pool Pump Without Strainer | NEMA Rated | 3 Phase | 208-230 460V 5HP | 340608

Pentair EQKT500 Commercial TEFC Pool Pump Without Strainer | NEMA Rated | 3 Phase | 208-230 460V 5HP | 340608 Pentair EQKT500 Commercial TEFC Pool Pump Without Strainer | NEMA Rated | 3 Phase | 208-230 460V 5HP | 340608

Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Hair and Lint Strainer NOT included with this pump model
  • Available in single- and three-phase models
  • Easy cleaning and serviceability
EQ Series® high performance commercial pumps are designed for maximum efficiency and quiet operation in every detail. They are the only noncorrosive, all plastic pumps designed exclusively for the commercial pool and water applications market. EQ Series impellers are manufactured for true breakthrough performance, allowing for lower loads and longer motor life. Available with and without strainer pot.
Commercial Plastic pump built specifically for commercial and large residential pools. Pump features extraordinary electrical and hydraulic efficiency that pays premiums in low electrical costs, less wear and tear on critical moving parts, and quiet operation.
  • Closed impeller for long life and durability
  • Close coupled for quiet, stable flow operation
  • 6" suction and 4" discharge with strainer pot
  • Closed impeller for long life and durability
  • Available in single- and three-phase models
  • Great for use with Acu Drive™ XS Variable Frequency Drives
  • Self-priming under NSF standards; NSF listed
  • Nema Premium Grade Efficiency Motors
  • Drop-in replacement for C Series Pump
  • Compatible with Acu Drive XS VFD
  • Waterfall models great for low head, high flow applications
  • 50 hz model available - contact factory

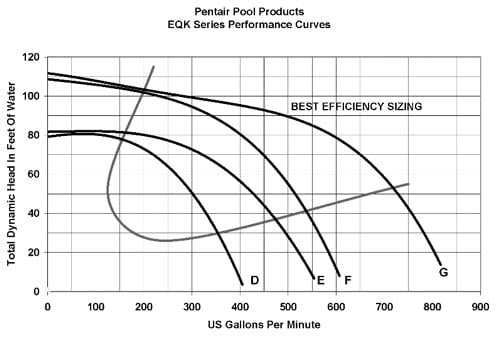

Pump curve letters above are associated with the following pumps:
  • EQK-500=Pump Curve D
  • EQK-750=Pump Curve E
  • EQK-1000=Pump Curve F
  • EQK-1500=Pump Curve G

Brand: Pentair
Horse Power
5 HP
1 Speed
Pipe Size
Three Phase
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question
I have an approx 50' lazy river wrapping around . my pool. What size pump or pumps should I use to o move people through it? 3 to, 5hp, 10 to. thnx
Shadowarrior on Mar 25, 2018
There are no reviews for this item. Write Review
You've always been able to count on the quality and long service life of Pentair products. Pentair uses state of the art workmanship, materials and manufacturing processes to create the most innovative pool and spa equipment anywhere. And now Pentair products can deliver even more value and peace of mind, because Pentair offers extended warranty coverage on select products that are installed by a qualified installer*.
While the majority of Pentair products are covered by a sixty- (60) day warranty, a select number of products qualify for extended warranty coverage.
Select Bundled Products: applies to purchases and qualified installation of a minimum of a pump and filter, and one or more of the following: heaters, heat pumps, control systems, automatic cleaners, lighting, salt chlorine generators or UV sterilizer**
*Note: Qualified Installer - Defined as a licensed professional who charges a fee for his services, and possesses a business license, contractor's license and/or resale permit. Common examples of a "qualified installer" include: Swimming Pool, Home Repair or Landscape Professional; Plumber or Electrician; General Contractor; Heating and Air Conditioning Specialist.
**Note: Bundled products - must be purchased on the same invoice and installed at the same time. If any product within a bundle is ineligible for the bundled warranty coverage then all products within the same bundle will be disqualified from receiving the three (3) year extended warranty coverage for bundled products.
TradeGrade products must be purchased from a retail store (brick & mortar), pool builder or pool service company to receive a one-year, two-year or three-year warranty. If purchased online will only receive a sixty-day limited warranty. View the list of TradeGrade Products.
Ecommerce (EC) products: Products purchased from an Authorized Pentair Online Reseller (products beginning with EC-) receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty.
Visit www.pentair.com to submit your product warranty registration.
This information was updated on 11/19/2021. For the most current information and full warranty policy please visit www.pentair.com/warranty.
