Home Pentair C Series Standard Efficiency Commercial Bronze Pump with Strainer | 3 Phase | 200-208V 10HP | CHK-100 | 347945
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED. Please contact us via Live Chat the quickest response.

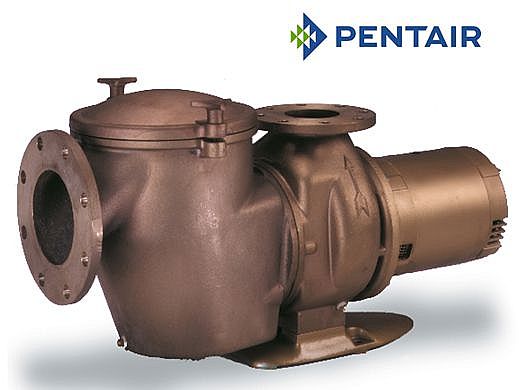

Pentair C Series Standard Efficiency Commercial Bronze Pump with Strainer | 3 Phase | 200-208V 10HP | CHK-100 | 347945

Pentair C Series Standard Efficiency Commercial Bronze Pump with Strainer | 3 Phase | 200-208V 10HP | CHK-100 | 347945 Pentair C Series Standard Efficiency Commercial Bronze Pump with Strainer | 3 Phase | 200-208V 10HP | CHK-100 | 347945 Pentair C Series Standard Efficiency Commercial Bronze Pump with Strainer | 3 Phase | 200-208V 10HP | CHK-100 | 347945 Pentair C Series Standard Efficiency Commercial Bronze Pump with Strainer | 3 Phase | 200-208V 10HP | CHK-100 | 347945
$6,833.95

Quantity:
Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Large commercial pump with s/s basket
  • All-bronze construction for strength and durability
  • 6 in. suction and 4 in. discharge for maximum capabilities
  • Closed impeller for longer motor bearing life
  • Heat-resistant seal capable of operation at up to 150 degrees
OVERVIEW

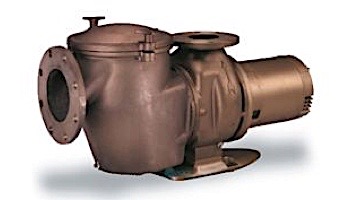

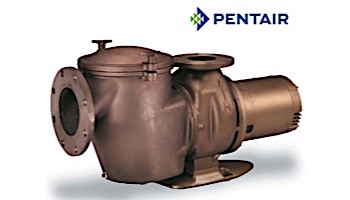

The C Series® pump is a heavy-duty commercial pump specifically designed for large pools, fountains and water attractions that demand high flow rates and continuous operation. With bronze construction and a stainless steel strainer basket, the C Series is perfect for the toughest indoor or outdoor projects. This pumps lasting efficiency, quiet operation, easy maintenance, and durability has set the standard for medium- and high-head performance in the pool industry for many years. Available with and without a hair and lint strainer.

Typical lead time 3 to 5 weeks. Please call for specific information.

 Features:
  • Large commercial pump with s/s basket
  • Easy serviceability
  • Close coupled for quiet, stable flow
  • All-bronze construction for strength and durability
  • 6 in. suction and 4 in. discharge for maximum capabilities
  • Heavy-gauge stainless steel strainer basket with an open area 5 times the area of the suction port
  • Closed impeller for longer motor bearing life
  • Heat-resistant seal capable of operation at up to 150 degrees
  • Available in single and three-phase, 50 and 60-Hertz models


Brand: Pentair
SPECIFICATIONS
Horse Power
10 HP
Speed
1 Speed
Voltage
200-208V
Pipe Size
6"
Color
Bronze
Phase
Three Phase
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!
REVIEWS
There are no reviews for this item. Write Review
RESOURCES
Adobe Acrobat PDF Brochure
Adobe Acrobat PDF Installation & Users Guide
Adobe Acrobat PDF Owners Manual

Register your Pentair product online at www.pentair.com.

WARRANTY
You've always been able to count on the quality and long service life of Pentair products. Pentair uses state of the art workmanship, materials and manufacturing processes to create the most innovative pool and spa equipment anywhere. And now Pentair products can deliver even more value and peace of mind, because Pentair offers extended warranty coverage on select products that are installed by a qualified installer*.

While the majority of Pentair products are covered by a sixty- (60) day warranty, a select number of products qualify for extended warranty coverage.

Select Bundled Products: applies to purchases and qualified installation of a minimum of a pump and filter, and one or more of the following: heaters, heat pumps, control systems, automatic cleaners, lighting, salt chlorine generators or UV sterilizer**

*Note: Qualified Installer - Defined as a licensed professional who charges a fee for his services, and possesses a business license, contractor's license and/or resale permit. Common examples of a "qualified installer" include: Swimming Pool, Home Repair or Landscape Professional; Plumber or Electrician; General Contractor; Heating and Air Conditioning Specialist.

**Note: Bundled products - must be purchased on the same invoice and installed at the same time. If any product within a bundle is ineligible for the bundled warranty coverage then all products within the same bundle will be disqualified from receiving the three (3) year extended warranty coverage for bundled products.

TradeGrade products must be purchased from a retail store (brick & mortar), pool builder or pool service company to receive a one-year, two-year or three-year warranty. If purchased online will only receive a sixty-day limited warranty. View the list of TradeGrade Products.

Ecommerce (EC) products: Products purchased from an Authorized Pentair Online Reseller (products beginning with EC-) receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty.

Visit www.pentair.com to submit your product warranty registration.

This information was updated on 11/19/2021. For the most current information and full warranty policy please visit www.pentair.com/warranty.


 Adobe Acrobat PDF Warranty Information
