Home Pentair UltraTemp Heat and Cool Pump | 140K BTU Heat | 80K BTU Cool 230V | Titanium Heat Exchanger | Digital Controls | Almond | 460958
NOTICE: The Texas weather emergency in February, in addition to the ongoing demand increase for pool products from the Covid pandemic, have caused industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product arrives. Many times there are long shipping delays on the few products we do have in stock. Please contact us to ask about availability. Live Chat and email will get the quickest response.

Pentair UltraTemp Heat and Cool Pump | 140K BTU Heat | 80K BTU Cool 230V | Titanium Heat Exchanger | Digital Controls | Almond | 460958

Pentair UltraTemp Heat and Cool Pump | 140K BTU Heat | 80K BTU Cool 230V | Titanium Heat Exchanger | Digital Controls | Almond | 460958 Pentair UltraTemp Heat and Cool Pump | 140K BTU Heat | 80K BTU Cool 230V | Titanium Heat Exchanger | Digital Controls | Almond | 460958
Customer Login Required
Please login to view price and order or click here to register.


Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Simply the most economical way to heat pools and spas
  • The industry's first heat pump charged with non-ozone depleting refrigerant, R410A
  • 100% pure titanium heat exchanger assures corrosion-free performance for extra long life
  • Compatible with ALL automated control packages
OVERVIEW
Best in class performance and efficiency. Environmentally superior. More standard features than any other.

Heat your pool with an environmentally friendly heat pump. Pentair's UltraTemp heat pump uses an ozone-friendly refrigerant and has a 100% pure titanium heat exchanger that assures corrosion-free performance for extra-long life.

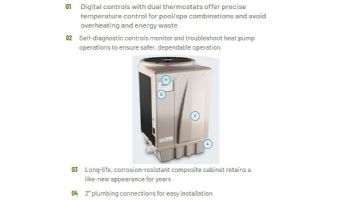

Energi Conscious: The UltraTemp heat pump provides digital controls with dual thermostats to offer precise temperature control for pool/spa combinations. This way, you can avoid overheating and energy waste.
Autoset Temperature Control: This standard feature monitors water temperature and turns the pump on and off as needed, overriding the time clock to maintain desired temperature. It's the ultimate in convenient, hands-free comfort control.
Easy, Dependable Operation: UltraTemp's LCD control board displays an intuitive, menu-driven readout with easy to follow, full word messages—no codes to memorize. Its self-diagnostic software continuously monitors the system for peak performance. And, the heat pump's ETL listing is your assurance of safer, dependable operation.

Automation Compatible

The UltraTemp heat pump is the perfect companion to IntelliTouch® or EasyTouch® Control Systems. All heat pump instructions and displays can be transferred to a centralized control system that manages all your pool/spa operations and poolscape features.

Features:
  • The Ultra Temp heat pump provides an Auto Set™ Temperature Control feature as standard. It monitors water temperature and turns the pump on and off as needed, overriding the time clock to maintain desired temperature. It's the ultimate in convenient, hands-free comfort control.
  • The Ultra Temp heat pump features the legendary Emerson® Copeland Scroll® Compressor that's more efficient, durable, reliable and quieter than any piston-driven compressor*. It's the best of the best.
  • Pentair® heat pumps have been using the EPA-recognized, environmentally safe, non-ozone depleting R-410A refrigerant for nearly 10 years. This has allowed the Ultra Temp heat pump to be awarded the Eco Select® brand for environmental responsibility.
  • 100% titanium heat exchanger assures corrosion-free performance for extra long life and value.
  • LCD control board displays an intuitive, menu-driven readout with easy to follow, full word messages—no codes to memorize.
  • Self-diagnostic software continuously monitors system for peak performance.
  • Thermostatic Expansion Valve (TXV) controls refrigerant flow for optimum efficiency and BTU output over a wider operating temperature range.
  • Automatic defrost feature senses refrigerant temperature and helps prevent the Ultra Temp heat pump from freezing, allowing the unit to operate effectively at even lower temperatures than many competing products.
  • Perfect companion to IntelliTouch® or EasyTouch® Control Systems—all heat pump instructions and displays can be transferred to a centralized control system that manages all your pool/spa operations and poolscape features.
  • ETL listing is your assurance of safer, dependable operation.
  • BTU and efficiency independently certified by the Air Conditioning, Heating, and Refrigeration Institute (AHRI). The AHRI Certified mark is applied only to HVACR equipment and components that have been independently tested to certify that manufacturers’ performance claims are accurate.
  • 10-year compressor parts and labor warranty and lifetime warranty on the titanium heat exchanger. See limited warranty for details.


Brand: Pentair
SPECIFICATIONS
BTU Rating
140K
Voltage
230V
Phase
Single Phase
Heat or Heat/Cool
Heat & Cold
Color
Almond
Type
Digital
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 9 questions Browse 9 questions and 12 answers
What is the footprint of the unit? The specifications do not provide the dimensions.
John H on Jul 17, 2020
What is the average monthly electric usage? Trying to determine impact to electric bill - assuming this is a 50amp unit.
Chuck on Jan 7, 2016
BEST ANSWER: It all depends on the amount of time you run the unit. We only use it chilling our pool in the summer months. We try to keep the water temp around 84 degrees. I recall the added cost per month at a high is $150. I think our electric cost is .09 per kw
Is there an app to control pump operation from my iPhone?
whabbear on Dec 3, 2015
BEST ANSWER: Not to my knowledge
How loud when running?
Bud M on Feb 6, 2017
BEST ANSWER: Not very. Not really any louder than pump. About the same as an central ac compressor. Maybe a little quieter. Ours is next to house on same wall as bedroom. Can't hear it inside.
Works really well. I ran it for 5 days in Jan, kept the temp at 85. Cost me $40.00.
We use the chiller quite a bit in the summer. Just turn it on an hour or so before we know we will use the pool. Doesn't chill the whole pool in that time obviously but with the waterfall on it really seems to cool.
Does this work with the Intellitouch control panel?
G J on Jul 22, 2018
We this work with the Pentair screenlogic application and the automation control box?
G J on Jul 22, 2018
If an electric heater what is needed as far as plug? 220v?
A shopper on Mar 15, 2017
BEST ANSWER: 220...this is a great and economical heat pump and chiller...very happy with it after 2 years.
what is the KW on the Pentair UltraTemp Heat and Cool Pump | 140K BTU Heat | 80K BTU Cool | Titanium Heat Exchanger?
A shopper on Mar 6, 2018
BEST ANSWER: I DO NOT KNOW THE RUNNING AMP DRAW. THEY DO GET WIRED WITH A 50 AMP SINGLE PH.208/230 SURVICE BREAKER. P.S. I LOVE THE PROFORMANCE OF THIS UNIT
Is this pump large enough to heat and cool a 15 by 30€™ pool that is 5 feet deep? I live I Charleston SC.
Liltim on Oct 14, 2020
REVIEWS
5.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
0
0
0
0
Rated 5 out of 5
Awesome unit....
When it gets real hot here in Texas my pool will be nice, refreshing and cool.happy happy
April 17, 2021
Purchased
7 months ago
RESOURCES
Adobe Acrobat PDF Brochure
Adobe Acrobat PDF Installation & Users Guide
Adobe Acrobat PDF Replacement Parts

Register your Pentair product online at www.pentair.com.

WARRANTY
  • LIMITED WARRANTY: Pentair warrants its products to be free from defects in material and/or workmanship for a period of sixty (60) days (parts only) from the original date of purchase and/or installation. Customer agrees to prepay all shipping charges to Pentair.
  • EXTENDED WARRANTY: To receive a product extended warranty (longer than 60 days from the original date of installation), customer must:
  1. Register the product;
  2. Provide a copy of the sales receipt; and
  3. Provide a copy of the installation invoice, provided by the qualified installer, within 60 days of installation (if required). Certain products do not require qualified installation but still require product registration and copy of the sales receipt to receive the extended warranty.
  • TRADEGRADE WARRANTY: TradeGrade products must be purchased from a retail store (brick and mortar), pool builder or pool service company. If purchased online (via internet) the product will only receive a sixty (60) day limited warranty. View the list of TradeGrade products here.
  • ECOMMERCE (EC) WARRANTY: Products purchased from an Authorized Pentair Online Reseller receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty. To receive an eCommerce warranty, customer must:
  1. Register the product, and
  2. Provide a copy of the sales receipt

Visit www.pentair.com to submit your product warranty registration.

This information was updated on 04/05/2021. For the most current information and full warranty policy please visit www.pentair.com/warranty.
