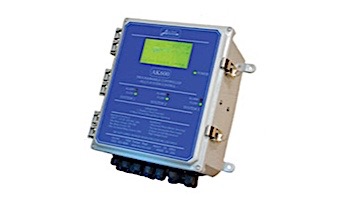

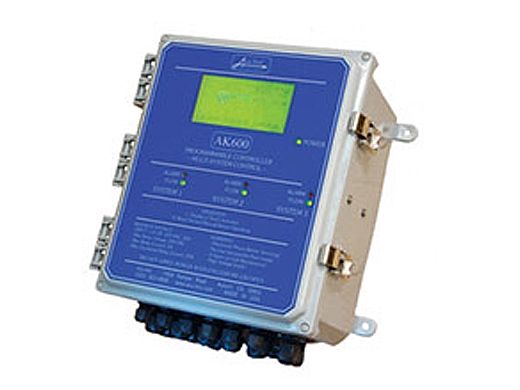

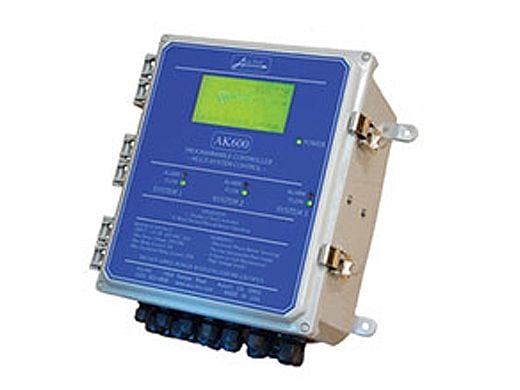

Pentair Acu-Trol Programable AK600PS-A1 Controller AK600, 1 Body, pH, ORP, Temp, FC | 701000170

$5,171.40

Multi-Funcional Full Equipment Room Controller

The Acu-Trol AK600 controller is the most advanced multiple pool controller available, providing the ultimate in equipment room automation. Up to sixteen output relay combinations, configurable for up to six types of control. The Acu-Trol AK600 controller can be customized for any facility, with voltage-configurable control relays and bi-directional control, database information options accessible via direct link, dial-up, wireless modem and ethernet connectivity. With control of chemicals, pumps, filters, heaters, air handlers, chloramine reduction systems and the ability to interface with building management systems for up to 3 bodies of water, the Acu-Trol AK600 controller completes any aquatic facility.

Standard Features

AcuCom™ Software
Multiple pool control for 1, 2 or 3 pool configurations
Programmable pH, ORP and temperature set points
Programmable proportional feed for precise chemical feed
Programmable acid, CO2 or base feed for pH control
Auto backwash filters for up to two bodies of water
Flow cell with built-in flow switch, shut-off valves, inlet strainer and sampling port
16 relays with three (3) voltage configurations

Programmability

ORP calibration
pH, ORP and temperature set point
ORP super-chlorination
PPM control
Temperature calibration
Proportional feed
Feeder ON and OFF times
Mix times and cycle times
Overfeed lock out times
Acid/Base feed pH control
Auto backwash filter settings
Water level

Programmability

ORP calibration
pH, ORP and temperature set point
ORP super-chlorination
PPM control
Temperature calibration
Proportional feed
Feeder ON and OFF times
Mix times and cycle times
Overfeed lock out times
Acid/Base feed pH control
Auto backwash filter settings
Water level

Alarms

pH Alarms

pH set point ± percentages
Overfeed disables pH feed
Flow switch disables pH feed
High pH disables sanitizer feed

ORP Alarms

ORP set point ± percentages
Overfeed disables disinfectant feed
Flow switch disables feed

Auto probe clean

16 pager numbers

7 passwords

Optional Connections

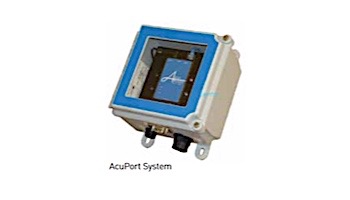

The AcuPort system provides connectivity via Ethernet, Wifi or RS-422/485 communication interfaces. The port provides dedicated communication to either the Acu-Trol AK110, AK600 or AK400 Controllers. New features for the AcuCom software application offer direct connection via TCP/IP.

Brand: Pentair

REVIEWS

Q&A

Pentair Acu-Trol Programable AK600PS-A1 Controller AK600, 1 Body, pH, ORP, Temp, FC | 701000170

$5,171.40

Quantity

Platinum Preferred Manufacturer

Proposition 65 Warning

Purchase options

Product description

Multi-Funcional Full Equipment Room Controller

Standard Features

AcuCom™ Software
Multiple pool control for 1, 2 or 3 pool configurations
Programmable pH, ORP and temperature set points
Programmable proportional feed for precise chemical feed
Programmable acid, CO2 or base feed for pH control
Auto backwash filters for up to two bodies of water
Flow cell with built-in flow switch, shut-off valves, inlet strainer and sampling port
16 relays with three (3) voltage configurations

Programmability

ORP calibration
pH, ORP and temperature set point
ORP super-chlorination
PPM control
Temperature calibration
Proportional feed
Feeder ON and OFF times
Mix times and cycle times
Overfeed lock out times
Acid/Base feed pH control
Auto backwash filter settings
Water level

Programmability

ORP calibration
pH, ORP and temperature set point
ORP super-chlorination
PPM control
Temperature calibration
Proportional feed
Feeder ON and OFF times
Mix times and cycle times
Overfeed lock out times
Acid/Base feed pH control
Auto backwash filter settings
Water level

Alarms

pH Alarms

pH set point ± percentages
Overfeed disables pH feed
Flow switch disables pH feed
High pH disables sanitizer feed

ORP Alarms

ORP set point ± percentages
Overfeed disables disinfectant feed
Flow switch disables feed

Auto probe clean

16 pager numbers

7 passwords

Optional Connections

Features and details

Resources

Warranty

You've always been able to count on the quality and long service life of Pentair products. Pentair uses state of the art workmanship, materials and manufacturing processes to create the most innovative pool and spa equipment anywhere. And now Pentair products can deliver even more value and peace of mind, because Pentair offers extended warranty coverage on select products that are installed by a qualified installer*.

While the majority of Pentair products are covered by a sixty- (60) day warranty, a select number of products qualify for extended warranty coverage.

Select Bundled Products: applies to purchases and qualified installation of a minimum of a pump and filter, and one or more of the following: heaters, heat pumps, control systems, automatic cleaners, lighting, salt chlorine generators or UV sterilizer**

*Note: Qualified Installer - Defined as a licensed professional who charges a fee for his services, and possesses a business license, contractor's license and/or resale permit. Common examples of a "qualified installer" include: Swimming Pool, Home Repair or Landscape Professional; Plumber or Electrician; General Contractor; Heating and Air Conditioning Specialist.

**Note: Bundled products - must be purchased on the same invoice and installed at the same time. If any product within a bundle is ineligible for the bundled warranty coverage then all products within the same bundle will be disqualified from receiving the three (3) year extended warranty coverage for bundled products.

TradeGrade products must be purchased from a retail store (brick & mortar), pool builder or pool service company to receive a one-year, two-year or three-year warranty. If purchased online will only receive a sixty-day limited warranty. View the list of TradeGrade Products.

Ecommerce (EC) products: Products purchased from an Authorized Pentair Online Reseller (products beginning with EC-) receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty.

Visit www.pentair.com to submit your product warranty registration.

This information was updated on 11/19/2021. For the most current information and full warranty policy please visit www.pentair.com/warranty.
