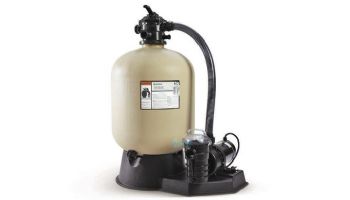

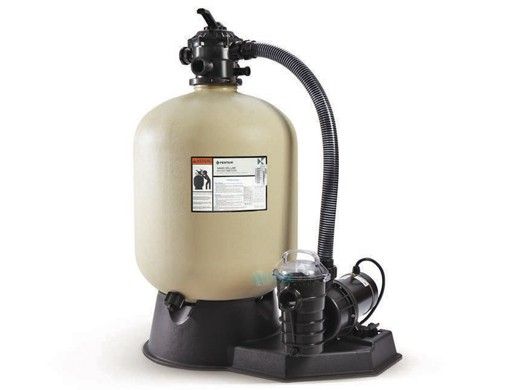

Pentair Sand Dollar SD60 Above Ground Pool Sand Filter System | 22" Filter 1HP Pump | 3' Twist Lock Cord | 6' Hose Kit | EC-PNSD0060OE1160

Pentair Sand Dollar SD60 Above Ground Pool Sand Filter System | 22" Filter 1HP Pump | 3' Twist Lock Cord | 6' Hose Kit | EC-PNSD0060OE1160
$729.00

Quantity:
Parts AvailableParts Available
Platinum Preferred Manufacturer
OVERVIEW
SPECIFICATIONS
Q & A
REVIEWS
RESOURCES
WARRANTY
FOR YOU
PARTS
OVERVIEW
So Clean, Clear and Easy

Pentair have combined the efficient Sand Dollar filter with the powerful and economical Dynamo® Aboveground Pool Pump to create this high performance system for aboveground pools. With its rugged construction, highly efficient design and hydraulically matched components, this system provides all the clean, crystal clear water your pool requires. Plus, it's built with long-term reliability in mind, and it's incredibly simple to operate and maintain.

Filter System Includes:
  • 1 HP Dynamo pump
  • 19" Sand Dollar filter
  • Top mount multi-position valve
  • 6' Hose kit
  • 3' Twist lock pump cord
Sand Dollar Filter Features
  • Special internal filter design keeps the sand bed level-critical for consistent performance and extended filter cycles.
  • One-piece thermoplastic filter tank for exceptional strength, corrosion resistance and long life.
  • Filter design ensures that water is exposed to maximum sand surface area for optimum filtration performance and efficient backwashing.
Dynamo Pump Features
  • Constructed with fiberglass-reinforced components for superior strength, reliability and longevity.
  • Large pump strainer basket extends time between cleanings.
  • See-thru strainer pot lid for easy inspection and cleaning.
  • Self-priming pump design protects internal components and ensures long life.
Engineered for Simple Operation
Pool filter operation doesn't come any easier than this. The Sand Dollar Hi-Flow™ Valve puts all filter functions right at your fingertips-just rotate the handle to the desired position and the Sand Dollar filter does the rest for sure and simple operation.
  • 6 function, 1-1/2" multiport valve features pressure gauge and manual air relief for easy, safer monitoring and service.
  • Combination water and sand drain makes servicing and winterizing fast and easy.
  • System is designed for quiet, energy-efficient performance.
Specifications:
Model Number Filter Area
Sq. Ft
Filter Diameter Required Sand*
(lbs)
Flow Rate**
(GPM)
Turnover Capacity in Gallons
(Based on Filter Size)
8 Hour 10 Hour 12 Hour
SD35 1.4 16" 100 35 16,800 21,000 25,200
SD40 1.8 19" 150 40 19,200 24,000 28,800
SD60 2.3 22" 250 60 28,800 36,000 43,200
*250 lbs No. 20 standard silica filter media sand required. No. 20 silica sand has a particle size of .018-.022 inches (.45 to.55mm).
**Maximum flow rate


Brand: Pentair
SPECIFICATIONS
Tank Diameter
22"
Pump Horse Power
1 HP
Gallons Per Minute
60
Filter Square Foot
2.3
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!
REVIEWS
There are no reviews for this item. Write Review
RESOURCES
Adobe Acrobat PDF Brochure
Adobe Acrobat PDF Owners Manual

Register your Pentair product online at www.pentair.com.

WARRANTY
  • LIMITED WARRANTY: Pentair warrants its products to be free from defects in material and/or workmanship for a period of sixty (60) days (parts only) from the original date of purchase and/or installation. Customer agrees to prepay all shipping charges to Pentair.
  • EXTENDED WARRANTY: To receive a product extended warranty (longer than 60 days from the original date of installation), customer must:
  1. Register the product;
  2. Provide a copy of the sales receipt; and
  3. Provide a copy of the installation invoice, provided by the qualified installer, within 60 days of installation (if required). Certain products do not require qualified installation but still require product registration and copy of the sales receipt to receive the extended warranty.
  • TRADEGRADE WARRANTY: TradeGrade products must be purchased from a retail store (brick and mortar), pool builder or pool service company. If purchased online (via internet) the product will only receive a sixty (60) day limited warranty. View the list of TradeGrade products here.
  • ECOMMERCE (EC) WARRANTY: Products purchased from an Authorized Pentair Online Reseller receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty. To receive an eCommerce warranty, customer must:
  1. Register the product, and
  2. Provide a copy of the sales receipt

Visit www.pentair.com to submit your product warranty registration.

This information was updated on 04/05/2021. For the most current information and full warranty policy please visit www.pentair.com/warranty.


 Adobe Acrobat PDF Warranty Information
