Pentair Stainless Steel Submersible Pool Service Pump | .75HP 115V 15' Power Cord | PCD-1000

$628.40
Pentair Stainless Steel Submersible Pool Service Pump | .75HP 115V 15' Power Cord | PCD-1000

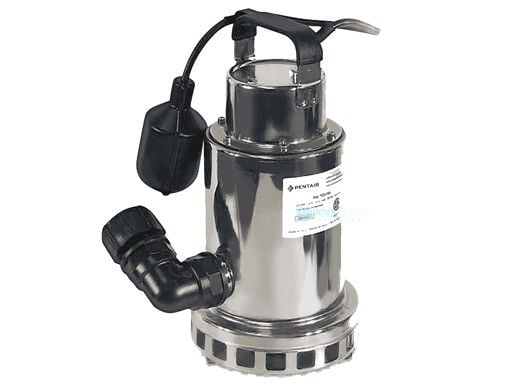

The PCD–1000 submersible, portable, high capacity pump designed for use by the professional in draining pools and spas as well as for general purpose applications, now has improved flow rates, and stainless steel casing, suction strainer, impeller and shaft for greater corrosion resistance and longer service life.

The PCD-1000 can pump water down to 1-3/8 inches in depth. Debris and stones up to 3/4 inch are able to pass through the pump. It also features a 1-1/4 inch discharge port for faster draining. Discharge port adapters are included. Optional float switch included; switch stops pump when low water level reached. Remove float switch for constant run.

Standard Features:
  • 115V, 60 Hz, single phase, permanent split capacitor motor
  • Automatic thermal overload protection
  • Clog-resistant cast stainless steel impeller
  • Accommodates water temperatures ranging from 32°F to 130°F
  • Permanently lubricated ball bearings
  • Equipped with 15-foot, 18/3 grounding-type power cord
  • Convenient, top-mounted handle
  • Rubber feet to eliminate scratching
Adaptors Included:
  • 1-1/4 inch female NPT elbow
  • 1-1/4 inch male NPT to 1-1/2 inch female NPT adaptor
  • Optional float switch included
Series Specifications

Pump Performance TDH/GPM
Shut Off Head
TDH
5' 10'
15'
20'
26.2'
GPM 45.5 34.0 21.5 12.0
N/A

Model HP Motor
Full Load
(Amps)
RPM Minimum Circuit Required Liquid Temperature Range Switch Setting
On     |    Off
Pumps Down to
 PCD-1000   3/4  6.4 3450
15 amps
32/130 F
0/54 C
12"     |      6"
     30cm  |   15.2cm
1-3/8"
3.5cm


Brand: Pentair
