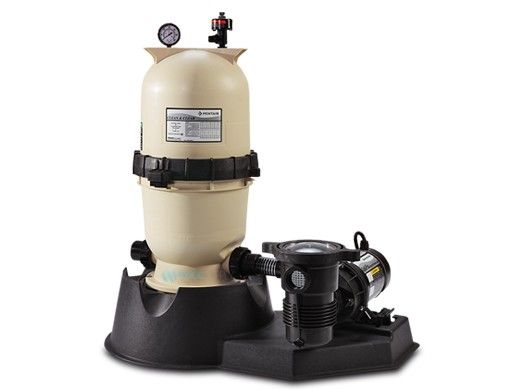

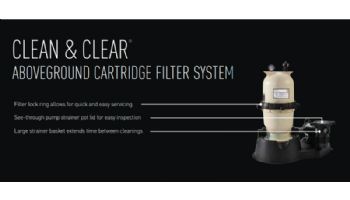

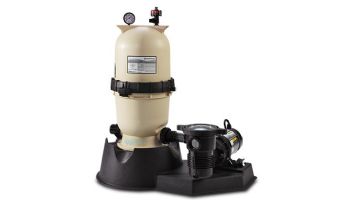

Pentair have paired their dependable OptiFlo® Aboveground Pump with the highly efficient Clean & Clear filter to create this high performance system for aboveground pools. Rugged, efficient and simple to operate, these perfectly matched components will keep your aboveground pool clean, clear and inviting-with minimal care.



Clean & Clear filter systems come in a variety of sizes and horsepowers to suit any aboveground pool configuration. And, the high performance OptiFlo pump is quiet and energy efficient, and will provide years and years of superior operation.



So, if you're looking for top-end aboveground system performance with minimal maintenance, look no further than the Clean & Clear filter system from Pentair.



Model Number	Filter Area Sq. Ft.	Vertical Clearance*	Filter Diameter	Flow Rate GPM**	Turnover Capacity-Res. (Gallons)
					8 Hours.	10 Hours.	12 Hours.
CC50	50	37"	15.5"	50	24,000	30,000	36,000
CC75	75	46"	15.5"	75	36,000	45,000	54,000
CC100	100	68"	15.5"	100	48,000	60,000	72,000
CC125	125	68"	15.5"	125	60,000	75,000	90,000
CC150	150	83"	15.5"	150	72,000	90,000	108,000
CC175	175	83"	15.5"	150	72,000	90,000	108,000
CC200	200	83"	15.5"	150	72,000	90,000	108,000

*Clearance to remove filter module when sitting on base

**Maximum flow rate. Flow rate and turnover capacity based on filter

You've always been able to count on the quality and long service life of Pentair products. Pentair uses state of the art workmanship, materials and manufacturing processes to create the most innovative pool and spa equipment anywhere. And now Pentair products can deliver even more value and peace of mind, because Pentair offers extended warranty coverage on select products that are installed by a qualified installer*.



While the majority of Pentair products are covered by a sixty- (60) day warranty, a select number of products qualify for extended warranty coverage.



Select Bundled Products: applies to purchases and qualified installation of a minimum of a pump and filter, and one or more of the following: heaters, heat pumps, control systems, automatic cleaners, lighting, salt chlorine generators or UV sterilizer**



*Note: Qualified Installer - Defined as a licensed professional who charges a fee for his services, and possesses a business license, contractor's license and/or resale permit. Common examples of a "qualified installer" include: Swimming Pool, Home Repair or Landscape Professional; Plumber or Electrician; General Contractor; Heating and Air Conditioning Specialist.



**Note: Bundled products - must be purchased on the same invoice and installed at the same time. If any product within a bundle is ineligible for the bundled warranty coverage then all products within the same bundle will be disqualified from receiving the three (3) year extended warranty coverage for bundled products.



TradeGrade products must be purchased from a retail store (brick & mortar), pool builder or pool service company to receive a one-year, two-year or three-year warranty. If purchased online will only receive a sixty-day limited warranty. View the list of TradeGrade Products.



Ecommerce (EC) products: Products purchased from an Authorized Pentair Online Reseller (products beginning with EC-) receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty.



Visit www.pentair.com to submit your product warranty registration.
