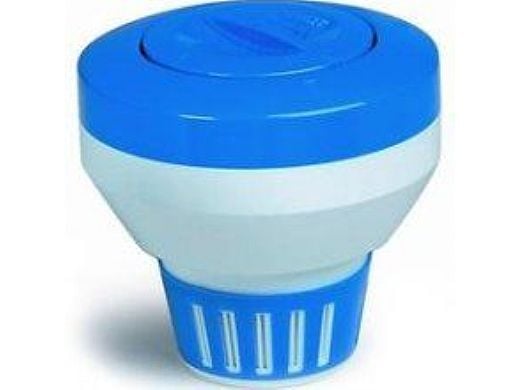

For cap removal or replacing, align notch in cap with the 2 lines on body.

1. To unlock and remove cap, twist counter clockwise (see arrow on lid).

2. Fill dispenser with 1" or 3" trichlor or bromine tablets. (NEVER MIX CHEMICALS) See warning on top of dispenser.

3. Replace cap by turning clockwise (see arrow on lid) until cap clicks into full lock position.

4. Adjust feed rate by turning bottom collar. The larger the opening the greater the feed rate.



Some experimentation may be required to achieve desired result.

Note:This is not a toy. It is recommended that dispenser be removed when pool is in use by children or a heavy bather load. If Cap is not locked securely and dispenser tips over, tablets can fall out and bleach pool surface.



Remove cap and position screen inside chamber before filling with tablets. This will prevent small pieces of tablet from slipping through adjustment collar openings and bleaching liner.



Used to prevent dispenser from floating away and keep it in a desired area of the pool. Leash has a 36" cord and anchor plate with pressure sensitive pad to adhere to most surfaces. Slip cord or cords through hole in center of cap and tie knot. To keep dispenser from moving at all use additional Leash as shown in.



#R18729B Fits "B" Body

#R18729 Fits earlier Model "A" Body

You've always been able to count on the quality and long service life of Pentair products. Pentair uses state of the art workmanship, materials and manufacturing processes to create the most innovative pool and spa equipment anywhere. And now Pentair products can deliver even more value and peace of mind, because Pentair offers extended warranty coverage on select products that are installed by a qualified installer*.



While the majority of Pentair products are covered by a sixty- (60) day warranty, a select number of products qualify for extended warranty coverage.



Select Bundled Products: applies to purchases and qualified installation of a minimum of a pump and filter, and one or more of the following: heaters, heat pumps, control systems, automatic cleaners, lighting, salt chlorine generators or UV sterilizer**



*Note: Qualified Installer - Defined as a licensed professional who charges a fee for his services, and possesses a business license, contractor's license and/or resale permit. Common examples of a "qualified installer" include: Swimming Pool, Home Repair or Landscape Professional; Plumber or Electrician; General Contractor; Heating and Air Conditioning Specialist.



**Note: Bundled products - must be purchased on the same invoice and installed at the same time. If any product within a bundle is ineligible for the bundled warranty coverage then all products within the same bundle will be disqualified from receiving the three (3) year extended warranty coverage for bundled products.



TradeGrade products must be purchased from a retail store (brick & mortar), pool builder or pool service company to receive a one-year, two-year or three-year warranty. If purchased online will only receive a sixty-day limited warranty. View the list of TradeGrade Products.



Ecommerce (EC) products: Products purchased from an Authorized Pentair Online Reseller (products beginning with EC-) receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty.



Visit www.pentair.com to submit your product warranty registration.
