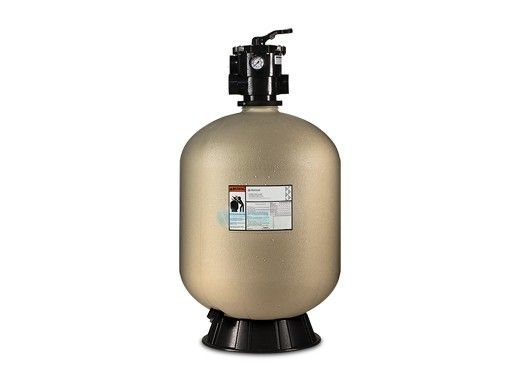

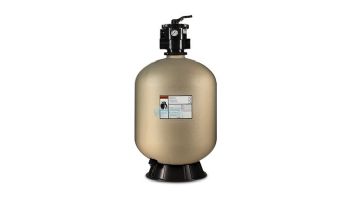

Home Pool SALE Filters & Cartridges Pentair Sand Dollar SD60 22" Top Mount Sand Filter with Clamp Style 1.5" Multiport Backwash Valve | 2.3 Sq. Ft. | EC-145322

Pentair Sand Dollar SD60 22" Top Mount Sand Filter with Clamp Style 1.5" Multiport Backwash Valve | 2.3 Sq. Ft. | EC-145322

$569.00
Login to View Member's Only Pricing or click here to register.
Pentair Sand Dollar SD60 22" Top Mount Sand Filter with Clamp Style 1.5" Multiport Backwash Valve | 2.3 Sq. Ft. | EC-145322
So Clean, So Clear, So Easy

The Sand Dollar filter is the perfect high-performance sand filter. It's incredibly simple to operate and maintain, and it's built with long-term reliability in mind. Plus, its highly efficient design provides all the clean, crystal-clear water your pool requires year after year.

Pool water is routed through the sand-filled pressure vessel. The sand traps particles so small they are undetectable to the naked eye. Over time, dirt accumulates in the spaces between the sand particles, causing the pressure in the vessel to rise. This signals you to "backwash" the filter by simply reversing the water flow and "knocking out" the dirt.

All Pentair sand filters feature a special internal design that maintains the sand bed level and ensures even water flow. That results in the most efficient filtration possible.
  • One-piece thermoplastic tank for exceptional strength, corrosion resistance and long life.
  • Combination water and sand drain makes servicing and winterizing fast and easy.
  • Special internal design maintains sand bed level for consistent performance and extended time between cleaning cycles.
  • Attractive almond color blends with any outdoor décor
For Maximum Water Clarity.

Pool filter operation doesn't come any easier. The multi-port valve of the Sand Dollar filter puts all filter functions right at your fingertips - just rotate the handle to the desired position, and the Sand Dollar filter does the rest for sure and simple operation.
  • Top mount, six-function, 11 1-1/2" multi-port valve features a pressure gauge and manual air relief for optimum filtration efficiency.
  • Internal design ensures that water is exposed to maximum sand surface area for superior filtration performance and efficient backwashing.
  • Large-capacity SD 80 model is available with 11-1/2" or 2" valve.
Specifications:
Item
Number
Model
Number
Filter Area
Sq. Ft.
Vertical
Clearance*
Filter
Diameter
Required
Sand+ (lbs.)
Flow Rate
GPM**
Filter Turnover Capacity-Res. (Gallons)
8 hrs. 10 hrs. 12 hrs.
145315 SD 35 1.40 36.75" 16.50" 100 35 16,800 21,000 25,200
145320 SD 40 1.80 46.00" 19.50" 150 40 19,200 24,000 28,800
145322 SD 60 2.30 50.50" 22.50" 250 60 28,800 36,000 43,200
145367 SD 70 3.15 73.00" 24.00" 300 70 33,600 42,000 50,400
145367 SD 80*** 3.50 74.00" 26.00" 350 75 36,600 45,000 54,000
+Use Standard #20 silica sand, *Required clearance to remove the value, **Maximum flow rate, ***SD 80 available with 1-1/2" or 2" value
