Home Raypak Raytherm Natural Gas Commercial Indoor Swimming Pool Heater | 1467.0 MBTUH Unitherm Governor | Altitude 0-2000 Ft | P-1468 #48 001350
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

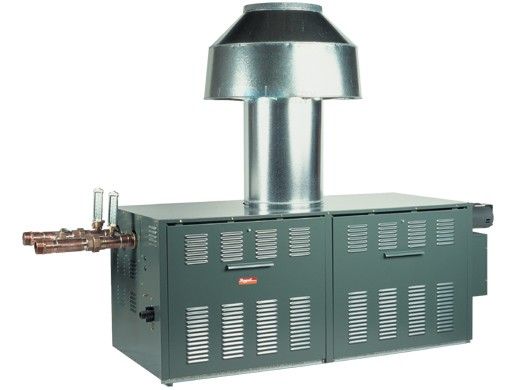

Raypak Raytherm Natural Gas Commercial Indoor Swimming Pool Heater | 1467.0 MBTUH Unitherm Governor | Altitude 0-2000 Ft | P-1468 #48 001350

$8,684.48
Raypak Raytherm Natural Gas Commercial Indoor Swimming Pool Heater | 1467.0 MBTUH Unitherm Governor | Altitude 0-2000 Ft | P-1468 #48 001350

Features:

  • Rugged All-Brass Headers
    Resist corrosion, and are easily removed for inspection or service. AB 1953 low-lead complaint.
  • Cupro-nickel Finned-tube
    Single bank, straight through design delivers lowest pressure drop. Integral fins have ten times the heat transfer surface of plain tubes.  Cupro-nickel tubes provide superior chemical resistance over copper for tough commercial installations.
  • On-off Operation.
  • Corrosion Resistant Steel
    Fittings are brushgalvanized against rust. Heat shields are corrosion-resistant steel. Jacket has Polytuf powder coat finish.
  • 24-Volt Controls
    Are totally enclosed for protection. Cover is easily removed for inspection and service.
  • Floating Return Header
    Immunizes heat exchanger to thermal shock.
  • Tube Sheet and “O” Ring Construction
    Eliminates the repair and maintenance problems associated with rolling tubes directly into a casting.
  • Interlocking Refractory Panels
    With sealed corners reduce radiation losses.
  • Stainless Steel Burners
    Maintain precise combustion, burn quietly and won’t clog or corrode.
  • Slide-out Burner Tray
    Allows easy inspection and service.
  • Spark-to-Pilot Ignition
    The most dependable ignition method available.
  • Available for natural gas or propane.

Bypass Options:

  • Unitherm Governor (std on 962-1223)
    This provides a temperature-activated valve inside the header which varies flow through the heat exchanger.  No pump on the heater.  Flow comes from an external source.
  • H-Style Bypass (std on 1336-1826)
    This provides a larger manually-set bypass to bring heated water back to the inlet, raising the temp inside the heat exchanger.  For size 1336, the H-bypass is horizontal with a rear-mounted pump.  For sizes 1468-1826, the H-bypass is vertical with a front-mounted pump.
  • None (field-supplied)
    Protection provided by others and mounted in the field.
  • Cold-Water Run (CWR)
    This approach uses digital controls to vary the performance of a variable-speed pump which governs how much heated water is returned to the inlet.  Performance is adjusted in real time.
BASIC DATA
Model
Number
Full Input BTUHIndoor
Stack Dia.
Bypass Options
Unitherm GobernorH-Style BypassNone (Field-Supplied)CWR
P-962961,70014"STD, no pumpYesYesYes
P-11251,124,70016"STD, no pumpYesYesYes
P-12231,222,50016"STD, no pumpYesYesYes
P-13361,336,60018" STD, rear pumpYesYes
P-14681,467,00018" STD, rear pumpYesYes
P-16311,630,00018" STD, rear pumpYesYes
P-18261,825,60020" STD, rear pumpYesYes


Brand: Raypak
