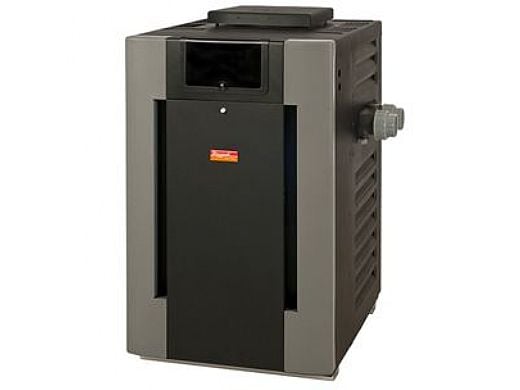

Home Pool SALE Pool & Spa Heaters Raypak Analog Propane Gas Pool Heater 266k BTU | Millivolt Standing Pilot | P-M266A-MP-C 009919 P-R266A-MP-C 009201

Raypak Analog Propane Gas Pool Heater 266k BTU | Millivolt Standing Pilot | P-M266A-MP-C 009919 P-R266A-MP-C 009201

$3,424.00
Raypak Analog Propane Gas Pool Heater 266k BTU | Millivolt Standing Pilot | P-M266A-MP-C 009919 P-R266A-MP-C 009201
Raypak Analog Propane Gas Pool Heater 266k BTU | Millivolt Standing Pilot | P-M266A-MP-C 009919 P-R266A-MP-C 009201
Raypak Analog Propane Gas Pool Heater 266k BTU | Millivolt Standing Pilot | P-M266A-MP-C 009919 P-R266A-MP-C 009201
Raypak Analog Propane Gas Pool Heater 266k BTU | Millivolt Standing Pilot | P-M266A-MP-C 009919 P-R266A-MP-C 009201
Raypak Analog Propane Gas Pool Heater 266k BTU | Millivolt Standing Pilot | P-M266A-MP-C 009919 P-R266A-MP-C 009201
The Raypak Millivolt gas heater comes with one mechanical thermostat. This control allows you to set your pool or spa temperature precisely at your favorite setting. Just set it, and forget it! Truly simple.

* Smart Design

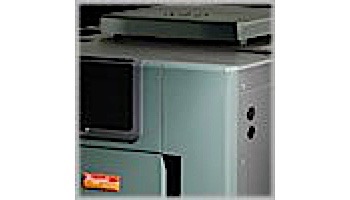

One look will tell you that the Raypak is different! The look is contemporary. The design is advanced. And inside and out it's engineered to last. The attractive forest green and charcoal gray panels complement the latest pool and spa equipment designs. Raypak's original "pagoda top" design will keep the heater operating even in extreme wind conditions and downdrafts.

* Polytuff Powder Coating
The Raypak Digital has a polyester coated, non-corrosive cabinet that is more durable than solventborne and waterborne coated metal cabinets. Every piece of sheet metal that gets powder coated goes through a 7-stage wash system making certain the powder paint has a perfect bond. Underneath the tough and beautiful finish you will find galvanized metal that offers superior rust prevention and years of durable service.

* Polymer Header
The Raypak Digital incorporates the latest in header design technology. Raypak's state-of-the-art engineering department utilized the latest in 3-D computer aided design to engineer the part for optimal performance. Polymer resin headers prevent rust stains from harming your pools surface giving you years of trouble-free swimming pleasure

* All Copper Fin Tube Heat Exchanger
All Raypak Digital gas heaters come standard with integral copper finned tube. This means that the fin tubing is made from one piece of extruded copper tube. Since the fins are integral to the tube, maximum heat transfer is attained. Every Raypak Digital has the same robust design tube bundle that we use in our large gas commercial boilers.

* Stainless Steel Tube Sheet
Stainless steel tube sheets are used on all Raypak Digital heaters that use the Polymer resin headers. This allows for a completely nonferrous waterway leaving your pool truly rust-free.

* CPVC 2" Water Connections
Standard with every Raypak Digital is a set of 2" slip fit CPVC water connections to make your installation secure and effortless.

* Condensation Protection
Standard on all Raypak Digital models is Raypak's Unitherm Governor, which helps reduce condensation from low inlet water temperatures. The Unitherm Governor automatically regulates the water flow to help keep the water temperature in the heat exchanger above 105 Degree F. Both water temperature and water flow rate are controlled to eliminate condensation, sooting, and scale buildup that can shorten heater life.

* High Flow Rates
No need to worry about large pumps or high flow systems. The Raypak Digital comes with an automatic bypass built into the header. You'll find that the Raypak Digital delivers the industry's lowest pressure drop and highest water flow rate - up to 125 gallons per minute - exceeding the maximum recommended for 2" plumbing systems. More hot water moves through faster and more efficiently.

* Fuel Efficient
Efficient? You bet. Energy-smart Raypak heaters consistently achieve the highest efficiency ratings and the Raypak Digital is no exception. It exceeds all federal and state standards.

* Burner Tray
Every Raypak Digital burner tray is built to last. From the stainless steel burners to the aluminized metal used in the heat sensitive areas. In the event that anything should happen to your burners they can be quickly and easily serviced. One more reason why the Raypak Digital is made to take the work load year after year.

* Fire Tile
A ceramic fiber combustion box keeps your Raypak Digital running efficiently and keeps the outside jacket cool. By using this space-age material the heater won't retain residual heat after it is turned off, allowing it to be installed without the use of costly metal heat sinks.

Brand: Raypak
