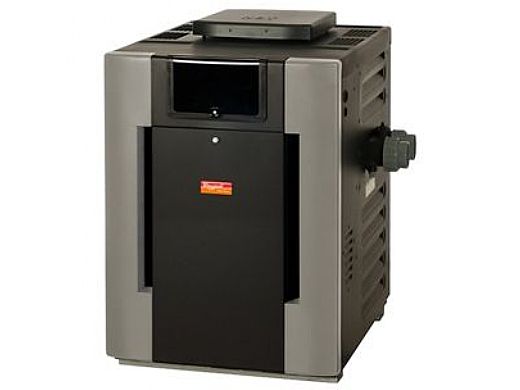

Raypak Digital Low NOx Natural Gas Heater 399k BTU | P-R407-EN-C 009243 P-M407AL-EN-C 009993

Raypak Digital Low NOx Natural Gas Heater 399k BTU | P-R407-EN-C 009243 P-M407AL-EN-C 009993 Raypak Digital Low NOx Natural Gas Heater 399k BTU | P-R407-EN-C 009243 P-M407AL-EN-C 009993 Raypak Digital Low NOx Natural Gas Heater 399k BTU | P-R407-EN-C 009243 P-M407AL-EN-C 009993 Raypak Digital Low NOx Natural Gas Heater 399k BTU | P-R407-EN-C 009243 P-M407AL-EN-C 009993 Raypak Digital Low NOx Natural Gas Heater 399k BTU | P-R407-EN-C 009243 P-M407AL-EN-C 009993 Raypak Digital Low NOx Natural Gas Heater 399k BTU | P-R407-EN-C 009243 P-M407AL-EN-C 009993 Raypak Digital Low NOx Natural Gas Heater 399k BTU | P-R407-EN-C 009243 P-M407AL-EN-C 009993 Raypak Digital Low NOx Natural Gas Heater 399k BTU | P-R407-EN-C 009243 P-M407AL-EN-C 009993 Raypak Digital Low NOx Natural Gas Heater 399k BTU | P-R407-EN-C 009243 P-M407AL-EN-C 009993
Sale $2,991.11
$2,928.41

Quantity:
Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Low NOx models required in some parts of the country, especially in California. Texas also requires Low NOx on commercial heaters.
  • LCD digital display provides accurate temperature
  • Monitors operational status as well as service diagnostics
  • High-wind resistance
OVERVIEW
The sleek and stylish Raypak Digital Gas Low NOx Pool and Spa Heater features innovative technology designed to keep your pool or spa at the perfect temperature for your enjoyment. Built to withstand various weather conditions, this modern pool and spa heater is the perfect solution for environments requiring efficiency, convenience and versatility. Whether upgrading your existing system or adding a new pool or spa to your home, our heater offers you flexible installation solutions. Thanks to a brilliant low-profile design, corrosion resistant cabinet made of galvanized metal, copper fin tube heat exchanger, and a bevy of advanced-engineered materials, enjoying your heater year round is a breeze.

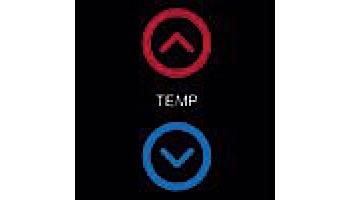

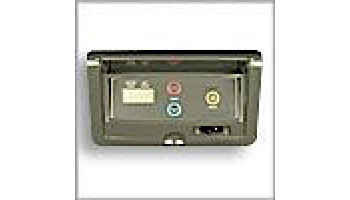

Digital Controls
Digital Controls provide solid-state reliability and accuracy and clear diagnostics. Setting it for the temperature you want is a snap...push a few buttons and walk away.

Smart Design
One look will tell you that the Raypak is different! The look is contemporary. The design is advanced. And inside and out it's engineered to last. The attractive forest green and charcoal gray panels complement the latest pool and spa equipment designs. Raypak's original "pagoda top" design will keep the heater operating even in extreme wind conditions and downdrafts.

Polytuff Powder Coating
The Raypak Digital gas heater has a polyester coated, non-corrosive cabinet that is more durable than solventborne and waterborne coated metal cabinets. Every piece of sheet metal that gets powder coated goes through a 7-stage wash system making certain the powder paint has a perfect bond. Underneath the tough and beautiful finish you will find galvanized metal that offers superior rust prevention and years of durable service.

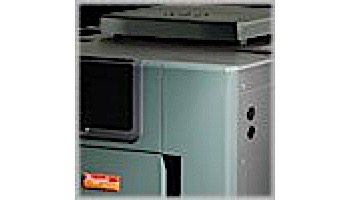

Wind-Resistant Design
No need for fans to combat drafting problems. This heater is designed to draft naturally in outdoor installations with its exclusive low-profile design. It is so thoughtfully and carefully designed it actually protects itself from the things that tend to stifle ordinary pool and spa heaters. It delivers uninterrupted heating performance regardless of falling leaves, wind, airborne debris, rain, downdrafts, updrafts,  sleet, snow, etc.

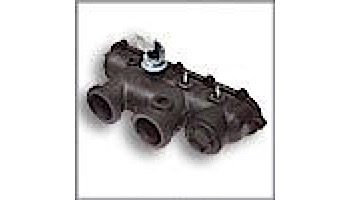

Polymer Header
The Raypak Digital incorporates the latest in header design technology. Raypak's state-of-the-art engineering department utilized the latest in 3-D computer aided design to engineer the part for optimal performance. Polymer resin headers prevent rust stains from harming your pools surface giving you years of trouble-free swimming pleasure

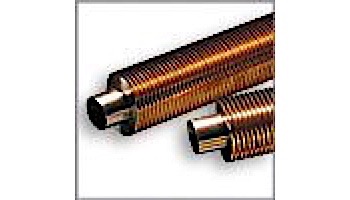

All Copper Fin Tube Heat Exchanger
All Raypak Digital gas heaters come standard with integral copper finned tube. This means that the fin tubing is made from one piece of extruded copper tube. Since the fins are integral to the tube, maximum heat transfer is attained. Every Raypak Digital has the same robust design tube bundle that we use in our large gas commercial boilers.

Stainless Steel Tube Sheet
Stainless steel tube sheets are used on all Raypak Digital heaters that use the Polymer resin headers. This allows for a completely nonferrous waterway leaving your pool truly rust-free.

CPVC 2" Water Connections
Standard with every Raypak Digital is a set of 2" slip fit CPVC water connections to make your installation secure and effortless.

Condensation Protection
Standard on all Raypak Digital models is Raypak's Unitherm Governor, which helps reduce condensation from low inlet water temperatures. The Unitherm Governor automatically regulates the water flow to help keep the water temperature in the heat exchanger above 105 Degree F. Both water temperature and water flow rate are controlled to eliminate condensation, sooting, and scale buildup that can shorten heater life.

High Flow Rates
No need to worry about large pumps or high flow systems. The Raypak Digital comes with an automatic bypass built into the header. You'll find that the Raypak Digital delivers the industry's lowest pressure drop and highest water flow rate - up to 125 gallons per minute - exceeding the maximum recommended for 2" plumbing systems. More hot water moves through faster and more efficiently.

Fuel Efficient
Efficient? You bet. Energy-smart Raypak heaters consistently achieve the highest efficiency ratings and the Raypak Digital is no exception. It exceeds all federal and state standards.

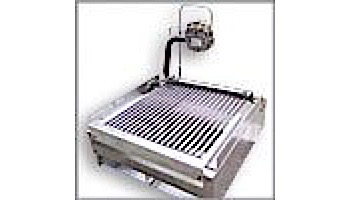

Burner Tray
Every Raypak Digital burner tray is built to last. From the stainless steel burners to the aluminized metal used in the heat sensitive areas. In the event that anything should happen to your burners they can be quickly and easily serviced. One more reason why the Raypak Digital is made to take the work load year after year.

Fire Tile
A ceramic fiber combustion box keeps your Raypak Digital running efficiently and keeps the outside jacket cool. By using this space-age material the heater won't retain residual heat after it is turned off, allowing it to be installed without the use of costly metal heat sinks.


Brand: Raypak
SPECIFICATIONS
BTU Rating
399K
Gas Type
Natural Gas
Location
Indoor/Outdoor
Elevation
0-2000'
Ignition
Electronic
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 2 questions Browse 2 questions and 2 answers
Weight?
A shopper on Feb 13, 2018
BEST ANSWER: The shipping weight is 237lbs.
Heater is not coming on and monitor screen is blank ?
A shopper on May 25, 2019
BEST ANSWER: I called Raypak directly when I had an issue of equipment not heating properly. They sent someone out twice, ending up with a new motherboard.
REVIEWS
4.6 / 5.0
8 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
5
3
0
0
0
Rated 5 out of 5
Just perfect!
It heats the pool in a few hours! It greT, all our children and grandchildren come to swim and spend the day with us. This is a great gift to us!
May 10, 2020
Purchased
over 2 years ago
Rated 5 out of 5
RAYPAC Delivers
Excellent - From the online ordering to shipping/delivery and installation.
June 11, 2021
Purchased
12 months ago
Rated 5 out of 5
Love this heater so far.
Went through 2 Pentair 400k btu heaters in 10 years so I thought I would try a Raypak. It's twice the size of a Pentair so make sure it will fit. So far I love it. It's very quiet and seams efficient.
July 14, 2020
Purchased
1 year ago
Rated 5 out of 5
Last one lasted 13 years.
Purchased this to replace a 13 year old unit that was done-in by hurricane Harvey. Lots of DIY after the flood, this was no different, everything fit perfectly, and it started up without issue. BTW, it was delivered to Texas in less than a week.
March 27, 2018
Purchased
over 4 years ago
Rated 5 out of 5
THIS IS THE SH.T!
I love my Raypac Heater. I had the original version in 1989/. She finally died on me and I bought this version, I am so happy with how fast this mother works.
June 28, 2017
Purchased
over 4 years ago
Rated 4 out of 5
So far so good
I am only giving four stars at this time, since we’ve only used it once since we installed it. So far so good
December 3, 2018
Purchased
over 3 years ago
Rated 4 out of 5
Awesome Heater
I got my new heater in 3 days which is amazing. Installation was a pricey but saved on ordering this unit direct. Working great!
February 2, 2017
Rated 4 out of 5
Quick
Arrived quickly and well packaged.It's doing a wonderful job on my 34,000 gallon pool.Thank you for sending me a good unit and for the recommendation.
March 2, 2016
RESOURCES
WARRANTY
Extended Warranty Program
Raypak pool and spa heaters are engineered to perform and built to last. The brand you know and trust is bringing you more peace of mind with a 2-year extended warranty on residential pool and spa heating products. If not registered, warranty is only 90 days.

The benefits of Raypak's extended warranty, include:
  • 2-year extended warranty
  • Professional in person service
  • 24-hour or same-day service
  • Genuine Raypak parts
  • Factory technical support
The product registration process is quick and easy to complete. To take advantage of the extended warranty follow these steps:
  1. Have your pool or spa heater professionally installed. Click here for a list of Raypak installation partners.
  2. Register your product online at www.raypak.com/warranty within 90 days of installation.
Warranties are effective for products installed on or after June 17, 2019. See product warranty for specific details. Conditions apply. For full warranty by product including exclusions and how to make a claim, please visit www.raypak.com/warranty.

This information was updated on 4/23/2022. For the most current information and full warranty policy please visit www.raypak.com.
