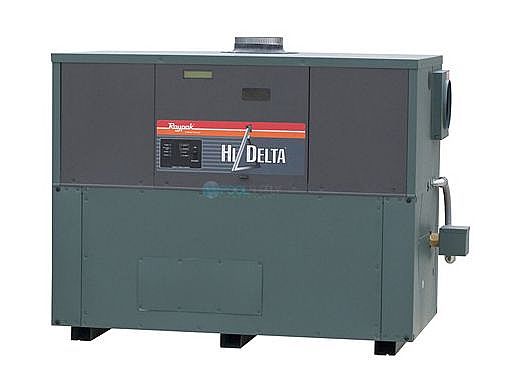

Raypak HI Delta P302B Commercial Indoor-Outdoor Swimming Pool Heater | Propane Gas 300,000 BTUH | 009363
The Hi Delta® line of fan-assisted combustion units offers solid performance and low emissions with flexible control and easy-to-understand diagnostics.

 BASIC DATA
Model Number
Full Input in BTUH
Indoor Stack Dia.
Bypass Options
Thermostatic Bypass None (Field-Supplied) CWR
P-302B 300,000 5" STD Yes Yes
P-402B 399,000 6" STD Yes Yes
P-502B 500,000 6" STD Yes Yes
P-652B 650,000 8" STD Yes Yes
P-752B 750,000 8" STD
Yes Yes
P-902B 900,000 8" STD
Yes Yes

Features:
  • All models Indoor/Outdoor certified.
  • Certified to the ANSI Z21.56 pool heater standard.
  • Vertical vented as Category I, sidewall vented as Category III.
  • Efficiency: 85%.
  • Patented burner "security blanket" enhances staged combustion, minimizes installation and start-up issues, and protects burners from metal fatigue.
  • Cupro-nickel finned-tube heat exchanger with brass headers. AB1953 low-lead compliant.
  • Sidewall venting capable. No extractor needed for most applications. An extra pat is needed for sidewall venting.
  • Ducted combustion air ready. TruSeal® CSA-Certified direct-vent available.
  • Status display and on-board diagnostic center, English, no codes.
  • Certified to SCAQMD Rule 1146.2; meets all NOx regulations.
  • Available for natural gas or propane.
Bypass Options:
  • The standard external bypass uses a thermostatically-controlled valve to adjust bypass flow and achieve cold-water protection.
  • All units available without an external bypass; cold-water protection provided in the field.
  • The Cold Water Run (CWR) option provides electronic control of a variable-speed pump to continuously adjust bypass flow, achieving real-time cold-water protection.







Brand: Raypak
