Home Raypak Raytherm P1758 #57 Cold Run Commercial Swimming Pool Heater with H-Style Bypass and Outdoor Top | Propane Gas 1,758,000 MBTU | 012389
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

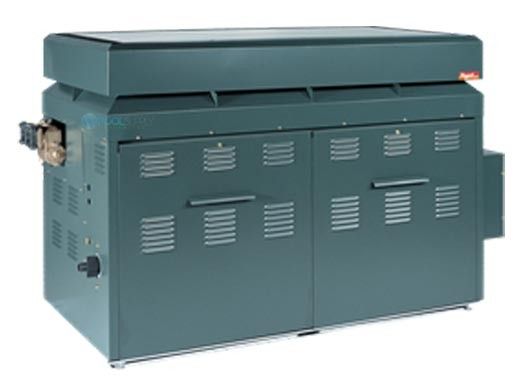

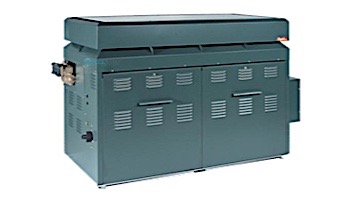

Raypak Raytherm P1758 #57 Cold Run Commercial Swimming Pool Heater with H-Style Bypass and Outdoor Top | Propane Gas 1,758,000 MBTU | 012389

Raypak Raytherm P1758 #57 Cold Run Commercial Swimming Pool Heater with H-Style Bypass and Outdoor Top | Propane Gas 1,758,000 MBTU | 012389 Raypak Raytherm P1758 #57 Cold Run Commercial Swimming Pool Heater with H-Style Bypass and Outdoor Top | Propane Gas 1,758,000 MBTU | 012389
This item has been discontinued.

Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Clubs. Universities. Municipalities. Watersport Centers. Large residential pools.
  • Outdoor installation. Stainless steel burners
  • Up to 82% thermal efficiency - Fuel-saving electronic ignition
  • 7/8" diameter finned cupro-nickel tubes. Bronze headers
  • Low operating cost. Low maintenance cost. Easy service
  • Cold-Water Run (CWR)
  • Raytherm Commercial Heater Options Click here
Q & A
Raytherm® Outdoor Pool Heater - Cold Water Run
Raypak's Raytherm® line of atmospheric pool heaters offers rugged construction and simple operation at low cost.
Full Input BTUH Bypass Options
Unitherm Gobernor H-Style Bypass None (Field-Supplied) CWR
P-926 926,000 STD, no pump Yes Yes Yes
P-1083 1,083,000 STD, no pump Yes Yes Yes
P-1178 1,178,000 STD, no pump Yes Yes Yes
P-1287 1,287,000   STD, rear pump Yes Yes
P-1414 1,414,000   STD, rear pump Yes Yes
P-1571 1,571,000   STD, rear pump Yes Yes
P-1758 1,578,000   STD, rear pump Yes Yes
Rugged All-Brass Headers
Resist corrosion, and are easily removed for inspection or service. AB 1953 low-lead complaint.
Cupro-nickel Finned-tube
Single bank, straight through design delivers lowest pressure drop. Integral fins have ten times the heat transfer surface of plain tubes. Cupro-nickel tubes provide superior chemical resistance over copper for tough commercial installations.
On-off Operation.
Corrosion Resistant Steel
Fittings are brushgalvanized against rust. Heat shields are corrosion-resistant steel. Jacket has Polytuf powder coat finish.
24-Volt Controls
Are totally enclosed for protection. Cover is easily removed for inspection and service.
Floating Return Header
Immunizes heat exchanger to thermal shock.
Tube Sheet and "O" Ring Construction
Eliminates the repair and maintenance problems associated with rolling tubes directly into a casting.
Interlocking Refractory Panels
With sealed corners reduce radiation losses.
Stainless Steel Burners
Maintain precise combustion, burn quietly and won't clog or corrode.
Slide-out Burner Tray
Allows easy inspection and service.
Spark-to-Pilot Ignition
The most dependable ignition method available.
Available for natural gas or propane.
Bypass Options:
  • Unitherm Governor (std on 926-1178)
    This provides a temperature-activated valve inside the header which varies flow through the heat exchanger. No pump on the heater. Flow comes from an external source.
  • H-Style Bypass (std on 1287-1758)
    This provides a larger manually-set bypass to bring heated water back to the inlet, raising the temp inside the heat exchanger. For size 1287, the H-bypass is horizontal with a rear-mounted pump. For sizes 1414-1758, the H-bypass is vertical with a front-mounted pump.
  • None (field-supplied)
    Protection provided by others and mounted in the field.
  • Cold-Water Run (CWR)
    This approach uses digital controls to vary the performance of a variable-speed pump which governs how much heated water is returned to the inlet. Performance is adjusted in real time.

Brand: Raypak
BTU Rating
Gas Type
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!
There are no reviews for this item. Write Review
Extended Warranty Program
Raypak pool and spa heaters are engineered to perform and built to last. The brand you know and trust is bringing you more peace of mind with a 2-year extended warranty on residential pool and spa heating products. If not registered, warranty is only 90 days.
The benefits of Raypak's extended warranty, include:
  • 2-year extended warranty
  • Professional in person service
  • 24-hour or same-day service
  • Genuine Raypak parts
  • Factory technical support
The product registration process is quick and easy to complete. To take advantage of the extended warranty follow these steps:
  1. Have your pool or spa heater professionally installed. Click here for a list of Raypak installation partners.
  2. Register your product online at www.raypak.com/warranty within 90 days of installation.
Warranties are effective for products installed on or after June 17, 2019. See product warranty for specific details. Conditions apply. For full warranty by product including exclusions and how to make a claim, please visit www.raypak.com/warranty.
This information was updated on 4/23/2022. For the most current information and full warranty policy please visit www.raypak.com.
