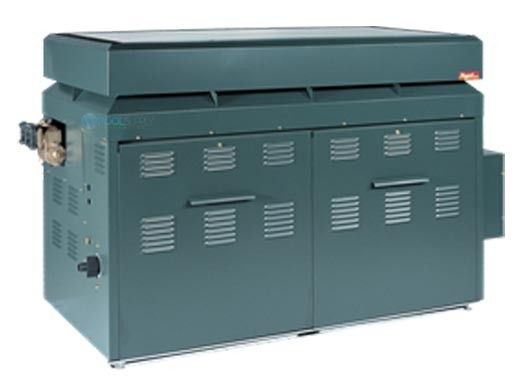

Raypak Raytherm P-926 #49 Cold Run Commercial Swimming Pool Heater with Outdoor Top | Natural Gas 926,000 BTUH | 012390

This item has been discontinued.
Raypak Raytherm P-926 #49 Cold Run Commercial Swimming Pool Heater with Outdoor Top | Natural Gas 926,000 BTUH | 012390
Raypak Raytherm P-926 #49 Cold Run Commercial Swimming Pool Heater with Outdoor Top | Natural Gas 926,000 BTUH | 012390
Raytherm® Outdoor Pool Heaters, 926-1758

Raypak's Raytherm® line of atmospheric pool heaters offers rugged construction and simple operation at low cost.

BASIC DATA
Model
Number
Full Input BTUH Bypass Options
Unitherm Gobernor H-Style Bypass None (Field-Supplied) CWR
P-926 926,000 STD, no pump Yes Yes Yes
P-1083 1,083,000 STD, no pump Yes Yes Yes
P-1178 1,178,000 STD, no pump Yes Yes Yes
P-1287 1,287,000   STD, rear pump Yes Yes
P-1414 1,414,000   STD, rear pump Yes Yes
P-1571 1,571,000   STD, rear pump Yes Yes
P-1758 1,578,000   STD, rear pump Yes Yes

Features:

Rugged All-Brass Headers
Resist corrosion, and are easily removed for inspection or service. AB 1953 low-lead complaint.

Cupro-nickel Finned-tube
Single bank, straight through design delivers lowest pressure drop. Integral fins have ten times the heat transfer surface of plain tubes. Cupro-nickel tubes provide superior chemical resistance over copper for tough commercial installations.

On-off Operation.
Corrosion Resistant Steel
Fittings are brushgalvanized against rust. Heat shields are corrosion-resistant steel. Jacket has Polytuf powder coat finish.

24-Volt Controls
Are totally enclosed for protection. Cover is easily removed for inspection and service.

Floating Return Header
Immunizes heat exchanger to thermal shock.

Tube Sheet and "O" Ring Construction
Eliminates the repair and maintenance problems associated with rolling tubes directly into a casting.

Interlocking Refractory Panels
With sealed corners reduce radiation losses.

Stainless Steel Burners
Maintain precise combustion, burn quietly and won't clog or corrode.

Slide-out Burner Tray
Allows easy inspection and service.

Spark-to-Pilot Ignition
The most dependable ignition method available.

Available for natural gas or propane.

Bypass Options:
  • Unitherm Governor (std on 926-1178)
    This provides a temperature-activated valve inside the header which varies flow through the heat exchanger. No pump on the heater. Flow comes from an external source.
  • H-Style Bypass (std on 1287-1758)
    This provides a larger manually-set bypass to bring heated water back to the inlet, raising the temp inside the heat exchanger. For size 1287, the H-bypass is horizontal with a rear-mounted pump. For sizes 1414-1758, the H-bypass is vertical with a front-mounted pump.
  • None (field-supplied)
    Protection provided by others and mounted in the field.
  • Cold-Water Run (CWR)
    This approach uses digital controls to vary the performance of a variable-speed pump which governs how much heated water is returned to the inlet. Performance is adjusted in real time.


Brand: Raypak
