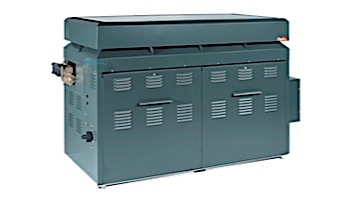

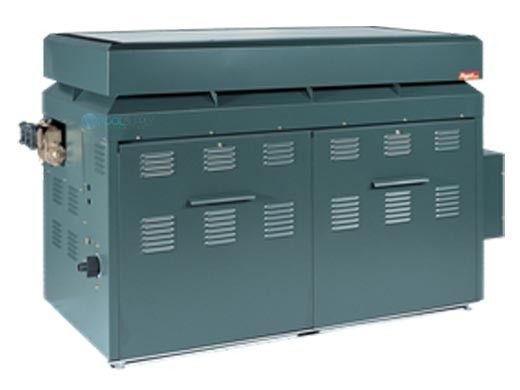

Home Raypak Raytherm P1571 #49 Cold Run Commercial Swimming Pool Heater with H-Style Bypass and Outdoor Top | Natural Gas 1,570,000 MBTU | 012395
NOTICE: The Texas weather emergency in February has caused nationwide stock-outs on most products that will last months in many cases. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product arrives, given that these back-orders are industry wide. There are long shipping delays on the few products we do have in stock. Please contact us to ask about availability. Live Chat is the quickest response. Please keep trying back via chat, email and phones as we can't answer them as fast as they come in but we are here, so keep trying!

Raypak Raytherm P1571 #49 Cold Run Commercial Swimming Pool Heater with H-Style Bypass and Outdoor Top | Natural Gas 1,570,000 MBTU | 012395

Raypak Raytherm P1571 #49 Cold Run Commercial Swimming Pool Heater with H-Style Bypass and Outdoor Top | Natural Gas 1,570,000 MBTU | 012395 Raypak Raytherm P1571 #49 Cold Run Commercial Swimming Pool Heater with H-Style Bypass and Outdoor Top | Natural Gas 1,570,000 MBTU | 012395
$18,558.86

Quantity:
Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Clubs. Universities. Municipalities. Watersport Centers. Large residential pools.
  • Outdoor installation. Stainless steel burners
  • Up to 82% thermal efficiency - Fuel-saving electronic ignition
  • 7/8" diameter finned cupro-nickel tubes. Bronze headers
  • Low operating cost. Low maintenance cost. Easy service
  • Cold-Water Run (CWR)
  • Raytherm Commercial Heater Options Click here
OVERVIEW
SPECIFICATIONS
Q & A
REVIEWS
RESOURCES
WARRANTY
FOR YOU
PARTS
OVERVIEW
Raytherm® Outdoor Pool Heater - Cold Water Run

Raypak's Raytherm® line of atmospheric pool heaters offers rugged construction and simple operation at low cost.

BASIC DATA
Model
Number
Full Input BTUH Bypass Options
Unitherm Gobernor H-Style Bypass None (Field-Supplied) CWR
P-926 926,000 STD, no pump Yes Yes Yes
P-1083 1,083,000 STD, no pump Yes Yes Yes
P-1178 1,178,000 STD, no pump Yes Yes Yes
P-1287 1,287,000   STD, rear pump Yes Yes
P-1414 1,414,000   STD, rear pump Yes Yes
P-1571 1,571,000   STD, rear pump Yes Yes
P-1758 1,578,000   STD, rear pump Yes Yes

Features:

Rugged All-Brass Headers
Resist corrosion, and are easily removed for inspection or service. AB 1953 low-lead complaint.

Cupro-nickel Finned-tube
Single bank, straight through design delivers lowest pressure drop. Integral fins have ten times the heat transfer surface of plain tubes. Cupro-nickel tubes provide superior chemical resistance over copper for tough commercial installations.

On-off Operation.
Corrosion Resistant Steel
Fittings are brushgalvanized against rust. Heat shields are corrosion-resistant steel. Jacket has Polytuf powder coat finish.

24-Volt Controls
Are totally enclosed for protection. Cover is easily removed for inspection and service.

Floating Return Header
Immunizes heat exchanger to thermal shock.

Tube Sheet and "O" Ring Construction
Eliminates the repair and maintenance problems associated with rolling tubes directly into a casting.

Interlocking Refractory Panels
With sealed corners reduce radiation losses.

Stainless Steel Burners
Maintain precise combustion, burn quietly and won't clog or corrode.

Slide-out Burner Tray
Allows easy inspection and service.

Spark-to-Pilot Ignition
The most dependable ignition method available.

Available for natural gas or propane.

Bypass Options:
  • Unitherm Governor (std on 926-1178)
    This provides a temperature-activated valve inside the header which varies flow through the heat exchanger. No pump on the heater. Flow comes from an external source.
  • H-Style Bypass (std on 1287-1758)
    This provides a larger manually-set bypass to bring heated water back to the inlet, raising the temp inside the heat exchanger. For size 1287, the H-bypass is horizontal with a rear-mounted pump. For sizes 1414-1758, the H-bypass is vertical with a front-mounted pump.
  • None (field-supplied)
    Protection provided by others and mounted in the field.
  • Cold-Water Run (CWR)
    This approach uses digital controls to vary the performance of a variable-speed pump which governs how much heated water is returned to the inlet. Performance is adjusted in real time.


Brand: Raypak
SPECIFICATIONS
BTU Rating
1570K
Gas Type
Natural Gas
Location
Outdoor
Elevation
0-2000'
Ignition
Electronic
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!
REVIEWS
There are no reviews for this item. Write Review
RESOURCES
WARRANTY
Required for warranty: Register your product online at www.raypak.com/warranty. The product registration process is quick and easy to complete.

To take advantage of the Raypak extended warranty follow these steps:
  1. Have your pool or spa heater professionally installed. Click here for a list of Raypak installation partners.
  2. Register your product online at www.raypak.com/warranty.

 Residential Products:


POOL AND SPA HEATERS
Models: 106, 156, 206A, 266A, 336A, 406A, 207A, 267A, 337A, 407A
ELECTRIC POOL AND SPA HEATERS
Models: ELS 0005, 0011, 0018, 0027
HEAT PUMP POOL HEATERS
Models: 2450, 3450, 4450, 5450, 6450, 8450, Professional Series Models: PS9350, PS9353, PS10353, PS10354, PS10355
CROSSWIND SIDE DISCHARGE HEAT PUMP POOL HEATERS
All Models
PROTEGE ABOVE GROUND POOL SYSTEMS
Models: RPCFP50, RPCFP75, RPCFP100, RPCFP150, RPCFP152, RPCFP202
SCOPE OF WARRANTY Raypak, Inc. (Raypak) warrants to the original owner that the above model gas pool and spa Heater (the “Heater”) when installed in the contiguous 48 states of the United States of America with a pool or spa by a properly licensed installer will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. Under this Limited Warranty, Raypak will, at its option, repairor furnish a replacement for any defective part of the HEATER. The repair or replacement will be warranted for only the unexpired portion of the original Applicable Warranty Period or the Extended Warranty Period, as the case may be. Raypak, Inc. (“Raypak”) warrants to the original owner that the Heat Pump Pool Heater sold with this limited warranty certificate (the “Heater”), when installed in any of the contiguous 48 states of the United States of America or Hawaii with a pool or spa by a properly licensed installer, will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. In accordance with the terms of this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for any defective part of the Heater that fails in normal use and service during the Applicable Warranty Period. The repair or replacement will be warranted for only the unexpired portion of the original Applicable Warranty Period. Raypak, Inc. (Raypak) warrants to the original owner that the above ground swimming pool filter system models listed above and sold with the Limited Warranty certificate (the "Filter System"), when installed in the United States of America with a pool, will be free from defects in materials and workmanship under normal use and serivice for the Applicable Warranty Period defined herein. In accordance with the terms of this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for the FILTER SYSTEM or any defective part of the FILTER SYSTEM that fails in normal use and service during the Applicable Warranty Period. The repair or replacement will be warranted for only the unexpired portion of the original Applicable Warranty Period, or the Extended Warranty Period, as the case may be.
EFFECTIVE DATE The Effective Date of this Limited Warranty is the date of original installation if properly documented. If you are not able to provide documentary proof of the date of original installation, the Effective Date will be the date of manufacture plus thirty (30) days. All Applicable Warranty Periods specified in this Limited Warranty are measured from the Effective Date.
APPLICABLE WARRANTY PERIOD – UNREGISTERED If the HEATER is installed with a pool or spa, the Applicable Warranty Period is ninety (90) days from the Effective Date, parts and labor, for the HEATER and component parts. If the FILTER SYSTEM is installed with a pool, the Applicable Warranty Period is ninety (90) days from the Effective Date, parts only, for the FILTER SYSTEM and component parts.
APPLICABLE WARRANTY PERIOD – REGISTERED         If, within 90 days of the Effective Date, the FILTER SYSTEM is installed in a pool at a single family residential dwelling and registered with Raypak, the the Applicable Warranty Period is one (1) year from the Effective Date for the FILTER SYSTEM and component parts.
EXTENDED WARRANTY PERIOD – SERVICE PROFESSIONAL If, within 90 days of the Effective Date, (i) the HEATER is installed in a pool or spa at a single family residential dwelling by a properly licensed installer (in accordance with applicable state and local laws and regulations), and (ii) registered with Raypak with an installation receipt attached to such registration, then the Applicable Warranty Period is two (2) years from the Effective Date for the HEATER and component parts. If the Heater is installed anywhere other than a single family residential dwelling, the Applicable Warranty Period for the Heater and component parts is limited to only one (1) year, parts and labor. If, within 90 days of the Effective Date, (i) the HEATER is installed in a pool or spa at a single family residential dwelling by a properly licensed installer (in accordance with applicable state and local laws and regulations), and (ii) registered with Raypak with an installation receipt attached to such registration, then the Applicable Warranty Period is one (1) year from the Effective Date for the HEATER and component parts, but specifically excluding the electrical heating element. The electrical heating element will be warranted for a period of 90 days from the Effective Date. Residential Heaters (all models excluding the Professional Series): If the HEATER is installed by a properly licensed installer in a pool or spa (with the installation receipt attached to the registration) and registered with Raypak within ninety (90) days of the Effective Date, then the Applicable Warranty Periods are two (2) years for labor and seven (7) years for parts, with no labor coverage in the third through seventh years. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for 10 years from the Effective Date, with no labor coverage in the third through tenth years.

Professional Series Heaters: If the HEATER is installed by a properly licensed installer in a pool or spa (with the installation receipt attached to the registration) and registered with Raypak within ninety (90) days of the Effective Date, then the Applicable Warranty Periods are two (2) years for labor and seven (7) years for parts, with no labor coverage in the third through seventh years. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for 10 years from the Effective Date, with no labor coverage in the third through tenth years.
If the Heater is installed by a properly licensed installer in a pool or spa in a single family residential dwelling (with the installation receipt attached to the registration) and registered with Raypak within ninety (90) days of the Effective Date, then the Applicable Warranty Periods are one (1) year parts and labor, and two (2) years for parts only, with no labor coverage in the second year. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for seven (7) years from the Effective Date, with no labor coverage in the second through seventh years. If the Heater is installed anywhere other than a single family residential dwelling, then the Applicable Warranty Period for the Heater and its parts is limited to one (1) year, parts and labor.
EXTENDED WARRANTY PERIOD – BUILDER, NEW CONSTRUCTION If, within 90 days of the Effective Date, (i) the HEATER is installed) in a pool or spa at a single family residential dwelling by a properly licensed installer (in accordance with applicable state and local laws and regulations), (ii) registered with Raypak with an installation receipt attached to such registration, then the Applicable Warranty Period is three (3) years from the Effective Date for the HEATER and component parts. If the Heater is installed anywhere other than a single family residential dwelling, the Applicable Warranty Period for the Heater and its parts is limited to only one (1) year, parts and labor.


Commercial Products:


RAYTHERM PROFESSIONAL SERIES POOL HEATER
Models: P0514  thru P4001
HI DELTA PROFESSIONAL SERIES POOL HEATER
Models: P0302C thru P2342C
MVB PROFESSIONAL SERIES POOL HEATER
Models: P504A thru P2004A
HEAT PUMP POOL HEATERS
Models: 5350ti-F5, 6350ti-F5, 8350ti-F5,
5450ti-F5, 6450ti-F5, 8450ti-F5
Florida Only
PROFESSIONAL SERIES POOL AND SPA PUMPS
Models: PS165VSP and PS270VSP
SCOPE OF WARRANTY Raypak, Inc. (Raypak) warrants to the original owner that the above model gas pool and spa heater (the“Heater”) when installed in the 50 states of the United States of America with a pool or spa by a properly licensed installer will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. Under this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for any defective part of the HEATER. The repair or replacement will be warranted for only the unexpired portion of the original Applicable Warranty Period. Raypak, Inc. (Raypak) warrants to the original owner that the Heat Pump Pool Heater sold with this limited warranty certificate (the “Heater”) when installed in Florida of the United States of America with a pool or spa by a properly licensed installer, will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. In accordance with the terms of this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for any defective part of the Heater that fails in normal use and service during the Applicable Warranty Period. The repair or replacement will be warranted for only the unexpired portion of the original Applicable Warranty Period. Raypak, Inc. (Raypak) warrants to the original owner that the above-described model swimming pool and spa pump (PUMP), when installed in any of the contiguous 48 states of the United States of America or Hawaii with a pool or spa by a properly licensed installer will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. Under this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for any defective part of the PUMP that fails during the Applicable Warranty Period. The repair or replacement part will be warranted for only the unexpired portion of the original Applicable Warranty Period.
EFFECTIVE DATE The Effective Date of Warranty coverage is the date of original installation if properly documented; otherwise it is the date of manufacture plus 30 days. All Applicable Warranty Periods specified in this Limited Warranty are measured from the Effective Date. The Effective Date of this Limited Warranty is the date of original installation if properly documented; if you are not able to provide documentary proof of the date of original installation, the Effective Date will be the date of manufacture plus 30 days. All Applicable Warranty Periods specified in this Limited Warranty are measured from the Effective Date. The Effective Date of this Limited Warranty is the date of original installation if properly documented; if documentary proof of the date of original installation cannot be provided, the Effective Date is the date of manufacture of the PUMP plus thirty (30) days.
APPLICABLE WARRANTY PERIOD If the HEATER is installed with a pool or spa, the Applicable Warranty Period is one (1) year from the Effective Date, parts and labor, for the HEATER and component parts, except that the cupro-nickel heat exchanger will have an Applicable Warranty Period of five (5) years from the Effective Date, with no labor coverage in the second thru fifth years. If the HEATER is installed in a single family residential dwelling in the state of Florida, the Applicable Warranty Periods are: five (5) years for labor and seven (7) years for parts, with no labor coverage in the sixth and seventh years. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for 10 years from the Effective Date, with no labor coverage in the sixth through tenth years. If the Heater is installed anywhere other than a single family residential dwelling, the Applicable Warranty Period for the Heater and its parts is limited to only one (1) year, parts and labor. The Applicable Warranty Period is two (2) years from the Effective Date for the PUMP and its component parts.


See product warranty for specific details. Conditions apply. For full warranty by product including exclusions and how to make a claim, please visit www.raypak.com.

This information was updated on 7/24/2020. For the most current information and full warranty policy please visit www.raypak.com.
