that have cooler-than-comfortable temperatures, also have extremely hot summer months. With a Rheem Heat-Cool heat pump, your water temperature will always be comfortable. Just as households around the world have trusted us to heat their water during the colder months, Rheem will have you relaxing in your pool during the hot days of summer with cool, refreshing, chilled pool water. Having the ability to pull out the extra degrees Mother Nature puts in will make your pool the envy of the neighborhood. No matter what time of year, a Rheem Heat-Cool will have you swimming when others won’t venture outside.

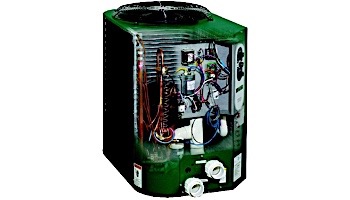

Rheem Heat-Cool units have a unique reversing valve which enables the heat pump not only to take the chill out of the water, but also to put it back in. Cooling your pool water during the hot summer months! Normally, a heat pump will gather heat energy from the air with its evaporator coil. Using refrigerant and several other components, the heat is transferred over to your pool water. By reversing this process, the heat pump can actually take heat out of the water, transfer it to the Freon, and run it through the evaporator coil. The coil dissipates the heat into the air, much like a car’s radiator. This is also the method of defrost for the heat-cool model. In cold ambient conditions, a heat pump will ice-up when the ambient air drops below 45 degrees. With a heat-cool unit, the ice will melt off in a matter of minutes when in defrost mode. Standard heat pumps rely on the ambient air being drawn across the coil, which could take hours to defrost, depending on the air temperature.

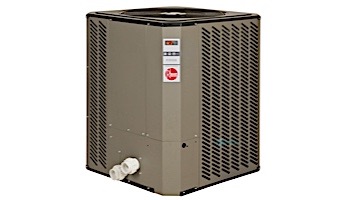

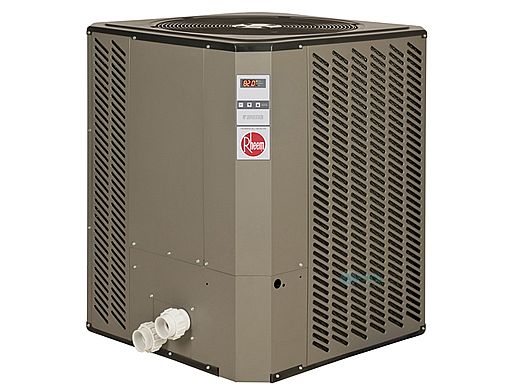

• Exclusive DuraSteel™ Powder-Coated Cabinet
  Polyester powder-coated, non-corrosive cabinet is more durable than plastic heat pump cabinets. Same rugged steel construction used by all the major air conditioner manufacturers.


•  Large Air Coils
  Raised lanced-fin design maximizes heating at lower temperatures. Rheem engineered coils are highly optimized to meet our specific design requirements. From the proper fins per inch to advanced distribution circuiting. We are the only heat pump pool heater company to actually manufacture our own coils.
• Venturi Fan Cowling
  High-capacity 3000-cfm fan provides unrestricted air flow for better heating. Precision engineered and manufactured cabinet design eliminates unwanted air gaps. This means more air over the coil which translates to greater efficiency.


•  Scroll Compressor
  Scroll compressors are quiet and efficient compared to piston type compressors. They provide higher efficiency, lower sound levels, superior durability and unsurpassed reliability. The unique design of a scroll compressor actually wears in over time, not out!
• Sound Isolation Pads
  Prevents sound transfer to equipment pad and elevates the base pan to improve water drainage. Its the little details like this that make Rheem products stand out from the crowd.

• Spiral Titanium Tube
  Our spiral titanium tube heat exchanger provides a corrosion-free waterway that can withstand the abuses of harsh pool chemistry. The spiral tube helps reduce deposit build-up and increases efficiency by performing a “scoop-and-lift” action.
• Internal Bypass Valving
  Automatically compensates for normal day-to-day changes in your pool’s hydraulics, maximizing heat transfer efficiency.

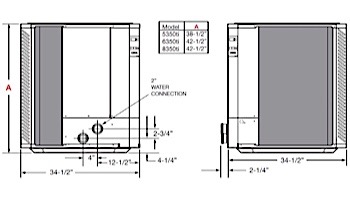

• Plumbing Connections
  Off-set 2” PVC union connections are included for ease of installation.
