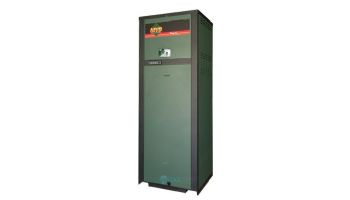

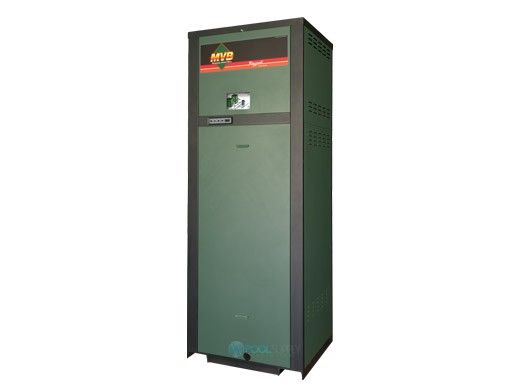

Raypak MVB P1104A Commercial Vertical Swimming Pool Heater with Versa Control | Natural Gas 1,100,000 BTUH | Cupro Nickel Heat Exchanger | 014373

Time-honored technologies unite with cutting-edge advancements in Raypak's MVB modulating vertical pool heater. Small space is no longer a problem, and our compact design fits through a 32" door opening to make it the perfect choice for those hard-to-reach retrofit projects.

BASIC DATA

Model Number	Full Input in BTUH	Indoor Stack Dia.	Bypass Options
Model Number	Full Input in BTUH	Indoor Stack Dia.	H-Style Bypass	None (Field-Supplied)	CWR
P-504A	500,000	8"	STD	Yes	Yes
P-754A	750,000	10"	STD	Yes	Yes
P-1104A	1,045,000	10"	STD	Yes	Yes
P-1504A	1,500,000	12"	STD	Yes	Yes
P-2004A	1,999,000	14"	STD	Yes	Yes

Features:

83 to 83.3% Thermal Efficiency at Full Rate.
Negative vent pressure, Non-condensing Appliance. Cat I Vent Required.
Bronze headers with Cupro-Nickel finned tube heat exchanger standard. ASME Section IV constructed and stamped, National Board registered.
CSA Low-Lead certified, less than 0.25% Lead.
Certified to ANSI Z21.56.
Minimum Continuous Inlet Water Temperature: 50°F.
Maximum Setpoint: 106°F.
On/Off Operation with Soft Start.
VERSA IC® Control Package with LCD Display.
Status Display Lights.
Cascade control of up to 4 units, no external sequencer required.
Diagnostics Center with History, English, no codes.
Modbus RTU BMS port (RS485).
0-10 VDC BMS Interface (Setpoint or Direct Drive).
All models indoor/outdoor construction.
Certified under SCAQMD Rule 1146.2. Meets all Low NOx regulations.
Engineered with precisely matched system components.
Smallest installed footprint (5.4 square feet) design fits tight spaces and easily replaces larger boilers.
100% Factory Fire Tested.
Complete cabinet protects all controls and wiring. Tough, rust-resistant powder-coat finish.
Suitable for altitudes up to 10,000 ft. (derate above 2,000 ft.).
No boiler condensate drain required (proprietary design)
Available for natural gas or propane.
Integral Combustion Air Filter (MERV8).
Multiple Pump Outputs - Boiler Pump, System Pump.
Whisper-Quiet Operation.
Proudly Assembled in the USA.

Bypass Options:

The standard external bypass uses a thermostatically-controlled valve to adjust bypass flow and achieve cold-water protection.
All units available without an external bypass; cold-water protection provided in the field.
The Cold Water Run (CWR) option provides electronic control of a variable-speed pump to continuously adjust bypass flow, achieving real-time cold-water protection.

Options:

BACNet IP, BACnet MS/TP, Modbus TCP, N2 Metasys (B-85)
Lonworks (B-86)
Alarm with 4” Bell (E-5)
Low Water Cutoff (F-10)
Cold Water Run
Condensate Neutralizer (Z-12)

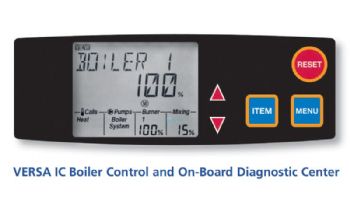

VERSA IC Boiler Control and On-Board Diagnostic Center

VERSA IC merges safety, ignition, temperature control, multi-unit cascade outdoor reset, and freeze protection. Plus system monitoring, diagnostics, and BMS transmission all in one Integrated Control Platform. Easy front access to read, set up and trouble shoot on a 3.5" LCD screen. The entire package is CSA certified, and listed for each individual function.

Inlet and outlet sensors factory installed in boiler. Remote sensor for system included. BMS all point diagnostics transmission port. 0-10VDC set point input standard. Can drive and monitor external motorized auxiliaries such as extractors and louvers. Additional connections for auxiliaryfunctions, indirect DHW, and dry contact remote alarm relay are provided.

Brand: Raypak

REVIEWS

Q&A

PARTS

Questions that need answers | My Posts

Start typing your question and we'll check if it was already asked and answered. Learn More

No questions have been asked about this item. Be the first!

Raypak MVB P1104A Commercial Vertical Swimming Pool Heater with Versa Control | Natural Gas 1,100,000 BTUH | Cupro Nickel Heat Exchanger | 014373

$27,654.59

Quantity

Parts Available

Platinum Preferred Manufacturer

Product description

BASIC DATA

Model Number	Full Input in BTUH	Indoor Stack Dia.	Bypass Options
Model Number	Full Input in BTUH	Indoor Stack Dia.	H-Style Bypass	None (Field-Supplied)	CWR
P-504A	500,000	8"	STD	Yes	Yes
P-754A	750,000	10"	STD	Yes	Yes
P-1104A	1,045,000	10"	STD	Yes	Yes
P-1504A	1,500,000	12"	STD	Yes	Yes
P-2004A	1,999,000	14"	STD	Yes	Yes

Features:

83 to 83.3% Thermal Efficiency at Full Rate.
Negative vent pressure, Non-condensing Appliance. Cat I Vent Required.
Bronze headers with Cupro-Nickel finned tube heat exchanger standard. ASME Section IV constructed and stamped, National Board registered.
CSA Low-Lead certified, less than 0.25% Lead.
Certified to ANSI Z21.56.
Minimum Continuous Inlet Water Temperature: 50°F.
Maximum Setpoint: 106°F.
On/Off Operation with Soft Start.
VERSA IC® Control Package with LCD Display.
Status Display Lights.
Cascade control of up to 4 units, no external sequencer required.
Diagnostics Center with History, English, no codes.
Modbus RTU BMS port (RS485).
0-10 VDC BMS Interface (Setpoint or Direct Drive).
All models indoor/outdoor construction.
Certified under SCAQMD Rule 1146.2. Meets all Low NOx regulations.
Engineered with precisely matched system components.
Smallest installed footprint (5.4 square feet) design fits tight spaces and easily replaces larger boilers.
100% Factory Fire Tested.
Complete cabinet protects all controls and wiring. Tough, rust-resistant powder-coat finish.
Suitable for altitudes up to 10,000 ft. (derate above 2,000 ft.).
No boiler condensate drain required (proprietary design)
Available for natural gas or propane.
Integral Combustion Air Filter (MERV8).
Multiple Pump Outputs - Boiler Pump, System Pump.
Whisper-Quiet Operation.
Proudly Assembled in the USA.

Bypass Options:

The standard external bypass uses a thermostatically-controlled valve to adjust bypass flow and achieve cold-water protection.
All units available without an external bypass; cold-water protection provided in the field.
The Cold Water Run (CWR) option provides electronic control of a variable-speed pump to continuously adjust bypass flow, achieving real-time cold-water protection.

Options:

BACNet IP, BACnet MS/TP, Modbus TCP, N2 Metasys (B-85)
Lonworks (B-86)
Alarm with 4” Bell (E-5)
Low Water Cutoff (F-10)
Cold Water Run
Condensate Neutralizer (Z-12)

VERSA IC Boiler Control and On-Board Diagnostic Center

Features and details

Specifications

Resources

Warranty

Raypak, Inc. (“Raypak”) warrants to the original owner that the below model pool and spa heater (the “Heater”) when installed in the contiguous 48 states of the United States of America with a pool or spa by a properly licensed installer will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. The foregoing warranty will extend to subsequent owners solely as required by applicable state law. Under this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for any defective part of the HEATER. The repair or replacement will be warranted for only the unexpired portion of the original Applicable Warranty Period (as defined below).

MODELS	WARRANTY PERIOD
AVIA Standard Models with copper heat exchanger: 264, 404	Two (2) years following the Effective Date for parts and labor.
AVIA HD Models with NiTek heat exchanger: 264, 404	Two (2) years following the Effective Date for parts and labor. Notwithstanding the foregoing, the NiTek heat exchanger is warranted for three (3) years following the Effective Date for parts and labor.
Pool and Spa Heater Models: 106A, 156A, 206A, 266A, 336A, 406A, 207A, 267A, 337A, 407A*	Two (2) years following the Effective Date for parts and labor.
ASME Pool and Spa Heater Models: 206A, 266A, 336A, 406A, 207A, 267A, 337A, 407A	One (1) year following the Effective Date for parts and labor.
Professional Pool and Spa Heater Models: Professional digital heaters 268A, 408A, SR-410	Three (3) years following the Effective Date for parts and labor.
Heat Pump Pool Heater Models: 2450, 3450, 4450, 5450, 6450, 8450, TWPH 4550, 5550, 6550, 6550EHC, 8550, & 8550EHC and Professional Series PS- 9350ti, PS9353ti, PS10353ti, PS10354ti, PS10355ti	Two (2) years following the Effective Date for labor and seven (7) years following the Effective Date for parts. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for ten (10) years following the Effective Date for parts and two (2) years following the Effective Date for labor.
Crosswind Heat Pump Pool Heater Models: 30-I, 40-I, 50-I, 65-I	Two (2) years following the Effective Date for labor and seven (7) years following the Effective Date for parts. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for ten (10) years following the Effective Date for parts and two (2) years following the Effective Date for labor.
E3T Single-Phase Pool and Spa Heater Models: 0005, 0011, 0018, 0027 E3T 3-Phase Commercial Pool Heater Models: 0018, 0024, 0030, 0045 and 0054	One (1) year following the Effective Date labor and parts. Notwithstanding the foregoing, the electrical heating element of the Heater is warranted for only ninety days (90) following the Effective Date.

* THIS WARRANTY PERIOD IS NOT AVAILABLE FOR HEATERS INSTALLED ANYWHERE OTHER THAN A SINGLE-FAMILY RESIDENTIAL DWELLING, AS THIS HEATER IS NOT INTENDED FOR COMMERCIAL INSTALLATION.

See product warranty for specific details. Conditions apply. To register your product or to make a claim, please visit www.raypak.com/warranty.

This information was updated on 7/14/23. For the most current information and full warranty policy please visit www.raypak.com.
