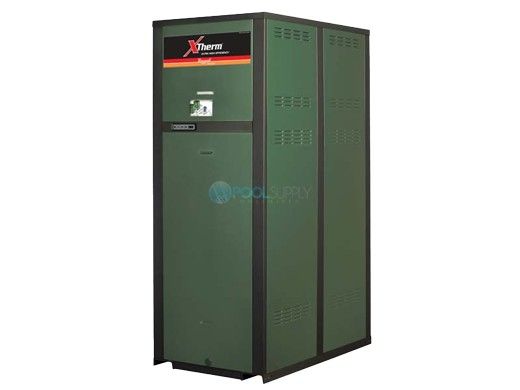

RayPak P-1005A XTherm Cold Run Low NOx Condensing Pool Heater with Versa Control | Natural Gas 999,000 BTUH with CAL CODE & D-32 | Cupro Nickel Heat Exchanger | 014391-K3

Name: RayPak P-1005A XTherm Cold Run Low NOx Condensing Pool Heater with Versa Control | Natural Gas 999,000 BTUH with CAL CODE & D-32 | Cupro Nickel Heat Exchanger | 014391-K3
Brand: Raypak
SKU: 199709
Availability: InStock

$42,700.32

RayPak P-1005A XTherm Cold Run Low NOx Condensing Pool Heater with Versa Control | Natural Gas 999,000 BTUH with CAL CODE & D-32 | Cupro Nickel Heat Exchanger | 014391-K3

Raypak's XTherm product packs everything you need into one cabinet - a vertical heat exchanger, ultra-high efficiency (up to 97%), a heater pumping package, easy-to-understand diagnostics, low emissions, even a built-in multi-unit controller. The result is a pool heater that is practically plug-and-play.

Features

97% Thermal Efficiency at Full Rate.
with CAL CODE & D-32
Positive vent pressure, Condensing Appliance. Cat IV Vent Required.
Bronze Headers with Cupro-Nickel Finned-Tube Primary Heat Exchanger. 316L Stainless Steel Condensing Heat Exchanger. ASME Section IV constructed and stamped, National Board registered.
CSA Low-Lead certified, less than 0.25% Lead.
Certified to ANSI Z21.56.
Minimum Continuous Inlet Water Temperature: 50°F.
Maximum Setpoint: 106°F.
On/Off Operation with Soft Start.
VERSA IC® Control Package with LCD Display.
Status Display Lights.
Cascade control of up to 4 units, no external sequencer required.
Diagnostics Center with History, English, no codes.
Modbus RTU BMS port (RS485).
0-10 VDC BMS Interface (Setpoint or Direct Drive).
All models indoor/outdoor construction.
Certified under SCAQMD Rule 1146.2. Meets all Low NOx regulations.
Engineered with precisely matched system components.
Smallest installed footprint (under 11 square feet) design fits tight spaces and easily replaces larger boilers.
100% Factory Fire Tested.
Complete cabinet protects all controls and wiring. Tough, rust-resistant powder-coat finish.
Suitable for altitudes up to 10,000 ft. (derate above 5,000 ft.).
Available for natural gas or propane.
Integral Combustion Air Filter (MERV8).
Multiple Pump Outputs - Heater Pump, System Pump.
Whisper-Quiet Operation.
Proudly Assembled in the USA.

Options:

BACNet IP, BACnet MS/TP, Modbus TCP, N2 Metasys (B-85)
Lonworks (B-86)
PVC Vent - Factory-Installed ONLY (D-32)
Centrotherm® Polypropylene Vent Adapter (D-33)
Alarm with 4" Bell (E-5)
Low Water Cutoff (F-10)
Condensate Neutralizer (Z-12)

VERSA IC intelligence with Raymote connectivity.

Raypak's VERSA IC combines modulating temperature control, safety limits, and ignition programming into one user-friendly integrated control platform. With self-learning features that prevent equipment damage, this automated controller is easy to set-up, understand, and use, making it as close to plug and play as possible.

The VERSA IC system can be remotely monitored through the Raymote mobile app or web dashboard. With touch-ofa-button access to vital information, Raymote gives you:

Real time service notifications to keep you informed.
View and manage your Raypak systems at multiple sites.
Instant visibility to historical data and performance reports.

1 year of Raymote service included.

Raymote retrofit kits available for installed products with the VERSA IC touchscreen.

Brand: Raypak

REVIEWS

Q&A

RayPak P-1005A XTherm Cold Run Low NOx Condensing Pool Heater with Versa Control | Natural Gas 999,000 BTUH with CAL CODE & D-32 | Cupro Nickel Heat Exchanger | 014391-K3

$42,700.32

Quantity

Freight Shipping Required $760.00

Platinum Preferred Manufacturer

Product description

Features

97% Thermal Efficiency at Full Rate.
with CAL CODE & D-32
Positive vent pressure, Condensing Appliance. Cat IV Vent Required.
Bronze Headers with Cupro-Nickel Finned-Tube Primary Heat Exchanger. 316L Stainless Steel Condensing Heat Exchanger. ASME Section IV constructed and stamped, National Board registered.
CSA Low-Lead certified, less than 0.25% Lead.
Certified to ANSI Z21.56.
Minimum Continuous Inlet Water Temperature: 50°F.
Maximum Setpoint: 106°F.
On/Off Operation with Soft Start.
VERSA IC® Control Package with LCD Display.
Status Display Lights.
Cascade control of up to 4 units, no external sequencer required.
Diagnostics Center with History, English, no codes.
Modbus RTU BMS port (RS485).
0-10 VDC BMS Interface (Setpoint or Direct Drive).
All models indoor/outdoor construction.
Certified under SCAQMD Rule 1146.2. Meets all Low NOx regulations.
Engineered with precisely matched system components.
Smallest installed footprint (under 11 square feet) design fits tight spaces and easily replaces larger boilers.
100% Factory Fire Tested.
Complete cabinet protects all controls and wiring. Tough, rust-resistant powder-coat finish.
Suitable for altitudes up to 10,000 ft. (derate above 5,000 ft.).
Available for natural gas or propane.
Integral Combustion Air Filter (MERV8).
Multiple Pump Outputs - Heater Pump, System Pump.
Whisper-Quiet Operation.
Proudly Assembled in the USA.

Options:

BACNet IP, BACnet MS/TP, Modbus TCP, N2 Metasys (B-85)
Lonworks (B-86)
PVC Vent - Factory-Installed ONLY (D-32)
Centrotherm® Polypropylene Vent Adapter (D-33)
Alarm with 4" Bell (E-5)
Low Water Cutoff (F-10)
Condensate Neutralizer (Z-12)

VERSA IC intelligence with Raymote connectivity.

The VERSA IC system can be remotely monitored through the Raymote mobile app or web dashboard. With touch-ofa-button access to vital information, Raymote gives you:

Real time service notifications to keep you informed.
View and manage your Raypak systems at multiple sites.
Instant visibility to historical data and performance reports.

1 year of Raymote service included.

Raymote retrofit kits available for installed products with the VERSA IC touchscreen.

Features and details

Specifications

Resources

Warranty

Raypak, Inc. (“Raypak”) warrants to the original owner that the below model pool and spa heater (the “Heater”) when installed in the contiguous 48 states of the United States of America with a pool or spa by a properly licensed installer will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. The foregoing warranty will extend to subsequent owners solely as required by applicable state law. Under this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for any defective part of the HEATER. The repair or replacement will be warranted for only the unexpired portion of the original Applicable Warranty Period (as defined below).

MODELS	WARRANTY PERIOD
AVIA Standard Models with copper heat exchanger: 264, 404	Two (2) years following the Effective Date for parts and labor.
AVIA HD Models with NiTek heat exchanger: 264, 404	Two (2) years following the Effective Date for parts and labor. Notwithstanding the foregoing, the NiTek heat exchanger is warranted for three (3) years following the Effective Date for parts and labor.
Pool and Spa Heater Models: 106A, 156A, 206A, 266A, 336A, 406A, 207A, 267A, 337A, 407A*	Two (2) years following the Effective Date for parts and labor.
ASME Pool and Spa Heater Models: 206A, 266A, 336A, 406A, 207A, 267A, 337A, 407A	One (1) year following the Effective Date for parts and labor.
Professional Pool and Spa Heater Models: Professional digital heaters 268A, 408A, SR-410	Three (3) years following the Effective Date for parts and labor.
Heat Pump Pool Heater Models: 2450, 3450, 4450, 5450, 6450, 8450, TWPH 4550, 5550, 6550, 6550EHC, 8550, & 8550EHC and Professional Series PS- 9350ti, PS9353ti, PS10353ti, PS10354ti, PS10355ti	Two (2) years following the Effective Date for labor and seven (7) years following the Effective Date for parts. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for ten (10) years following the Effective Date for parts and two (2) years following the Effective Date for labor.
Crosswind Heat Pump Pool Heater Models: 30-I, 40-I, 50-I, 65-I	Two (2) years following the Effective Date for labor and seven (7) years following the Effective Date for parts. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for ten (10) years following the Effective Date for parts and two (2) years following the Effective Date for labor.
E3T Single-Phase Pool and Spa Heater Models: 0005, 0011, 0018, 0027 E3T 3-Phase Commercial Pool Heater Models: 0018, 0024, 0030, 0045 and 0054	One (1) year following the Effective Date labor and parts. Notwithstanding the foregoing, the electrical heating element of the Heater is warranted for only ninety days (90) following the Effective Date.

* THIS WARRANTY PERIOD IS NOT AVAILABLE FOR HEATERS INSTALLED ANYWHERE OTHER THAN A SINGLE-FAMILY RESIDENTIAL DWELLING, AS THIS HEATER IS NOT INTENDED FOR COMMERCIAL INSTALLATION.

See product warranty for specific details. Conditions apply. To register your product or to make a claim, please visit www.raypak.com/warranty.

This information was updated on 7/14/23. For the most current information and full warranty policy please visit www.raypak.com.
