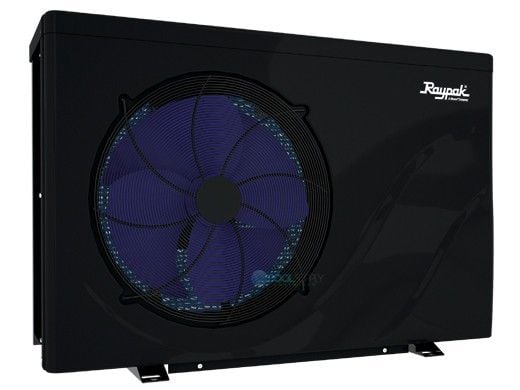

Raypak Crosswind 50-I Inverter Technology Heat and Cool Pump | 44,750 BTUH | Spiral Titanium Heat Exchanger | Digital Controls | 50-I-M 017744 | 50-I-D 017748 | 50-I-R 017740

$2,122.00

Enjoy the perfect temperature with ease

The Crosswind pool and spa heater is designed with intelligence, whisper quiet operation and energy efficiency. Crosswind's inverter technology automatically adjusts and controls your pool temperature, to save energy and money. With its whisper quiet operation, you will forget it's there. The compact size makes installation a breeze.

Inverter Technology

Powered by Inverter Technology, the Crosswind can intelligently adjust your pool or spa temperature automatically based on heating demand. At heater start up the Crosswind Inverter will run at full capacity for fast heating of your pool or spa. Once the heater reaches the desired temperature it will automatically shift into maintenance mode. In maintenance mode the Crosswind Inverter runs at a lower heating capacity while maintaining your set temperature.

The ability to modulate temperature means the system can adjust its heating capacity in small increments to maintain a constant temperature. Resulting in energy efficient performance, quieter run times and the perfect water temperature.

Whisper Quiet

When you are enjoying your pool and spa the only sounds you should hear are laughter or serenity. The Crosswind is built with a quiet inverter compressor coupled with a low speed fan motor. Which results in whisper quiet operation.

Heat and Cool

Double your fun, during those really hot summer days. The Crosswind can cool your pool to an enjoyable temperature. Heat and Cool Mode means you can enjoy your pool all year long.

In addition to more precise temperature control, inverter technology results in higher efficiencies and cost savings.

Inverter technology modulates based on the cooling/heating needs, resulting in energy savings.

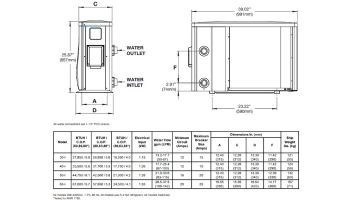

Specifications:

Model	BTUH / C.O.P. (80,80,80*)	BTUH / C.O.P. (80,63,80*)	BTUH / C.O.P. (50,63,80*)	Electrical Input (kW)	Water Flow gpm (LPM)	Minimum	Maximum Breaker Size (Amps)
30-I	27,850 / 5.8	26,850 / 5.6	16,590 / 4.0	1.15	13.2-17.7 (50-67)	12	15
40-I	33,500 / 5.6	31,700 / 5.5	17,750 / 4.0	1.26	17.7-26.4 (67-100)	12	15
50-I	44,750 / 6.1	42,500 / 5.8	21,000 / 4.2	1.28	21.9-30.6 (83-116)	16	20
65-I	61,000 / 5.7	57,650 / 5.3	24,500 / 4.1	1.55	28.5-37.5 (108-142)	20	25

All models 208-230VAC, 1-Ph, 60 Hz. All models use R-410A refrigerant. All models heat/cool.
*Tested to AHRI 1160.

Brand: Raypak

REVIEWS

Q&A

Review More Purchases | My Posts

5.0 / 5.0

1 Review

5 Stars

4 Stars

3 Stars

2 Stars

1 Star

Rated 5 out of 5

Quiet and efficient, but hard to integrate with

The heater works great, took my in-ground 850 gallon hot tub from 70F to 104F in 6 hours for under $2 in electrical cost (240v @9A/h while on full speed). It's quiet enough to sit within 20 feet of it, but you can definitely hear it run, especially on full speed. It seems to run at about 80% when maintaining temperature (turning on occasionally). I have not seen it run slower.

Integration points:

1) You can turn it on via some external controller, but then you must set it to 104F and let the controller decide when to run.
It will then always run on full speed (and full noise level) even if you want a lower temperature. It's essentialy like buying the ON/OFF model instead of the inverter model.

2) You can set it up to control your pump instead, then it will kick on your pump every 1-2 hours to check temperature, and run if needed. There is no setting longer than 120 minutes.

I do wish that it had a remote or some digital interface for setting temperature.

Was this review helpful? Yes (3) No (0)
Flag as Inappropriate

July 15, 2023

akom

Purchased
1 year ago

Was this review helpful? Yes (3) No (0)
Flag as Inappropriate

Questions that need answers | My Posts

Start typing your question and we'll check if it was already asked and answered. Learn More

Browse 2 questions Browse 2 questions and 2 answers

Which model for an above ground 10,000 gallon pool?

Dena R on Sep 11, 2021

BEST ANSWER: We purchased the 50-I for our 9000 gallon in ground pool in FL and it works well. Thanks

Reply
Inaccurate
Bradley M on Sep 11, 2021
Purchased on Jan 6, 2021

How many days for this item to ship?

A shopper on Nov 18, 2021

BEST ANSWER: We make every effort to ship all orders from our San Antonio, Texas warehouse and within 24-48 hours of receipt except for Saturdays, Sundays and holidays, however this is not always possible due to various reasons. For the best estimation on shipping time and to see if the item is in stock please call our customer service team. They are available Monday - Thursday 6am-6pm (Central Time) at (888) 836-6025 or you can send a message: https://www.poolsupplyunlimited.com/contact . Thank you.

Reply
Inaccurate
Sydney R Staff on Feb 9, 2023

Raypak Crosswind 50-I Inverter Technology Heat and Cool Pump | 44,750 BTUH | Spiral Titanium Heat Exchanger | Digital Controls | 50-I-M 017744 | 50-I-D 017748 | 50-I-R 017740

$2,122.00

Quantity

Free Shipping

Platinum Preferred Manufacturer

Purchase options

Product description

Enjoy the perfect temperature with ease

Inverter Technology

Whisper Quiet

Heat and Cool

Double your fun, during those really hot summer days. The Crosswind can cool your pool to an enjoyable temperature. Heat and Cool Mode means you can enjoy your pool all year long.

In addition to more precise temperature control, inverter technology results in higher efficiencies and cost savings.

Inverter technology modulates based on the cooling/heating needs, resulting in energy savings.

Specifications:

Model	BTUH / C.O.P. (80,80,80*)	BTUH / C.O.P. (80,63,80*)	BTUH / C.O.P. (50,63,80*)	Electrical Input (kW)	Water Flow gpm (LPM)	Minimum	Maximum Breaker Size (Amps)
30-I	27,850 / 5.8	26,850 / 5.6	16,590 / 4.0	1.15	13.2-17.7 (50-67)	12	15
40-I	33,500 / 5.6	31,700 / 5.5	17,750 / 4.0	1.26	17.7-26.4 (67-100)	12	15
50-I	44,750 / 6.1	42,500 / 5.8	21,000 / 4.2	1.28	21.9-30.6 (83-116)	16	20
65-I	61,000 / 5.7	57,650 / 5.3	24,500 / 4.1	1.55	28.5-37.5 (108-142)	20	25

All models 208-230VAC, 1-Ph, 60 Hz. All models use R-410A refrigerant. All models heat/cool.
*Tested to AHRI 1160.

Features and details

Specifications

Resources

Warranty

Raypak, Inc. (“Raypak”) warrants to the original owner that the below model pool and spa heater (the “Heater”) when installed in the contiguous 48 states of the United States of America with a pool or spa by a properly licensed installer will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. The foregoing warranty will extend to subsequent owners solely as required by applicable state law. Under this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for any defective part of the HEATER. The repair or replacement will be warranted for only the unexpired portion of the original Applicable Warranty Period (as defined below).

MODELS	WARRANTY PERIOD
AVIA Standard Models with copper heat exchanger: 264, 404	Two (2) years following the Effective Date for parts and labor.
AVIA HD Models with NiTek heat exchanger: 264, 404	Two (2) years following the Effective Date for parts and labor. Notwithstanding the foregoing, the NiTek heat exchanger is warranted for three (3) years following the Effective Date for parts and labor.
Pool and Spa Heater Models: 106A, 156A, 206A, 266A, 336A, 406A, 207A, 267A, 337A, 407A*	Two (2) years following the Effective Date for parts and labor.
ASME Pool and Spa Heater Models: 206A, 266A, 336A, 406A, 207A, 267A, 337A, 407A	One (1) year following the Effective Date for parts and labor.
Professional Pool and Spa Heater Models: Professional digital heaters 268A, 408A, SR-410	Three (3) years following the Effective Date for parts and labor.
Heat Pump Pool Heater Models: 2450, 3450, 4450, 5450, 6450, 8450, TWPH 4550, 5550, 6550, 6550EHC, 8550, & 8550EHC and Professional Series PS- 9350ti, PS9353ti, PS10353ti, PS10354ti, PS10355ti	Two (2) years following the Effective Date for labor and seven (7) years following the Effective Date for parts. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for ten (10) years following the Effective Date for parts and two (2) years following the Effective Date for labor.
Crosswind Heat Pump Pool Heater Models: 30-I, 40-I, 50-I, 65-I	Two (2) years following the Effective Date for labor and seven (7) years following the Effective Date for parts. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for ten (10) years following the Effective Date for parts and two (2) years following the Effective Date for labor.
E3T Single-Phase Pool and Spa Heater Models: 0005, 0011, 0018, 0027 E3T 3-Phase Commercial Pool Heater Models: 0018, 0024, 0030, 0045 and 0054	One (1) year following the Effective Date labor and parts. Notwithstanding the foregoing, the electrical heating element of the Heater is warranted for only ninety days (90) following the Effective Date.

* THIS WARRANTY PERIOD IS NOT AVAILABLE FOR HEATERS INSTALLED ANYWHERE OTHER THAN A SINGLE-FAMILY RESIDENTIAL DWELLING, AS THIS HEATER IS NOT INTENDED FOR COMMERCIAL INSTALLATION.

See product warranty for specific details. Conditions apply. To register your product or to make a claim, please visit www.raypak.com/warranty.

This information was updated on 7/14/23. For the most current information and full warranty policy please visit www.raypak.com.
