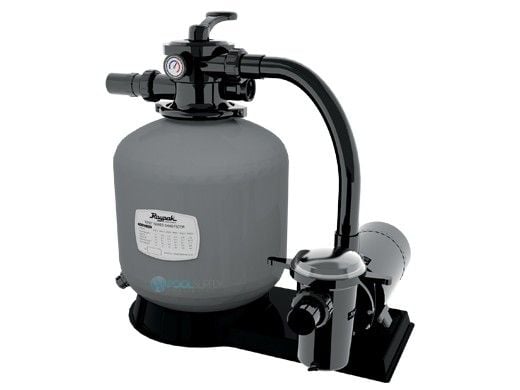

Raypak Protege RPSFP18 Above Ground Pool Sand Filter System | 18" Filter 1HP Pump | 018188
$382.28
| Platinum Preferred Manufacturer |
- System Includes the Above Ground Pool Pump and Sand Filter
- Keep Your Pool Crystal Clear All Year Long
- Protege SFP System Requires No Chemicals, Creates Little Waste and Is Energy Efficient
- Fully Packaged Ready-To-Build Assembly Making the Installation Process a Breeze
- Single Speed Pumps Cannot Be Used in CA or AZ, Click Here for Two-Speed Options
OVERVIEW
Don't Miss a Day of Pool Fun With Raypak's Protégé SFP System.
Raypak's Protégé SFP sand filter and pump are the way to keep your pool crystal clear all year long. This system brings together the Protégé SF sand filter and the AGP above-ground pool pump. The SFP system is a fully packaged ready-to-build assembly making the installation process a breeze.
Features
- Large filter - heavy-duty capacity, and long duration between filtering cycles
- Multi-port valve - top mounted for easy access
- Sturdy filter - base solid, balanced and supportive
- Powerful pump - pushes debris and sediment out
- Transparent cover - easily see when the basket needs cleaning
The Protégé SFP utilizes sand's inherent ability to screen out and filter debris, and is energy and cost efficient. It is equipped with a backwash setting so particles will not get caught in the filter. You can feel good about the Protégé SFP system because it requires no chemicals, creates little waste and is energy efficient. Enjoy your above ground sparkling clean pool year round with the Raypak's Protégé SFP.
Specifications:
| Model | Dimmensions - inches (mm) |
Valve Port Size inches |
Silica 16/30* Weight lbs. (kg) |
Pump Model | Power HP |
Speed | |
|---|---|---|---|---|---|---|---|
| Filter Diameter | Silica Height | ||||||
| RPSFP16 | 15.7 (400) | 6.3 (160) | 1.5 | 44 (20) | RPAGP75 | 0.75 | Single |
| RPSFP18 | 17.7 (450) | 6.9 (175) | 1.5 | 77 (35) | RPAGP100 | 1.0 | Single |
| RPSFP21 | 20.7 (527) | 8.3 (211) | 1.5 | 99 (45) | RPAGP150 | 1.5 | Single |
| RPSFP181 | 17.7 (450) | 6.9 (175) | 1.5 | 209 (85) | RPAGP102 | 1.0 | Dual |
| RPSFP211 | 20.7 (527) | 8.3 (211) | 1.5 | 319 (145) | RPAGP152 | 1.5 | Dual |
*Note: Suggested silica weight with differences in filter media size for reference only
Brand: Raypak
SPECIFICATIONS
Tank Diameter
18"
Pump Horse Power
1 HP
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 11 questions
Browse 11 questions
and 1 answer
Can I use a sand pump on a Coleman 18 by 48 stainless steel series 2?
what size of pool filter would i need for a 16 ft round pool ?
wHAT SIZE SAND FILTER & PUMP DO i NEED FOR A 10 FT DIAMETER 30 INCH DEEP ROUND ABOVE GROUND POOL?
I have a 24” Hayward Sand filter... will a 1HP pump fit my filter??
Is valve 6 or 7 way and what kind of sand can be used?
When you say no chemical required what excately do you mean ?
is sand included?
can i use a sand pump on colemon 18x48 pool?
BEST ANSWER: Yes. I have it on my 22x52 intex and it's been a lifesaver
- Reply
- Inaccurate
- Dana H on Aug 20, 2021
- Purchased on Apr 21, 2021
does it come with the hoses to connect to the above ground pool?
can i use glass beads instead of silica?
What is flow output?
REVIEWS
RESOURCES
WARRANTY
Extended Warranty Program
Raypak pool and spa heaters are engineered to perform and built to last. The brand you know and trust is bringing you more peace of mind with a 2-year extended warranty on residential pool and spa heating products. If not registered, warranty is only 90 days.
The benefits of Raypak's extended warranty, include:
- 2-year extended warranty
- Professional in person service
- 24-hour or same-day service
- Genuine Raypak parts
- Factory technical support
- Have your pool or spa heater professionally installed. Click here for a list of Raypak installation partners.
- Register your product online at www.raypak.com/warranty within 90 days of installation.
Residential Products:
|
POOL AND SPA HEATERS
Models: 106, 156, 206A, 266A, 336A, 406A, 207A, 267A, 337A, 407A
|
ELECTRIC POOL AND SPA HEATERS
Models: ELS 0005, 0011, 0018, 0027
|
HEAT PUMP POOL HEATERS
Models: 2450, 3450, 4450, 5450, 6450, 8450, Professional Series Models: PS9350, PS9353, PS10353, PS10354, PS10355
|
CROSSWIND SIDE DISCHARGE HEAT PUMP POOL HEATERS
All Models
|
PROTEGE ABOVE GROUND POOL SYSTEMS
Models: RPCFP50, RPCFP75, RPCFP100, RPCFP150, RPCFP152, RPCFP202
|
|
| SCOPE OF WARRANTY | Raypak, Inc. (Raypak) warrants to the original owner that the above model gas pool and spa Heater (the “Heater”) when installed in the contiguous 48 states of the United States of America with a pool or spa by a properly licensed installer will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. Under this Limited Warranty, Raypak will, at its option, repairor furnish a replacement for any defective part of the HEATER. The repair or replacement will be warranted for only the unexpired portion of the original Applicable Warranty Period or the Extended Warranty Period, as the case may be. | Raypak, Inc. (“Raypak”) warrants to the original owner that the Heat Pump Pool Heater sold with this limited warranty certificate (the “Heater”), when installed in any of the contiguous 48 states of the United States of America or Hawaii with a pool or spa by a properly licensed installer, will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. In accordance with the terms of this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for any defective part of the Heater that fails in normal use and service during the Applicable Warranty Period. The repair or replacement will be warranted for only the unexpired portion of the original Applicable Warranty Period. | Raypak, Inc. (Raypak) warrants to the original owner that the above ground swimming pool filter system models listed above and sold with the Limited Warranty certificate (the "Filter System"), when installed in the United States of America with a pool, will be free from defects in materials and workmanship under normal use and serivice for the Applicable Warranty Period defined herein. In accordance with the terms of this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for the FILTER SYSTEM or any defective part of the FILTER SYSTEM that fails in normal use and service during the Applicable Warranty Period. The repair or replacement will be warranted for only the unexpired portion of the original Applicable Warranty Period, or the Extended Warranty Period, as the case may be. | ||
| EFFECTIVE DATE | The Effective Date of this Limited Warranty is the date of original installation if properly documented. If you are not able to provide documentary proof of the date of original installation, the Effective Date will be the date of manufacture plus thirty (30) days. All Applicable Warranty Periods specified in this Limited Warranty are measured from the Effective Date. | ||||
| APPLICABLE WARRANTY PERIOD – UNREGISTERED | If the HEATER is installed with a pool or spa, the Applicable Warranty Period is ninety (90) days from the Effective Date, parts and labor, for the HEATER and component parts. | If the FILTER SYSTEM is installed with a pool, the Applicable Warranty Period is ninety (90) days from the Effective Date, parts only, for the FILTER SYSTEM and component parts. | |||
| APPLICABLE WARRANTY PERIOD – REGISTERED | If, within 90 days of the Effective Date, the FILTER SYSTEM is installed in a pool at a single family residential dwelling and registered with Raypak, the the Applicable Warranty Period is one (1) year from the Effective Date for the FILTER SYSTEM and component parts. | ||||
| EXTENDED WARRANTY PERIOD – SERVICE PROFESSIONAL | If, within 90 days of the Effective Date, (i) the HEATER is installed in a pool or spa at a single family residential dwelling by a properly licensed installer (in accordance with applicable state and local laws and regulations), and (ii) registered with Raypak with an installation receipt attached to such registration, then the Applicable Warranty Period is two (2) years from the Effective Date for the HEATER and component parts. If the Heater is installed anywhere other than a single family residential dwelling, the Applicable Warranty Period for the Heater and component parts is limited to only one (1) year, parts and labor. | If, within 90 days of the Effective Date, (i) the HEATER is installed in a pool or spa at a single family residential dwelling by a properly licensed installer (in accordance with applicable state and local laws and regulations), and (ii) registered with Raypak with an installation receipt attached to such registration, then the Applicable Warranty Period is one (1) year from the Effective Date for the HEATER and component parts, but specifically excluding the electrical heating element. The electrical heating element will be warranted for a period of 90 days from the Effective Date. | Residential Heaters (all models excluding the Professional Series): If the HEATER is installed by a properly licensed installer in a pool or spa (with the installation receipt attached to the registration) and registered with Raypak within ninety (90) days of the Effective Date, then the Applicable Warranty Periods are two (2) years for labor and seven (7) years for parts, with no labor coverage in the third through seventh years. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for 10 years from the Effective Date, with no labor coverage in the third through tenth years. Professional Series Heaters: If the HEATER is installed by a properly licensed installer in a pool or spa (with the installation receipt attached to the registration) and registered with Raypak within ninety (90) days of the Effective Date, then the Applicable Warranty Periods are two (2) years for labor and seven (7) years for parts, with no labor coverage in the third through seventh years. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for 10 years from the Effective Date, with no labor coverage in the third through tenth years. |
If the Heater is installed by a properly licensed installer in a pool or spa in a single family residential dwelling (with the installation receipt attached to the registration) and registered with Raypak within ninety (90) days of the Effective Date, then the Applicable Warranty Periods are one (1) year parts and labor, and two (2) years for parts only, with no labor coverage in the second year. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for seven (7) years from the Effective Date, with no labor coverage in the second through seventh years. If the Heater is installed anywhere other than a single family residential dwelling, then the Applicable Warranty Period for the Heater and its parts is limited to one (1) year, parts and labor. | |
| EXTENDED WARRANTY PERIOD – BUILDER, NEW CONSTRUCTION | If, within 90 days of the Effective Date, (i) the HEATER is installed) in a pool or spa at a single family residential dwelling by a properly licensed installer (in accordance with applicable state and local laws and regulations), (ii) registered with Raypak with an installation receipt attached to such registration, then the Applicable Warranty Period is three (3) years from the Effective Date for the HEATER and component parts. If the Heater is installed anywhere other than a single family residential dwelling, the Applicable Warranty Period for the Heater and its parts is limited to only one (1) year, parts and labor. | ||||
Commercial Products:
|
RAYTHERM PROFESSIONAL SERIES POOL HEATER
Models: P0514 thru P4001
|
HI DELTA PROFESSIONAL SERIES POOL HEATER
Models: P0302C thru P2342C
|
MVB PROFESSIONAL SERIES POOL HEATER
Models: P504A thru P2004A
|
HEAT PUMP POOL HEATERS
Models: 5350ti-F5, 6350ti-F5, 8350ti-F5,
5450ti-F5, 6450ti-F5, 8450ti-F5
Florida Only
|
PROFESSIONAL SERIES POOL AND SPA PUMPS
Models: PS165VSP and PS270VSP
|
|
| SCOPE OF WARRANTY | Raypak, Inc. (Raypak) warrants to the original owner that the above model gas pool and spa heater (the“Heater”) when installed in the 50 states of the United States of America with a pool or spa by a properly licensed installer will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. Under this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for any defective part of the HEATER. The repair or replacement will be warranted for only the unexpired portion of the original Applicable Warranty Period. | Raypak, Inc. (Raypak) warrants to the original owner that the Heat Pump Pool Heater sold with this limited warranty certificate (the “Heater”) when installed in Florida of the United States of America with a pool or spa by a properly licensed installer, will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. In accordance with the terms of this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for any defective part of the Heater that fails in normal use and service during the Applicable Warranty Period. The repair or replacement will be warranted for only the unexpired portion of the original Applicable Warranty Period. | Raypak, Inc. (Raypak) warrants to the original owner that the above-described model swimming pool and spa pump (PUMP), when installed in any of the contiguous 48 states of the United States of America or Hawaii with a pool or spa by a properly licensed installer will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. Under this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for any defective part of the PUMP that fails during the Applicable Warranty Period. The repair or replacement part will be warranted for only the unexpired portion of the original Applicable Warranty Period. | ||
| EFFECTIVE DATE | The Effective Date of Warranty coverage is the date of original installation if properly documented; otherwise it is the date of manufacture plus 30 days. All Applicable Warranty Periods specified in this Limited Warranty are measured from the Effective Date. | The Effective Date of this Limited Warranty is the date of original installation if properly documented; if you are not able to provide documentary proof of the date of original installation, the Effective Date will be the date of manufacture plus 30 days. All Applicable Warranty Periods specified in this Limited Warranty are measured from the Effective Date. | The Effective Date of this Limited Warranty is the date of original installation if properly documented; if documentary proof of the date of original installation cannot be provided, the Effective Date is the date of manufacture of the PUMP plus thirty (30) days. | ||
| APPLICABLE WARRANTY PERIOD | If the HEATER is installed with a pool or spa, the Applicable Warranty Period is one (1) year from the Effective Date, parts and labor, for the HEATER and component parts, except that the cupro-nickel heat exchanger will have an Applicable Warranty Period of five (5) years from the Effective Date, with no labor coverage in the second thru fifth years. | If the HEATER is installed in a single family residential dwelling in the state of Florida, the Applicable Warranty Periods are: five (5) years for labor and seven (7) years for parts, with no labor coverage in the sixth and seventh years. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for 10 years from the Effective Date, with no labor coverage in the sixth through tenth years. If the Heater is installed anywhere other than a single family residential dwelling, the Applicable Warranty Period for the Heater and its parts is limited to only one (1) year, parts and labor. | The Applicable Warranty Period is two (2) years from the Effective Date for the PUMP and its component parts. | ||
Warranties are effective for products installed on or after June 17, 2019. See product warranty for specific details. Conditions apply. For full warranty by product including exclusions and how to make a claim, please visit www.raypak.com.
This information was updated on 7/24/2020. For the most current information and full warranty policy please visit www.raypak.com.
