Product description

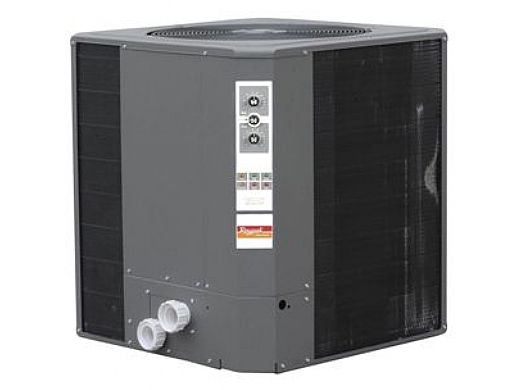

Every Raypak heat pump comes standard with a Titanium heat exchanger. The Classic Series heat pumps have been designed to meet the exacting needs of the pool and spa professional. Raypak offers a feature rich entry level heat pump, the Classic Series Analog, which provides rock solid performance at an affordable price.The Classic Series also offers a top of the line Digital product for the customer who demands the best.

Raypak is a proud member of AHRI and all Raypak heat pumps are AHRI listed. The Air-Conditioning, Heating, and Refrigeration Institute (AHRI) is the trade association representing manufacturers of air conditioning, heating and commercial refrigeration equipment.

In addition, all Raypak heat pumps meet the Florida 4.0 minimum C.O.P. Requirement. Raypak has been in the heating business for over 60 years. You can buy with confidence knowing that we are here for you today and will be there for you in the future. Step up to Raypak's superior customer service and stellar product performance. When you desire the best, you deserve a Raypak!

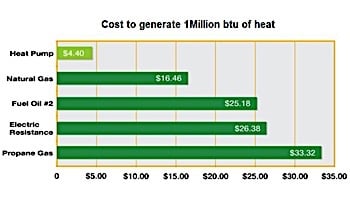

Who ever thought doing something good for the environment would also save you money? Its true! A Raypak heat pump is built with the latest eco-friendly R410A refrigerant that operates more efficiently than R-22. But the most amazing aspect of a heat pump pool heater is its operating efficiency compared to gas heaters. A heat pump operates at 5 to 6 times the efficiency of a standard gas, oil or electric pool heater. If you live in an area where your natural or propane gas costs have out-paced your electricity costs, the savings can be big. The chart illustrates just how much money can save using average energy cost data.

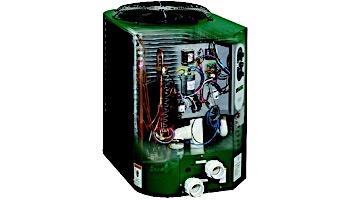

Cabinet
Exclusive DuraSteel Powder-Coated Cabinet. Polyester powder-coated, non-corrosive cabinet is more durable than plastic heat pump cabinets. Same rugged steel construction used by all the major air conditioner manufacturers.

Evaporator Coil
Large Air Coils, raised lanced-fin design maximizes heating at lower temperatures. Raypak engineered coils are highly optimized to meet our specific design requirements. From the proper fins per inch to advanced distribution circuiting. Raypak is the only heat pump pool heater company to actually manufacture our own coils.

Venturi Fan Cowling
High-capacity 3000-cfm fan provides unrestricted air flow for better heating. Precision engineered and manufactured cabinet design eliminates unwanted air gaps. This means more air over the coil which translates to greater efficiency.

Compressor
Scroll compressors are quiet and efficient compared to piston type compressors. They provide higher efficiency, lower sound levels, superior durability and unsurpassed reliability. The unique design of a scroll compressor actually wears in over time, not out!

Sound Isolation Pads
Prevents sound transfer to equipment pad and elevates the base pan to improve water drainage. Its the little details like this that make Rheem products stand out from the crowd.

Heat Exchanger
Spiral Titanium Tube
Our spiral titanium tube heat exchanger provides a corrosion-free waterway that can withstand the abuses of harsh pool chemistry. The spiral tube helps reduce deposit build-up and increases efficiency by performing a scoopand- lift action.
Internal Bypass Valving
Automatically compensates for normal day-to-day changes in your pools hydraulics, maximizing heat transfer efficiency.
Plumbing Connections

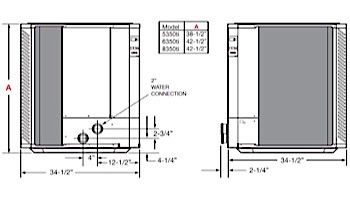

Off-set 2 PVC union connections are included for ease of installation.

Controls - Analog
Heat-Cool Selector Switch - Go from heat mode to cool with a push of a button.

Remote Compatible
The digital heat pump pool heater can be easily controlled by most two-wire and three-wire remote systems.

On Board Diagnostics
Tells the homeowner if there is a problem. Provides the service technician with detailed diagnostic information.

Features and details

• Excellent choice for pool and spa applications in normal to humid climates.

• The cost to generate 1 Million btu of heat costs around only $4.40

• Titanium Heat Exchanger. Water flow 25-80 Gallons Per Minute.

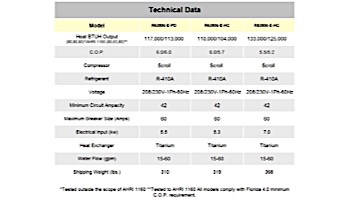

Specifications

BTU Rating

117K

Heat or Heat/Cool

Heat

Color

Black

Type

Analog

Resources

Brochure
Data Sheet
Installation Instructions
Illustrated Parts List
Heat Pump Sizing Tool

Warranty

Raypak, Inc. (“Raypak”) warrants to the original owner that the below model pool and spa heater (the “Heater”) when installed in the contiguous 48 states of the United States of America with a pool or spa by a properly licensed installer will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. The foregoing warranty will extend to subsequent owners solely as required by applicable state law. Under this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for any defective part of the HEATER. The repair or replacement will be warranted for only the unexpired portion of the original Applicable Warranty Period (as defined below). * THIS WARRANTY PERIOD IS NOT AVAILABLE FOR HEATERS INSTALLED ANYWHERE OTHER THAN A SINGLE-FAMILY RESIDENTIAL DWELLING, AS THIS HEATER IS NOT INTENDED FOR COMMERCIAL INSTALLATION.

Warranty Information
