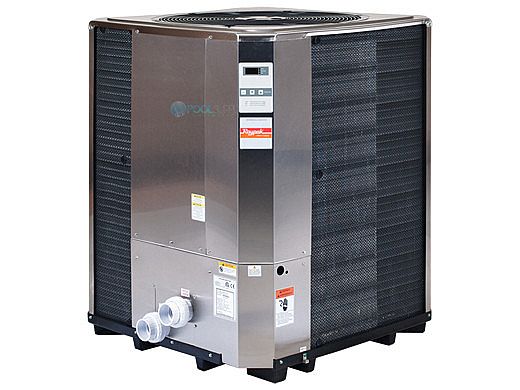

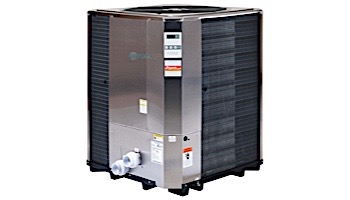

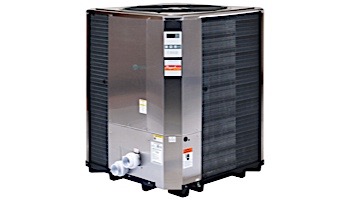

Quiet Technology™ Heat Pump
The Raypak Quiet Technology Series stainless steel heat pump is their premium series heat pump. It’s specifically designed to take a beating in rough coastal climates where salt air can shorten the life of most outdoor appliances, with sleek, appliance grade 304 brushed stainless steel that is so attractive, you won’t want to hide it behind your equipment wall. The unit also provides exceptional heating performance while operating at only 59dB sound level. For only a slight premium over a standard unit, you can have whisper quiet operation, outstanding weather protection and performance in a premium pool heater by Raypak. And because it’s a Raypak, you can rest assured that you made the right choice.
High efficiency never felt so good...
Whoever thought doing something good for the environment would also save you money? It’s true! A Raypak heat pump is built with the latest eco-friendly R410A refrigerant. But the most amazing aspect of a heat pump pool heater is its operating efficiency compared to gas heaters. A heat pump operates at 5 to 6 times the efficiency of a standard gas, oil or electric pool heater. If you live in an area where your natural or propane gas costs have outpaced your electricity costs, the savings can be big. The chart below illustrates just how much money can be saved using average energy cost data.
Cabinet
Evaporator Coils
- Large Air Coils
Raised lanced-fin design maximizes heating at lower temperatures. Raypak engineered coils are highly optimized to meet our specific design requirements. From the proper fins per inch to advanced distribution circuiting. We are the only heat pump pool heater company to actually manufacture our own coils.
Compressor
- Scroll Compressor with Cover
Scroll compressors are quiet and efficient compared to piston-type compressors. They provide higher efficiency, lower sound levels, superior durability and unsurpassed reliability, with an added cover to further reduce noise. The unique design of a scroll compressor actually wears in over time, not out!
Heat Exchanger
- Spiral Titanium Tube
Our spiral titanium-tube heat exchanger provides a corrosion-free waterway that can withstand the abuses of harsh pool chemistry. The spiral tube helps reduce deposit build-up and increases efficiency by performing a “scoop-and-lift” action.
- Internal Bypass Valving
Automatically compensates for normal day-to-day changes in your pool’s hydraulics, maximizing heat transfer efficiency.
- Plumbing Connections
Offset 2” PVC union connections are included for ease of installation.
Controls - Digital
- Pool/Spa Control
Your digital heat pump pool heater can be set to have a different target temperature for your pool and your spa. This allows you to dial in just the right spa temperatures and never have to adjust it again. The pool can be set to a lower, more energy saving temperature.
- Remote Compatible
The digital heat pump pool heater can be easily controlled by most two-wire and three-wire remote systems.
- On Board Diagnostics
Tells the homeowner if there is a problem. Provides the service technician with detailed diagnostic information.
