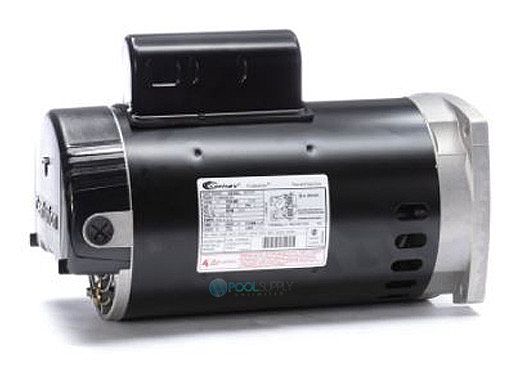

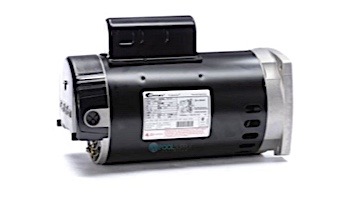

Regal Beloit Square Flange Motor 1.5HP Full Rate Energy Efficient | 208V/230V | B2842

$355.54

Pump Motors for Swimming Pools, Spas and Jetted Tubs

This motor is a quality product, proper installation and maintenance will assure long life, safe operation and dependable service.

Regal Beloit Motors Century E-Plus Square Flange Full-Rated Pool and Spa Pump Motor.

Features:

Open and accessible terminal board and wiring compartment
Voltage change device
Sealed ball bearings
50°C ambient
Stainless steel shaft
UL 1081 design
Switchless
Threaded shaft
Permanent split capacitor
Open drip proof

Nameplate Specifications:

Output HP 1.5 Hp
Output KW 1.1 kW
Frequency 60 Hz
Voltage 208-230 V
Current SF 9.6-8.8 A
Speed 3450 rpm
Service factor 1.47
Phase 1
Continuos duty
Insulation class F
Frame Y56Y
Enclosure drip proof
Overload protector thermally protected
Ambient temperature 50 deg C

Technical Specifications:

Electrical type permanent split capacitor, single or dual voltage
Poles 2
Rotation counterclockwise pump end (CCW Pump End)
Mounting round
Motor orientation horizontal
Drive end bearing ball
Opp drive end bearing ball
Frame material rolled steel
Shaft type threaded
Overall length 13.90 in
Frame length 9.50 in
Shaft diameter 0.625 in
Weight 35 lbs

Brand: Regal
