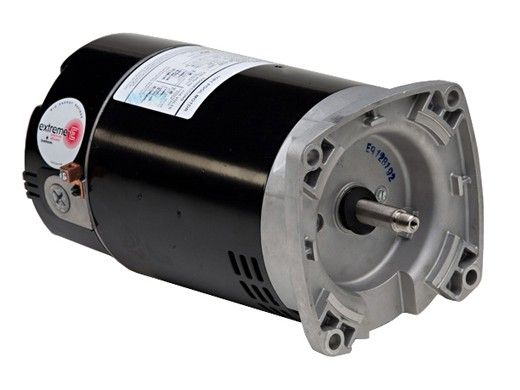

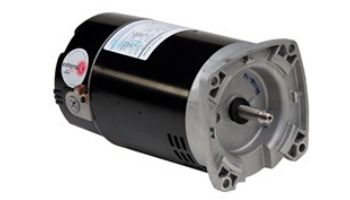

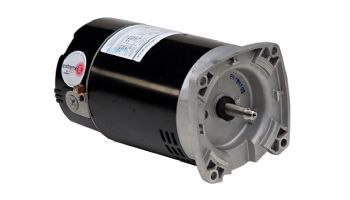

Home Pool Replacement Pump Motors Square Flange Motors Replacement Square Flange Pool & Spa 2-Speed Motor | .75HP Full-Rated/1HP Up-Rated | 56-Frame Energy Efficient | 230V | R0479306 | B2980 | ASB2980

Replacement Square Flange Pool & Spa 2-Speed Motor | .75HP Full-Rated/1HP Up-Rated | 56-Frame Energy Efficient | 230V | R0479306 | B2980 | ASB2980

$312.76
Replacement Square Flange Pool & Spa 2-Speed Motor | .75HP Full-Rated/1HP Up-Rated | 56-Frame Energy Efficient | 230V | R0479306 | B2980 | ASB2980
Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures.  Built-in, industry-leading features like angled terminal boards for convenient access...voltage selection with the flip of a switch...no-worry switches with no field adjustment needed...all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.

Motor Features
  • Two Compartment
  • Shaft Threads - (Square Flange) 1/2-20 UNC-2A or (C-Flange) 7/16-20 UNF-2A
  • 50°C Ambient
  • 1081 Design
  • Continuous Duty
  • Open Dripproof
  • Class B Insulated
  • 300 Series Stainless Steel Shaft
  • Thermally Protected
  • Discount symbol: DS-FPS
  • Frequency: 60
  • Length Less Shaft: 12.99
  • Weight: 30
Specifications:
Type Energy Efficient
Rating Total Horsepower Rated
Speed Two-Speed
Frame Size/Diameter 56Y
Enclosure Open Drip Proof
Phase Category Single
Voltage 230
Frequency 60 Hz
Amps 5.8/1.2
Service Factor
THP 1.25/0.20
RPM 3450/1725
Shaft Type Threaded
Rotation CCW Lead End
Mounting Square Flange

NOTE: Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.


Brand: US MOTORS
