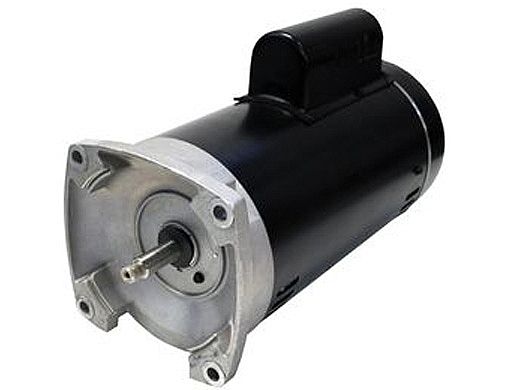

Replacement Square Flange Pool Motor .5HP | 115/208/230V 56 Frame Full-Rated Energy Efficient B845 | EB845 | ASB845

Replacement Square Flange Pool Motor .5HP | 115/208/230V 56 Frame Full-Rated Energy Efficient B845 | EB845 | ASB845
$178.29

Quantity:
Shipping Flat Rate Shipping $24.95
Platinum Preferred Manufacturer
  • Premium Energy Efficient, Full Service Factor
  • 6.5" Frame Diameter
  • Switchless Design
  • Suitable for 50Hz, 1.0 Service Factor

THIS ITEM IS A PART FOR THE FOLLOWING PRODUCTS

Jandy PlusHP Full Rate Pump | .5HP 115V/230V | PHPF.50
Jandy PlusHP Full Rate Pump - .5HP 115V/230V | PHPF.50
Replacement Parts

Hayward TriStar High Performance Energy Efficient Pump .5HP Full Rated | 115/230V | SP3205EE
Hayward TriStar Energy Efficient Pool Pump .5HP | SP3205EE
Replacement Parts

OVERVIEW
Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures.  Built-in, industry-leading features like angled terminal boards for convenient access...voltage selection with the flip of a switch...no-worry switches with no field adjustment needed...all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.

Motor Features:
  • Two Compartment
  • 1081 Design
  • Open Drip-Proof
  • 300 Series Stainless Steel Shaft
  • Shaft Threads - 1/2-20 UNF-2A
  • Voltage Selection Device (Dual Voltage Only)
  • Switchless Design
  • 6.5" Diameter Frame
  • Triple Bearing Protection
  • Continuous Duty
  • Sealed Ball Bearings
  • Class B Insulated
  • Thermally Protected
  • 50 Degree 'C' Ambient
  • Frequency: 60
  • Length Less Shaft: 11.49
  • Weight: 25



NOTE:  Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.


Brand: US MOTORS
SPECIFICATIONS
Horse Power
.5 HP
Speed
1 Speed
Voltage
115/208-230V
Flange
Square
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!
REVIEWS
5.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
0
0
0
0
Rated 5 out of 5
Great replacement
This is a great replacement for our .5 hp pump, the flange motor fit perfectly and it arrived on time.
January 7, 2014
RESOURCES
WARRANTY
U.S. MOTORS® Pool/Spa Warranty Period

U.S. MOTORS® provides a two-year warranty from date of manufacture or one year from date of installation - whichever occurs first.

Definition of Date Code: XA07X

First Character - X - This character represents possible plant codes that mean nothing to the manufacturing date (may or may not exist after 2008).

Second Character - A - This character represents the month in which the motor was built. The letter "I" is skipped in the alphabet.

A=January  B=February  C=March  D=April .... L=November  M=December

Third/Fourth Character - 07 - These characters represent the year the motor was built.

05=2005  06=2006  07=2007  08=2008 and so on

Fifth Character - X - This character represents possible plant codes that mean nothing to the manufacturing date.
