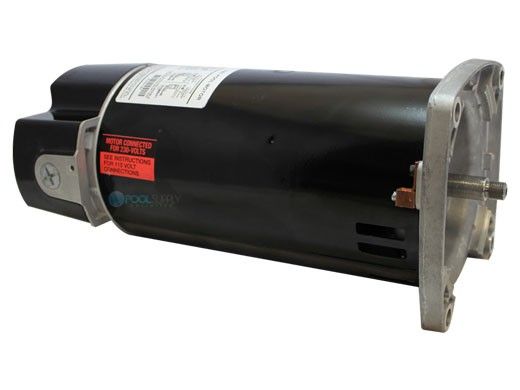

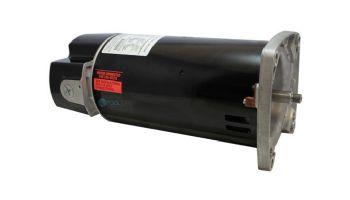

Home Replacement Square Flange Pool & Spa Motor | 1HP Full-Rated/1.5HP Up-Rated | 48 Frame Standard Efficiency | 115/230V | AE100EHL | 355023S | ESQ1102 | EUSQ1152 | SQ1102 | USQ1152 | HSQ165 | ASQ165
NOTICE: The Texas weather emergency in February, in addition to the ongoing demand increase for pool products from the Covid pandemic, have caused industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product arrives. Many times there are long shipping delays on the few products we do have in stock. Please contact us to ask about availability. Live Chat and email will get the quickest response.

Replacement Square Flange Pool & Spa Motor | 1HP Full-Rated/1.5HP Up-Rated | 48 Frame Standard Efficiency | 115/230V | AE100EHL | 355023S | ESQ1102 | EUSQ1152 | SQ1102 | USQ1152 | HSQ165 | ASQ165

Replacement Square Flange Pool & Spa Motor | 1HP Full-Rated/1.5HP Up-Rated | 48 Frame Standard Efficiency | 115/230V | AE100EHL | 355023S | ESQ1102 | EUSQ1152 | SQ1102 | USQ1152 | HSQ165 | ASQ165
$202.02

Quantity:
Shipping Flat Rate Shipping $24.95
Platinum Preferred Manufacturer
  • Standard Efficient
  • Switch Design
  • 5.5" Frame Diameter
  • Sealed Ball Bearings

THIS ITEM IS A PART FOR THE FOLLOWING PRODUCTS

Sta-Rite Max-E-Pro 1HP Standard Efficient Full Rated Pool Pump 115/230V | P6R6E-206L
Sta-Rite Max-E-Pro 1HP Standard Efficient Full Rated Pool Pump 115/230V | P6R6E-206L
Replacement Parts

Sta-Rite Max-E-Pro 1.5HP Standard Efficiency Up-Rated Pool Pump 115-230V | P6RA6F-206L
Sta-Rite Max-E-Pro 1.5HP Standard Efficiency Up-Rated Pool Pump 115/230V | P6RA6F-206L
Replacement Parts

OVERVIEW
Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures.  Built-in, industry-leading features like angled terminal boards for convenient access...voltage selection with the flip of a switch...no-worry switches with no field adjustment needed...all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.

Motor Features:
  • Two Compartment
  • Shaft Threads - 1/2-20 UNF-2A
  • 50 Degree 'C' Ambient
  • Triple Bearing Protection
  • 1081 Design
  • Continuous Duty
  • Open Drip-Proof
  • Sealed Ball Bearings
  • Thermally Protected
  • Class B Insulated
  • 300 Series Stainless Steel Shaft
  • Voltage Selection Device (Dual Voltage Only)
  • Frequency: 60
  • Length Less Shaft: 13.05
  • Weight: 27
Specifications:
Type Standard Efficient
Rating Total Horsepower Rated
Speed Single
Frame Size/Diameter 48Y
Enclosure Open Drip Proof
Phase Category Single
Voltage 115/230
Frequency 60 Hz
Amps 9.0/18.0
Service Factor
THP 1.65
RPM 3450
Shaft Type Threaded
Rotation CCW Drive End
Mounting Square Flange

NOTE: Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.


Brand: US MOTORS
SPECIFICATIONS
Horse Power
1 HP
Speed
1 Speed
Voltage
115V-230V
Flange
Square
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 1 question Browse 1 question
I have this motor -- I'm trying to figure out if it needs a new capacitor, but I can't remove the cover (after removing the 2 screws, the cover won't budge). Any advice?
Steven on Jul 9, 2017
REVIEWS
There are no reviews for this item. Write Review
RESOURCES
WARRANTY
U.S. MOTORS® Pool/Spa Warranty Period

U.S. MOTORS® provides a two-year warranty from date of manufacture or one year from date of installation - whichever occurs first.

Definition of Date Code: XA07X

First Character - X - This character represents possible plant codes that mean nothing to the manufacturing date (may or may not exist after 2008).

Second Character - A - This character represents the month in which the motor was built. The letter "I" is skipped in the alphabet.

A=January  B=February  C=March  D=April .... L=November  M=December

Third/Fourth Character - 07 - These characters represent the year the motor was built.

05=2005  06=2006  07=2007  08=2008 and so on

Fifth Character - X - This character represents possible plant codes that mean nothing to the manufacturing date.





 Adobe Acrobat PDF Warranty Information
