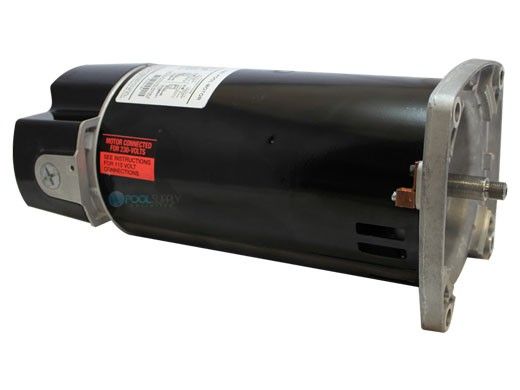

Home Replacement Square Flange Pool & Spa Motor | 2HP Full-Rated/2.5HP Up-Rated | 48 Frame Standard Efficient | 230V | AE100GHL | ESQ1202 | EUSQ1252 | SQ1202 | USQ1252 | HSQ260 | ASQ260

Replacement Square Flange Pool & Spa Motor | 2HP Full-Rated/2.5HP Up-Rated | 48 Frame Standard Efficient | 230V | AE100GHL | ESQ1202 | EUSQ1252 | SQ1202 | USQ1252 | HSQ260 | ASQ260

$422.41
Replacement Square Flange Pool & Spa Motor | 2HP Full-Rated/2.5HP Up-Rated | 48 Frame Standard Efficient | 230V | AE100GHL | ESQ1202 | EUSQ1252 | SQ1202 | USQ1252 | HSQ260 | ASQ260
Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures.  Built-in, industry-leading features like angled terminal boards for convenient access...voltage selection with the flip of a switch...no-worry switches with no field adjustment needed...all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.

Features
  • Two Compartment
  • Shaft Threads - 1/2-20 UNF-2A
  • 50°C Ambient
  • Triple Bearing Protection
  • 1081 Design
  • Continuous Duty
  • Open Dripproof
  • Sealed Ball Bearings
  • Thermally Protected
  • Class B Insulated
  • 300 Series Stainless Steel Shaft
  • Voltage Selection Device (Dual Voltage Only)
  • Discount symbol: DS-FPS
Specifications:
Type Standard Efficient
Rating Total Horsepower Rated
Speed Single
Frame Size/Diameter 48Y
Enclosure Open Drip Proof
Phase Category Single
Voltage 230
Frequency 60 Hz
Amps 11.2
Service Factor
THP 2.60
RPM 3450
Shaft Type Threaded
Rotation CCW Drive End
Mounting Square Flange

NOTE: Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.


Brand: US MOTORS
