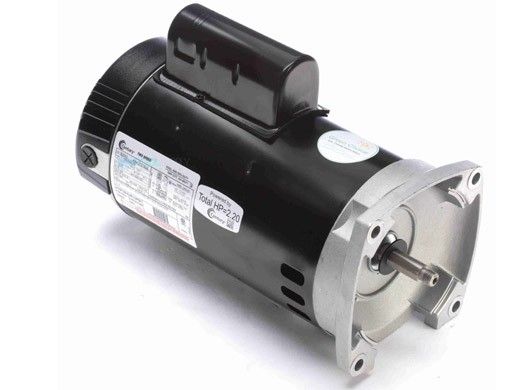

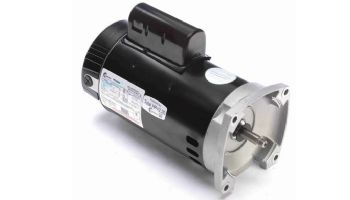

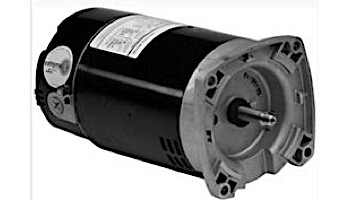

Home Replacement Square Flange Pool & Spa Motor | 1.5HP Energy Efficient 2-Speed | 56 Frame Full-Rated | 230V | B2983 | EB2983
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. ... We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

Replacement Square Flange Pool & Spa Motor | 1.5HP Energy Efficient 2-Speed | 56 Frame Full-Rated | 230V | B2983 | EB2983

$457.94
Replacement Square Flange Pool & Spa Motor | 1.5HP Energy Efficient 2-Speed | 56 Frame Full-Rated |  230V | B2983 | EB2983
Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures.  Built-in, industry-leading features like angled terminal boards for convenient access...voltage selection with the flip of a switch...no-worry switches with no field adjustment needed...all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.

Motor Features:
  • Two Compartment
  • Shaft Threads - (Square Flange) 1/2-20 UNC-2A or (C-Flange) 7/16-20 UNF-2A
  • 50 Degree 'C' Ambient
  • Triple Bearing Protection
  • 1081 Design
  • Continuous Duty
  • Open Drip-Proof
  • Class B Insulated
  • Sealed Ball Bearings
  • 300 Series Stainless Steel Shaft
  • Switchless Design
  • Thermally Protected
  • Frequency: 60
  • Length Less Shaft: 12.55
  • Weight: 34



NOTE:  Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.


U.S. MOTORS® Pool/Spa Warranty Period

U.S. MOTORS® provides a two-year warranty from date of manufacture or one year from date of installation - whichever occurs first.

Definition of Date Code
XA07X
First Character - X - This character represents possible plant codes that mean nothing to the manufacturing date (may or may not exist after 2008).

Second Character
- A - This character represents the month in which the motor was built. The letter "I" is skipped in the alphabet.
A=January  B=February  C=March  D=April .... L=November  M=December

Third/Fourth Character - 07 - These characters represent the year the motor was built.
05=2005  06=2006  07=2007  08=2008 ....

Fifth Character - X - This character represents possible plant codes that mean nothing to the manufacturing date.


Brand: A.O. Smith
