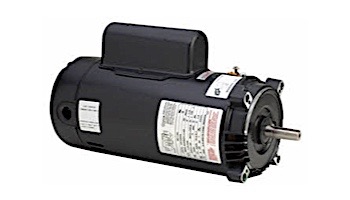

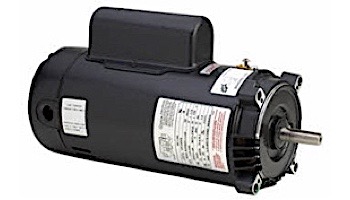

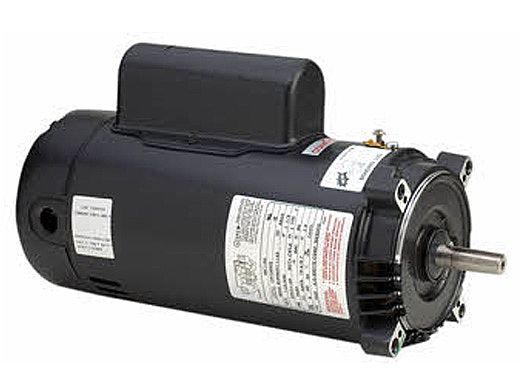

Replacement Keyed Shaft Pool Motor .5HP | 115/230V 56 Round Frame Full-Rated B120 | EB120

Replacement Keyed Shaft Pool Motor .5HP | 115/230V 56 Round Frame Full-Rated B120 | EB120
$140.79

Quantity:
Shipping Flat Rate Shipping $24.95
  • Standard Efficient, Full Service Factor
  • Switchless Design
  • 6.5" Frame Diameter
OVERVIEW
Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures.  Built-in, industry-leading features like angled terminal boards for convenient access...voltage selection with the flip of a switch...no-worry switches with no field adjustment needed...all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.

Motor Features:
  • Two Compartment
  • Shaft Threads - 7/16-20 UNF-2A
  • 50 Degree 'C' Ambient
  • Triple Bearing Protection
  • 1081 Design
  • Continuous Duty
  • Class B Insulated
  • Open Drip-Proof
  • Sealed Ball Bearings
  • 300 Series Stainless Steel Shaft
  • Thermally Protected
  • 6.5" Diameter Frame
  • Switchless Design
  • Voltage Selection Device (Dual Voltage Only)
  • Frequency: 60
  • Length Less Shaft: 10.27
  • Weight: 21



NOTE:  Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.


U.S. MOTORS® Pool/Spa Warranty Period

U.S. MOTORS® provides a two-year warranty from date of manufacture or one year from date of installation - whichever occurs first.

Definition of Date Code
XA07X
First Character - X - This character represents possible plant codes that mean nothing to the manufacturing date (may or may not exist after 2008).

Second Character
- A - This character represents the month in which the motor was built. The letter "I" is skipped in the alphabet.
A=January  B=February  C=March  D=April .... L=November  M=December

Third/Fourth Character - 07 - These characters represent the year the motor was built.
05=2005  06=2006  07=2007  08=2008 ....

Fifth Character - X - This character represents possible plant codes that mean nothing to the manufacturing date.



Brand: EMERSON
