Replacement Square Flange Variable Speed Pool & Spa TEFC Motor | 2HP Energy Efficient | 48 Frame Full-Rated | 230V | R0562201 | NPTQ225

Call us to order.
Replacement Square Flange Variable Speed Pool & Spa TEFC Motor | 2HP Energy Efficient | 48 Frame Full-Rated | 230V | R0562201 | NPTQ225

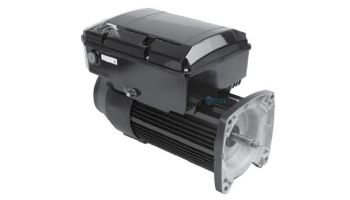

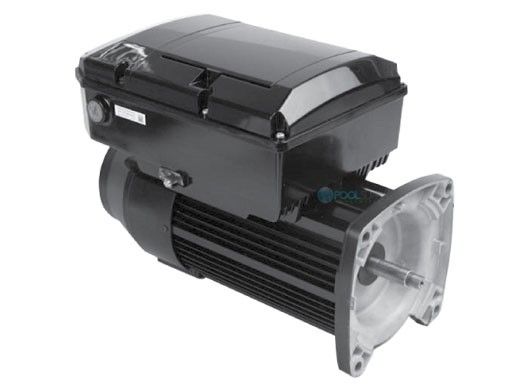

The Neptune™ variable speed pool pump motor is a premium efficient product that includes a fully integrated motor, control and user interface (UI). This U.S. MOTORS® product gives you programming flexibility and speed range capability. It is also designed to communicate and operate with a variety of external system controllers in addition to the onboard UI.

Features:
  • Fully Integrated Variable Speed Motor & Control
  • Brushless Permanent Magnet (BPM) Motor
  • Proposed DOE Law & CEC Title 20 Compliant
  • Dual Voltage 1.25THP & 1.65THP Models
  • TEFC - IPX5 Enclosure
  • Shaft Threads - (Square Flange) 1/2-20 UNC-2A or (C-Flange) 7/16-20 UNF-2A
  • 50°C Ambient
  • Triple Bearing Protection
  • 1081 Design
  • Continuous Duty
  • Class B Insulated
  • Sealed Ball Bearings
  • 80%+ Motor & Control Efficiency @ Full Speed
  • 300 Series Stainless Steel Shaft
  • Speed Range: 600-3450 RPM
  • Low Temperature Monitor
  • Discount Symbol: DS-FPS
  • Finned Aluminum Enclosure
  • Fully Functional User Interface
  • Modbus & Low Voltage Connection to Pool Control Systems
  • Up to Seven Daily Schedules Can Be Programmed
  • Adjustable Priming Time & Speed
  • Menu Keypad Lockout
  • Designed For Quiet Operation
  • Simple "Drop In" installation with No Complex Wiring
  • Factory Programmed Schedule Settings to Meet the Proposed DOE Law & the CEC Title 20 Rule
  • Ability to communicate with pool control systems
Specifications:
Type Energy Efficienct
Rating Full-Rated
Speed Variable Speed
Frame Size/Diameter 48Y
Enclosure TEFC-IPX5
Phase Category Single
Voltage 230
Frequency 50/60 Hz
Amps 13.2/7.7
HP 2
Service Factor 1.00
THP 2.25
RPM 600-3450
Shaft Type Threaded
Mounting Square Flange

NOTE: Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.


Brand: US MOTORS
