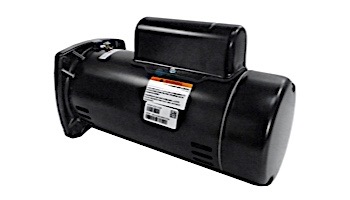

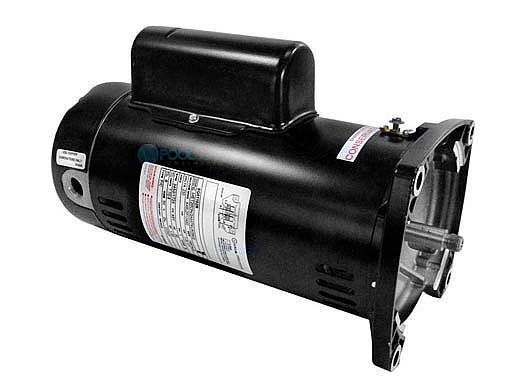

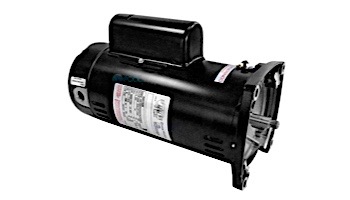

Two Compartment Square Flange Pool Motor - Two Speed
Features
- All Copper Windings
- Auto Protector - Single Phase
- Open Dripproof
- Rotation: CCW Pump End
- Class B Insulation
- 50°C Ambient
- UL1081
- 60 Hz
- 303 Stainless Steel Threaded Shaft
- Energy Efficient Capacitor Start Low Speed, PSC High Speed
Two-speed motors are shipped less hi/lo switch for remote operation.
End cover and switch assembly kit number 615332 available and sold separately.
Specifications:
HP: |
1.0/.17 HP |
Energy Efficiency: |
Standard |
Frame: |
48Y |
Enclosure: |
Open Drip Proof |
Phase: |
1 |
Voltage: |
230V |
Frequency: |
60 Hz |
Speed: |
2-Speed |
RPM: |
3450/1725 |
Rating: |
Full-Rated, F/C |
Service Factor: |
1.9 |
THP: |
1.65 |
Shaft Type: |
Threaded |
Mounting: |

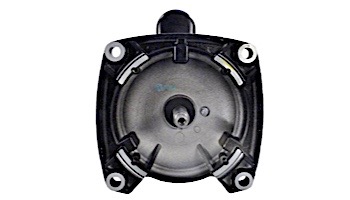

Square Flange |
Electrical Type: |
Psc Low Speed, Cap Start High Speed |
