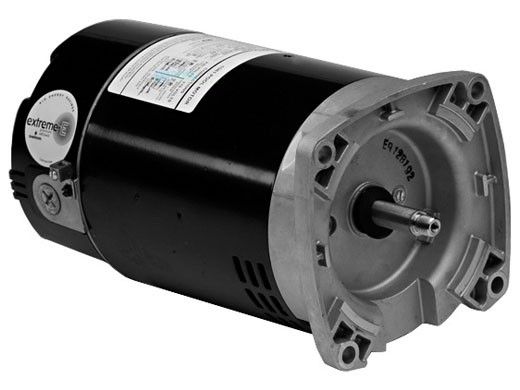

Home Replacement Square Flange Pool & Spa Motor 2HP | 230V 56 Frame Full-Rated Open Dripproof | Two Speed with Timer | ASB2984T

Replacement Square Flange Pool & Spa Motor 2HP | 230V 56 Frame Full-Rated Open Dripproof | Two Speed with Timer | ASB2984T

$566.48
Replacement Square Flange Pool & Spa Motor 2HP | 230V 56 Frame Full-Rated Open Dripproof | Two Speed with Timer | ASB2984T
Motor Features:
  • Ambient Temperature - 50 deg C
  • Bearing Type - Sealed ball
  • Duty Cycle - Continuous
  • Enclosure Design - Open dripproof
  • Frame - 56Y
  • Frequency Rating - 60 Hz
  • Full Load Amps - 10.6 / 2.4 A
  • HP Rating - 2 / .33
  • Insulation Class - B
  • Pool & spa motor
  • Length Less Shaft - 13.3"
  • Motor Shaft Rotation - CW
  • Motor Thermal Protection - Automatic reset
  • Mounting Type - Square flange
  • Number of Speed - 2
  • Overall Length - 14.96"
  • Phase - 1
  • RPM - 3450 / 1725
  • Series - Category S
  • Service Factor - 1.3
  • Shaft Design - Threaded
  • Shaft Diameter - 0.625"
  • Shaft Length - 0.406"
  • Shaft Material - 303 stainless steel
  • Type FHP, switchless design, full rated
  • Voltage Rating - 230 V





Brand: US MOTORS
