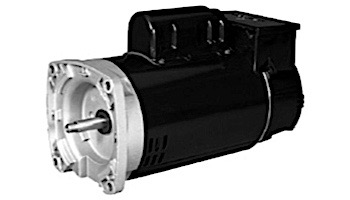

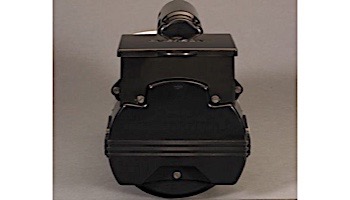

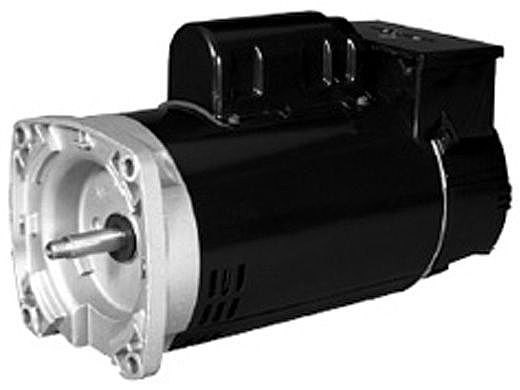

This motor and timer is an easy-to-install two-speed pool pump motor with an integrated programmable timer, designed to achieve maximum energy efficiency and utility dollar savings.
Drop-in design allows for fast replacement of your existing pool motor.
Supplied with default speed settings - Just set the time and day of the week and the timer does the rest! To customize your speed settings, provide on and off times for Low and High speeds.

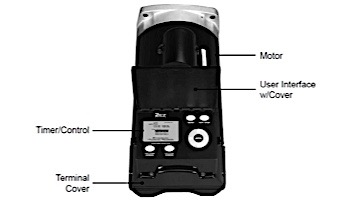

The timer mounted on the motor makes it easy to program operating times and flow rates for maximum energy savings.
- Two Compartment

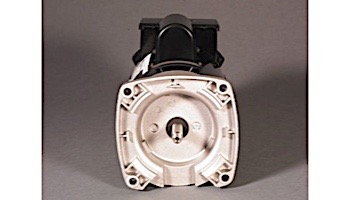

- Shaft Threads - (Square Flange) 1/2-20 UNC-2A or (C-Flange) 7/16-20 UNF-2A
- 50 Degree 'C' Ambient
- Triple Bearing Protection
- 1081 Design
- Continuous Duty
- Class B Insulated
- Open Drip-Proof
- Sealed Ball Bearings
- Switchless Design
- 303 Stainless Steel Shaft
- Thermally Protected
- 6.5" Diameter Frame
- Fully Integrated Motor Control
- Program for Low & High Speeds
- Two Settings - Mon-Fri & Sat/Sun
- High/Low Speed Override
- Freeze Sensor
- Single Phase Motor
- Meets Title 20 Legislation
- Frequency: 60
- Length Less Shaft: 13.30
- Weight: 39
NOTE: Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.
U.S. MOTORS® Pool/Spa Warranty Period
U.S. MOTORS® provides a two-year warranty from date of manufacture or one year from date of installation - whichever occurs first.
Definition of Date Code
First Character - X - This character represents possible plant codes that mean nothing to the manufacturing date (may or may not exist after 2008).
Second Character - A - This character represents the month in which the motor was built. The letter "I" is skipped in the alphabet.
A=January B=February C=March D=April .... L=November M=December
Third/Fourth Character - 07 - These characters represent the year the motor was built.
05=2005 06=2006 07=2007 08=2008 ....
Fifth Character - X - This character represents possible plant codes that mean nothing to the manufacturing date.
